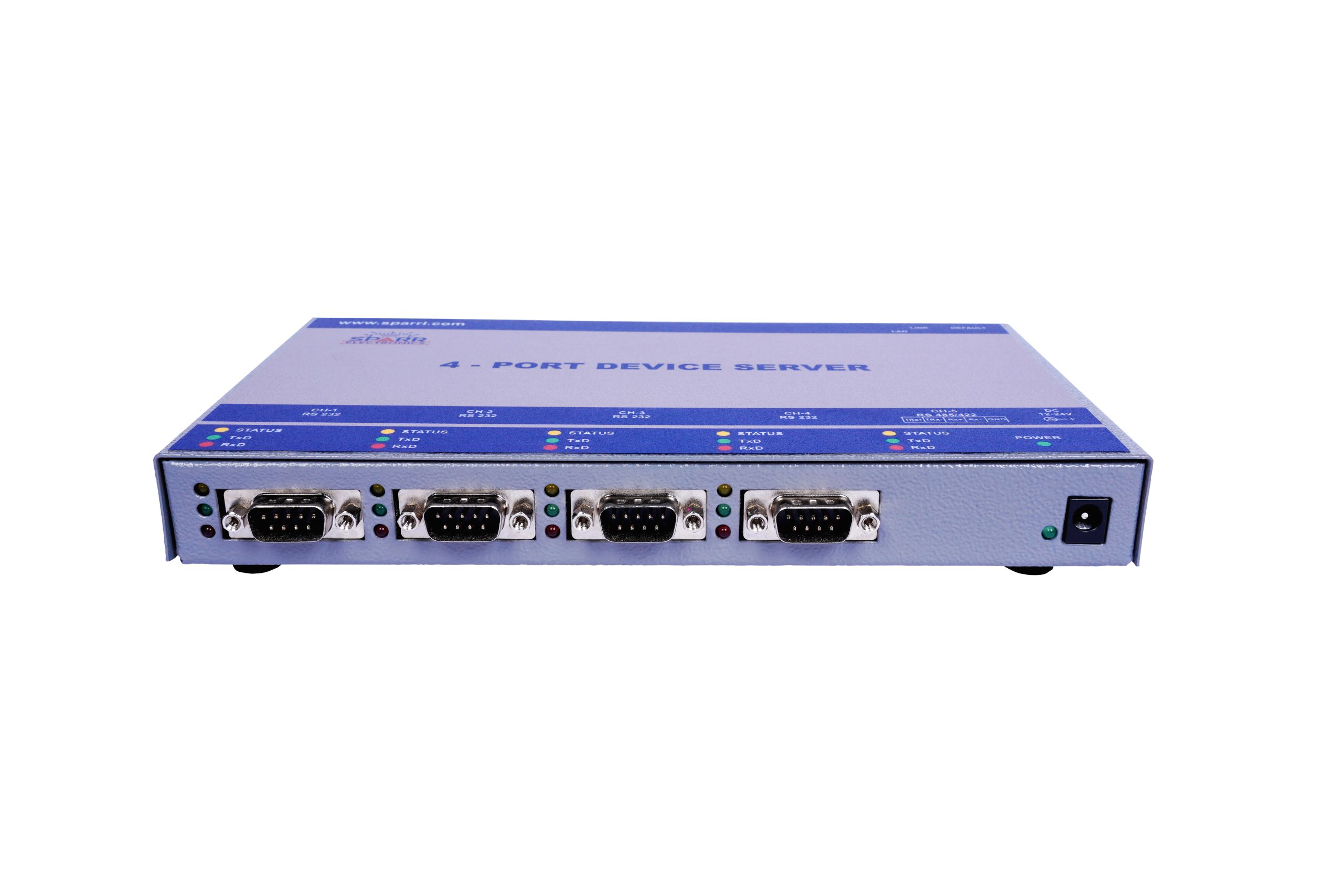

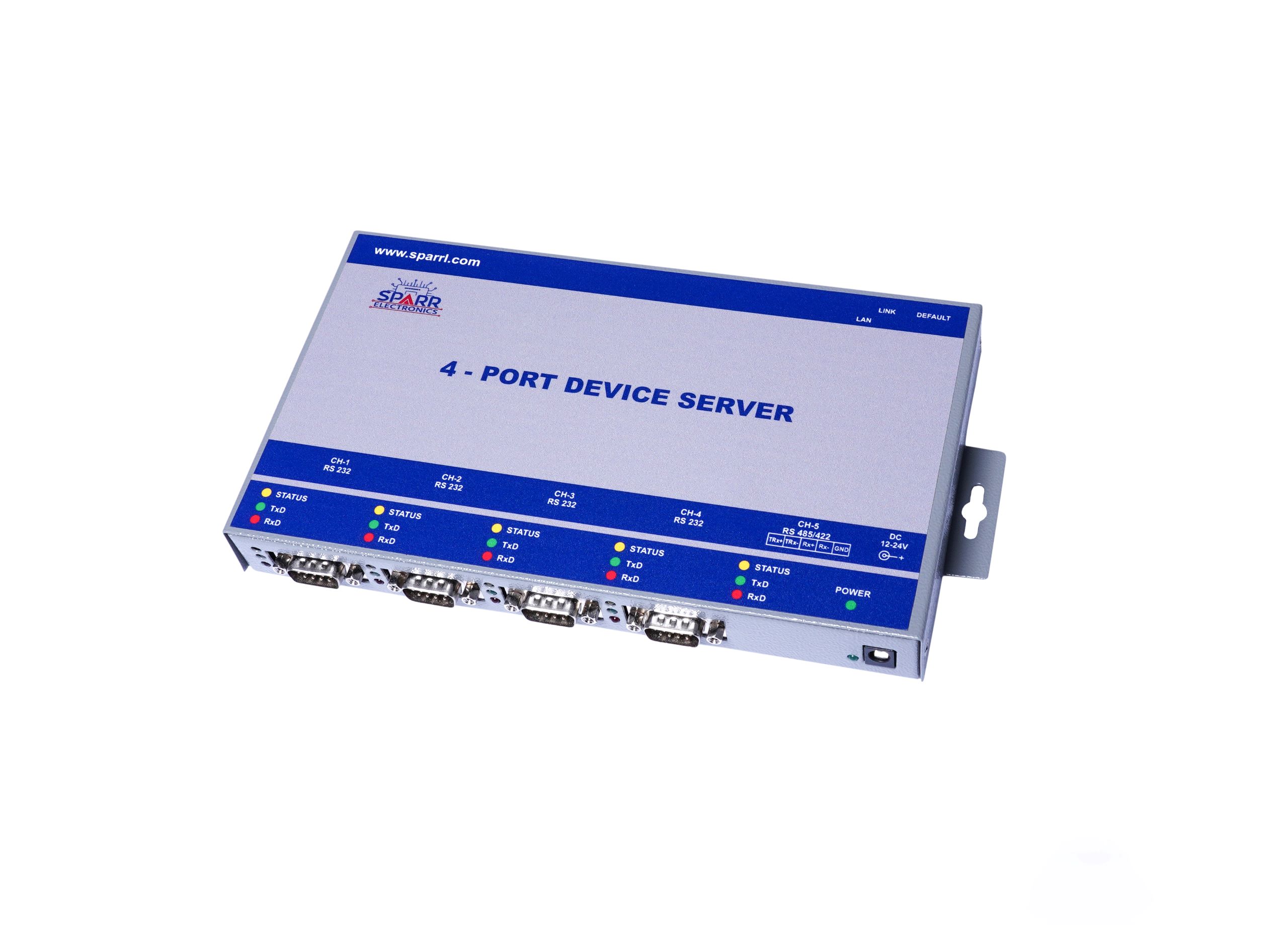

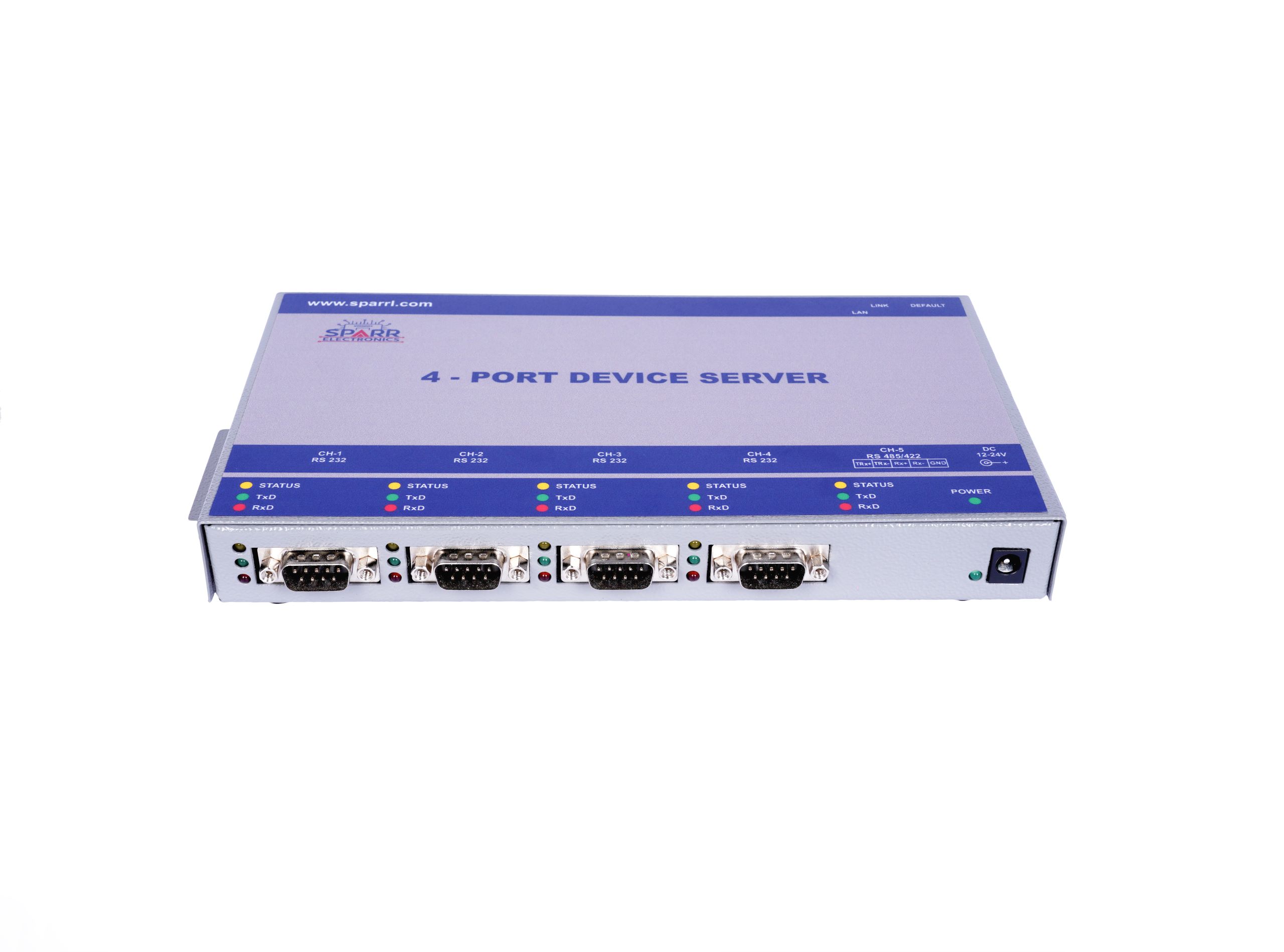

The 4-Port Device Server allows multiple serial devices to connect to an Ethernet network for remote monitoring and control. Supporting RS232, RS485, and RS422 interfaces, it ensures reliable data transmission over TCP/IP. Designed for industrial and automation environments, it offers robust performance and easy web-based configuration.
| Serial Interface | - |
|---|---|
| Interface | 4 Port RS 232, 1 Port RS 485/422 |
| Connectors | Db9 Male for RS 232, Screw type connectors for RS 485/422 |
| Baud Rates | 300 to 115200bps |
| Data Bits | 7 or 8 |
| Parity | Odd, Even and No Parity |
| Stop Bit | 1 or 2 |
| Flow Control | None, XON/XOFF & RTS/CTS |
| Network Interface | - |
| Interface | Ethernet 10 Base-T or 100 Base-TX Connector |
| Protocols | TCP, UDP, ARP, ICMP, MAC, Telnet, DHCP and HTTP. SNMP & MODBUS (Optional) |
| Connectors | RJ 45 Female |
| RS 485 / 422 | - |
| Maximum No. of nodes | 32 |
| Maximum Cable Length | 1200 m |
| Isolation | >2500 Vrms |
| Processor | - |
| CPU | ARM Cortex M4 |
| Memory | 1MB |
| Indicators (LED) | - |
| Power (ON) | Green |
| Connection Status | Yellow |
| Transmit Data | Green |
| Receive Data | Red |
| Power | - |
| Input Voltage | 12V DC External Adaptor |
| Environmental | - |
| Operating | 0 u00b0C to 55 u00b0C |
| Storage | -4 u00b0C to 66 u00b0C |
| Packaging | - |
| Dimensions (LxWxH) | 251 mm (L) x 136 mm (W) x 28 mm (H) |
| Weight | 650g |
| Warranty | 12 Month |
| Part Number | Part Name | Part Description | Contact |
|---|---|---|---|
| 2766058152 | 4 Port Device Server MB | UNIT WITH 12V ADAPTOR |
