RS485 Modbus to RS232 Modbus Address & ID Mapping

The Multiport Protocol Converter is designed to ensure reliable and stable serial communication between devices operating on different interface standards. It provides seamless data transmission over extended distances while maintaining signal integrity in electrically noisy environments. The compact standalone design allows easy installation in control panels or field applications. With built-in isolation and protection, the converter enhances system safety and operational reliability. It is well suited for industrial automation, monitoring, and control systems.`

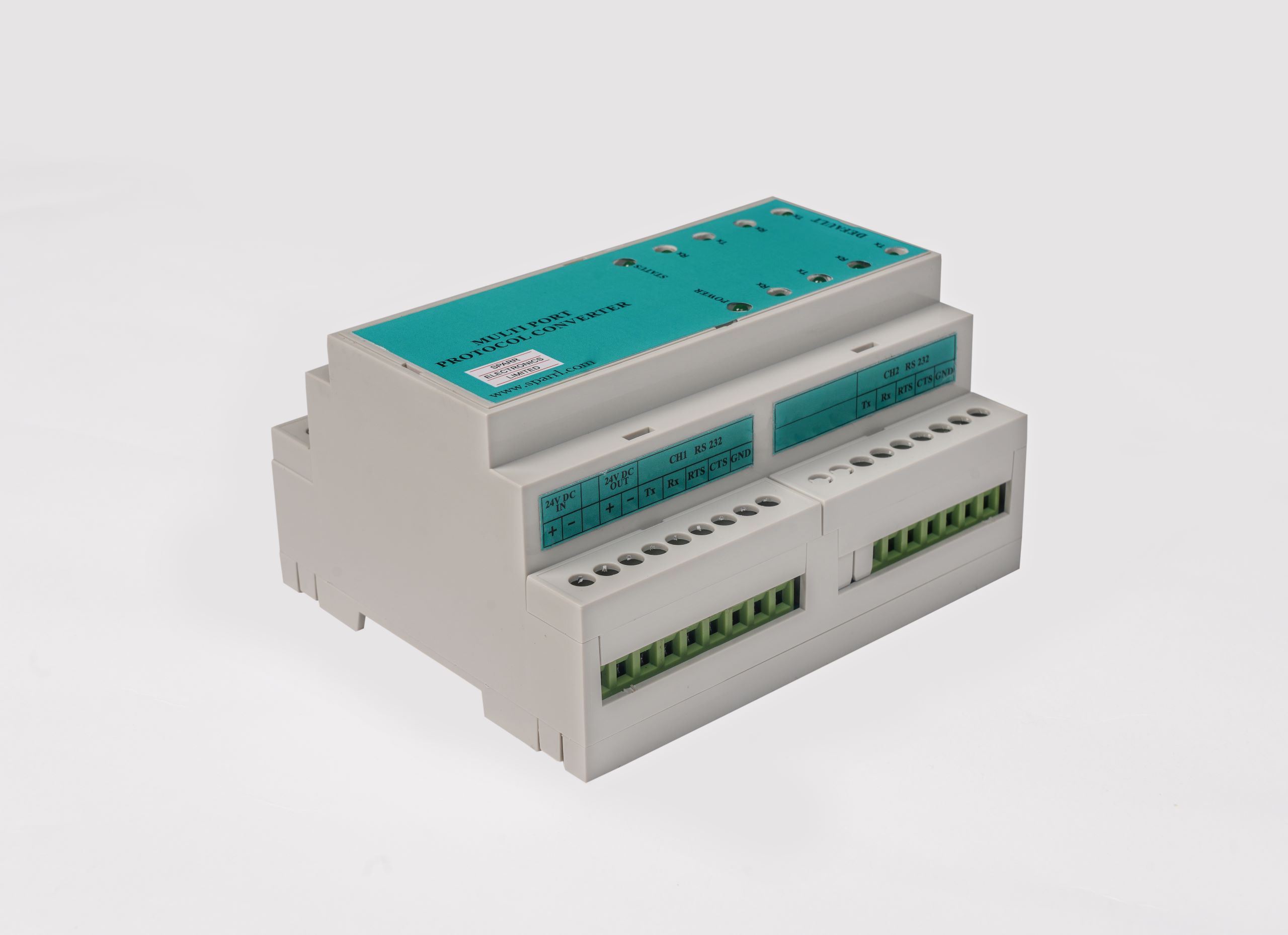

The Multiport Protocol Converter Converts RS-232 serial communication to RS-485 or RS-422 for long-distance data transmission
Enables easy interfacing with devices supporting RS-485 / RS-422 communication ports
Designed as a compact external standalone unit enclosed in a durable plastic casing
Powered using the supplied external power adaptor
Built with high-quality surface-mount components for improved reliability and portability
Provides optical isolation for data signals to ensure safe and stable communication
Offers serial port protection against high-voltage surges up to 1500 VA from the RS-485/RS-422 side
Suitable for industrial automation, remote monitoring, and noise-prone environments

Interface	-
Serial	RS232, RS485
Connector	DB9-Type Female to DTE side,DB9- Type Male to DCE side,5 way screw terminal
RS485 isolation	Signals and Power Isolated
Isolation	1500 Vrms
Baud Rate	300 to 115200 baud
Indicators (LED)	-
Power	Red
Status	Yellow
RX	Yellow
TX	Red
Power	-
Input	12-24 VDC . 12V External Adaptor Provided.
Environmental	-
Operating	0 u00b0C to 70 u00b0C
Storage	-40 u00b0C to 85 u00b0C
Packaging	-
Dimensions (LxWxH)	106mm(L) x 90mm(W) x 58mm(H)
Weight	89g
Warranty	12 Months
