Ethernet Adpators Two Port
Click to enlarge

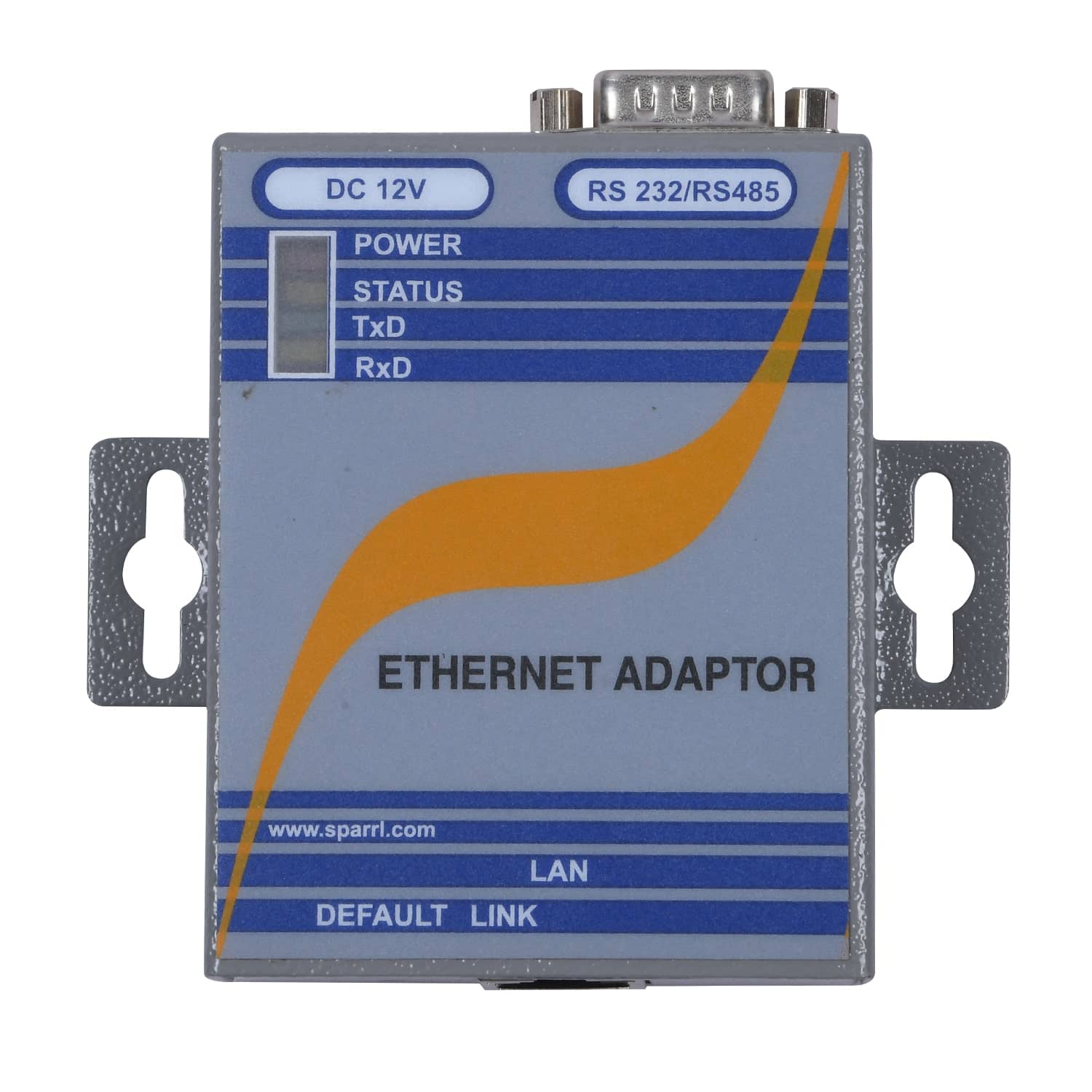

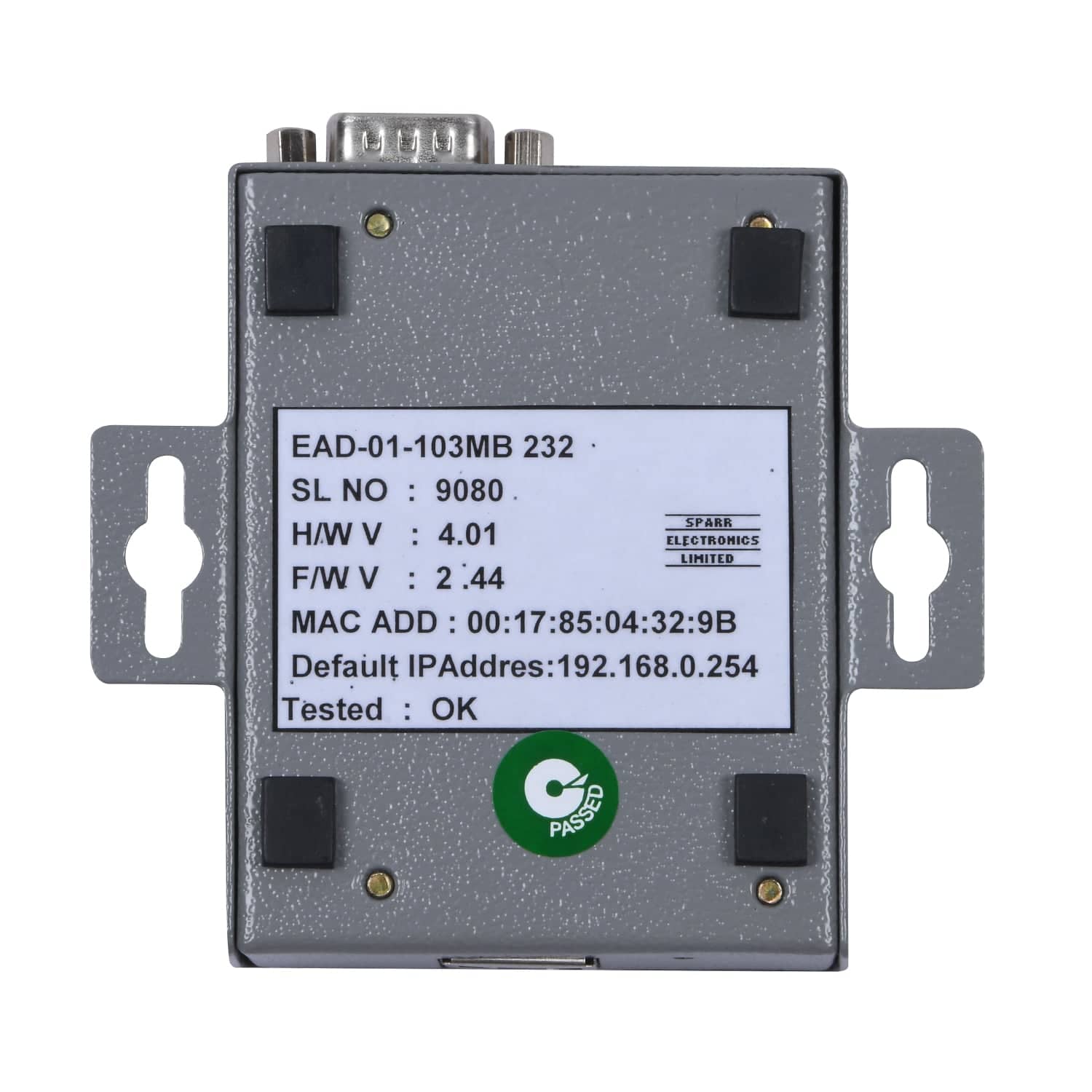

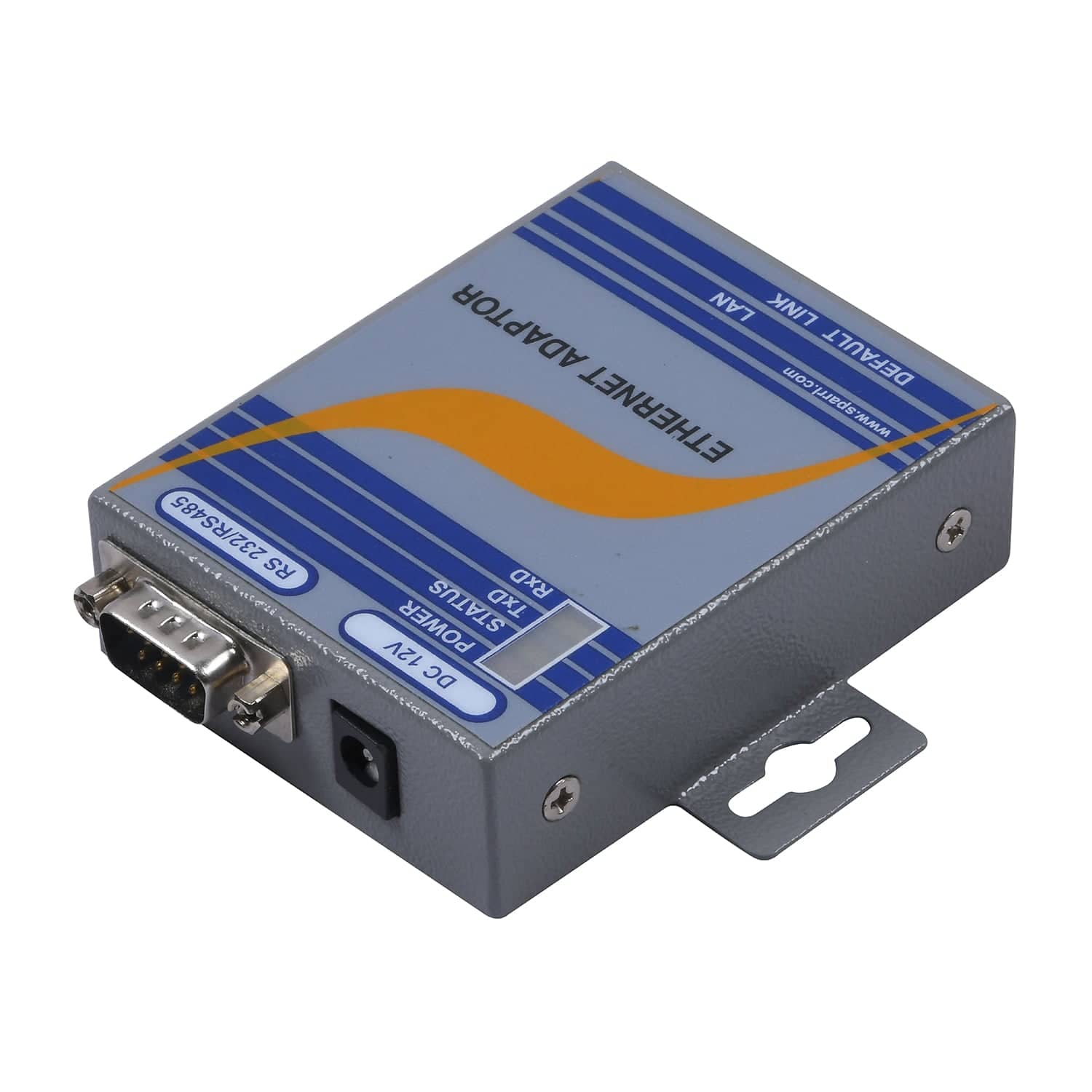

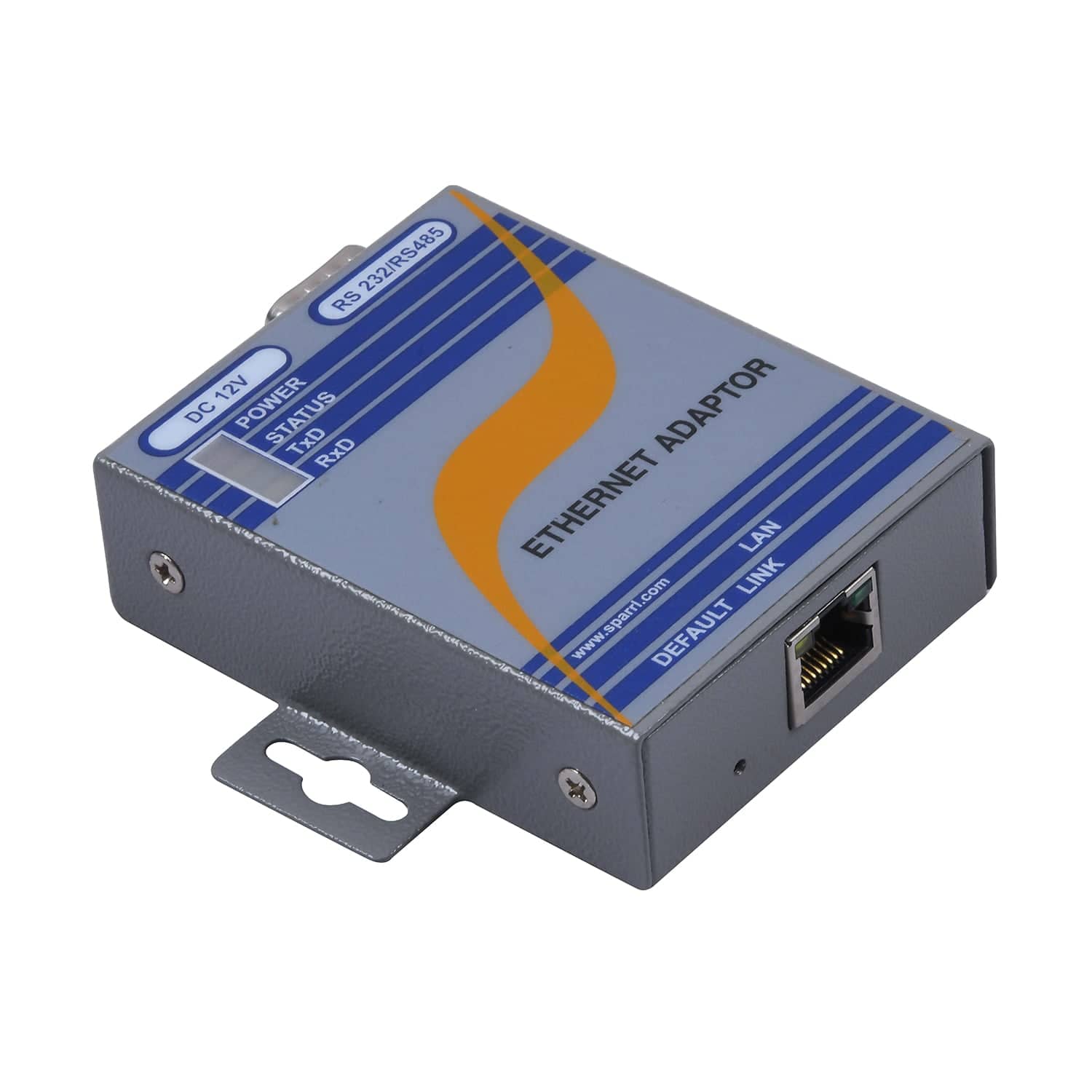

Ethernet Adaptors

EAD is a protocol converter which transmits the serial Data sent by the Equipment as TCP packets to the LAN/Network and converts back to TCP/IP data received from the LAN/ Network as Serial Data to the equipment . EAD also supports UDP Protocol for Broadcast application.

Get Quote
DataSheet

Features & Compatibility

• EAD is a protocol converter which transmits the serial Data sent by the Equipment as TCP packets to the LAN/Network and converts back to TCP/IP data received from the LAN/
Network as Serial Data to the equipment . EAD also supports UDP Protocol for Broadcast application.
• EAD-01 is a low-cost, High performance, Serial RS-232 / RS-485 / RS-422 to Ethernet LAN 10/100 Mbps connectivity system using the TCP / IP protocol and is based on ARM Cortex
M4 high speed 32-Bit Microprocessor. EAD-01 has built-in web server for configuration.

Specifications

NameSpecification

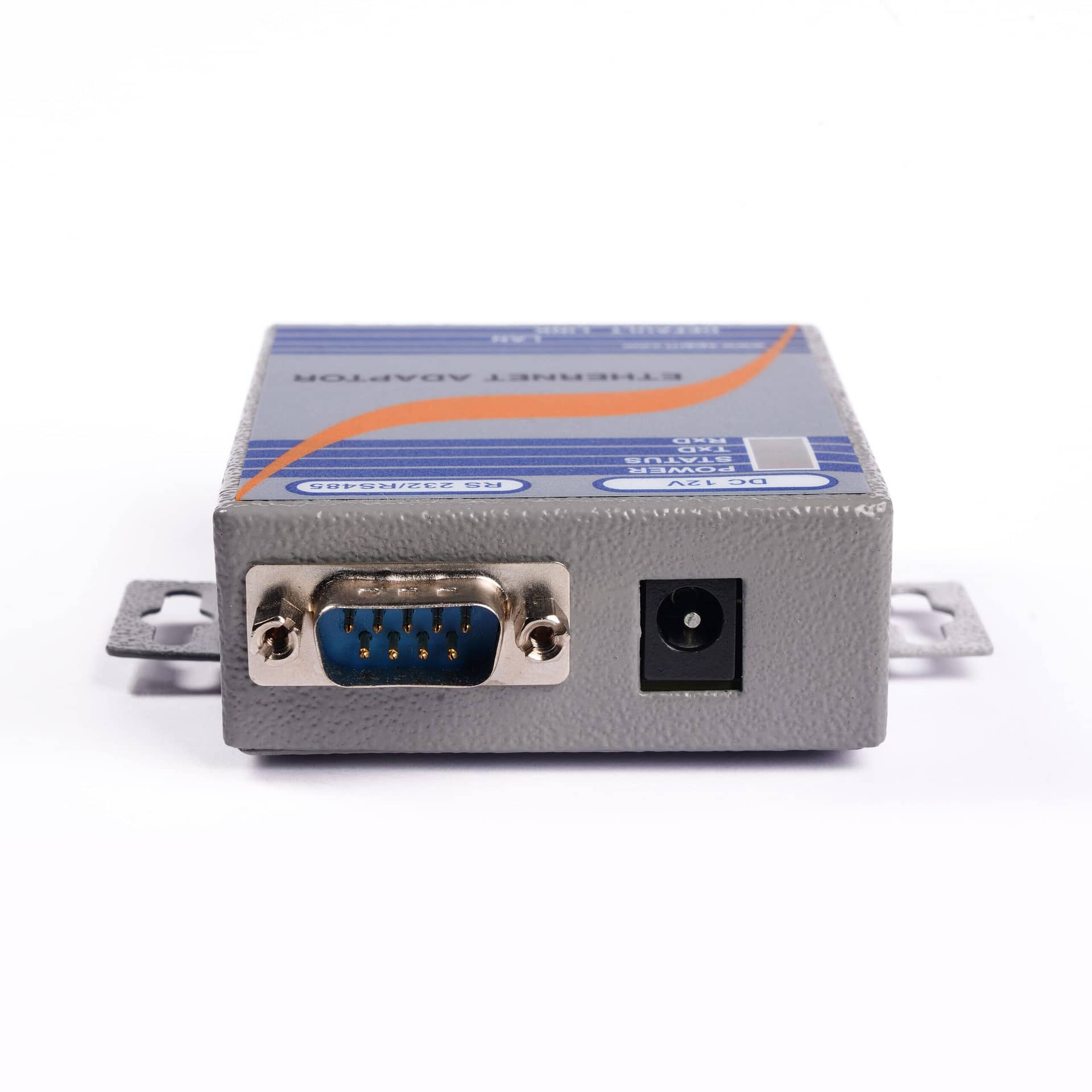

Serial Interface
InterfaceRS 232, RS 485/RS 422
Connectors9 Pin Male D-Type for RS232,RS-485 & RS-422
Data Rates300 to 115200bps
Data Bits7 or 8
ParityOdd, Even and No parity
Stop Bits1 or 2
Flow ControlNone, XON/XOFF & RTS/CTS

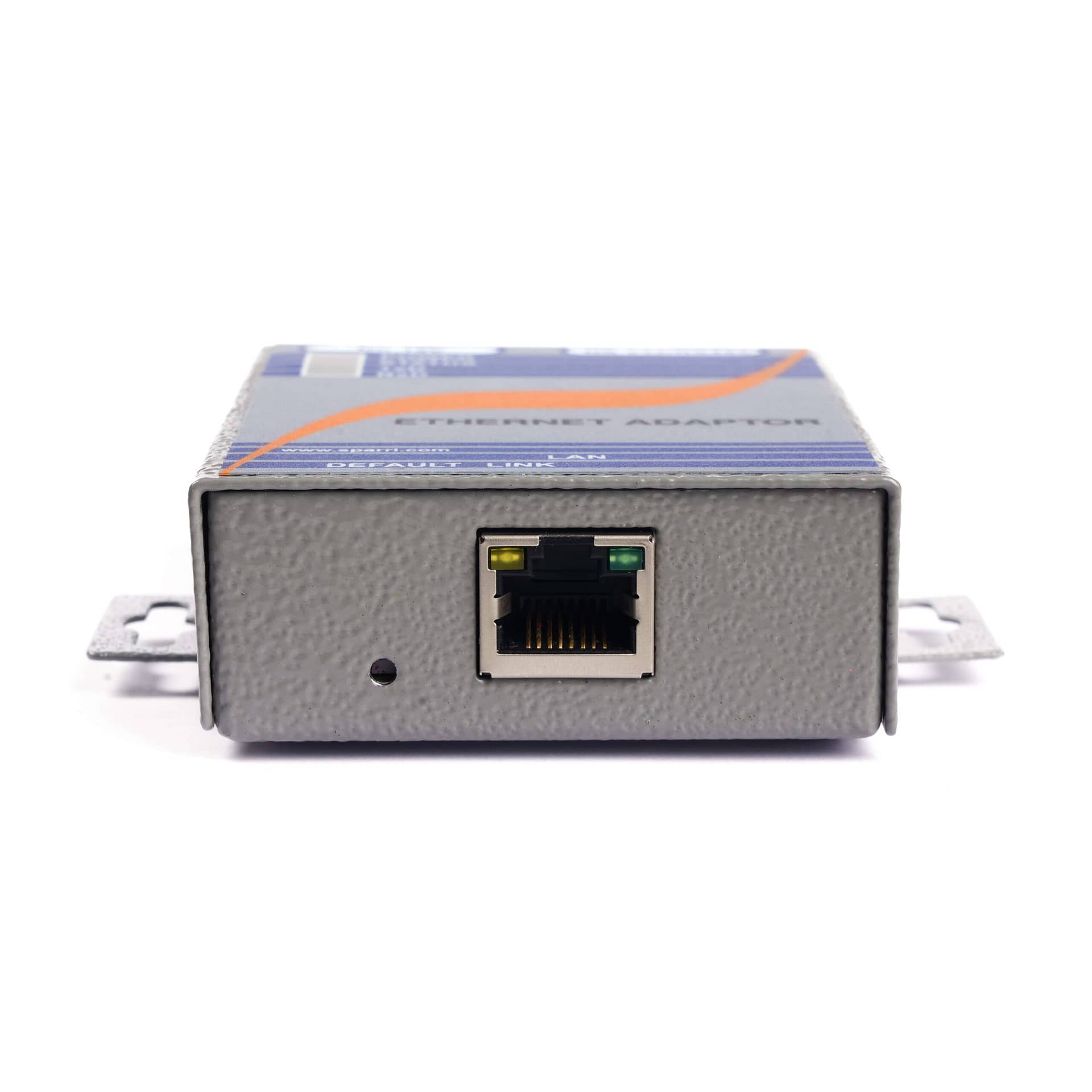

Network Interface
InterfaceEthernet 10 Base-T or 100 Base-TX Connector
ConnectorsRJ 45 Female
ProtocolsTCP,UPD,ARP,ICMP,MAC,TELNET,DHCP & HTTP. SNMP & MODBUS (Optional)
Indicators (LED)
REDPower ON
YELLOWConnection Status
GREENTransmit Data from Serial
YELLOWReceive Data to Serial
Processor
CPUARM Cortex M4
Memory1MB

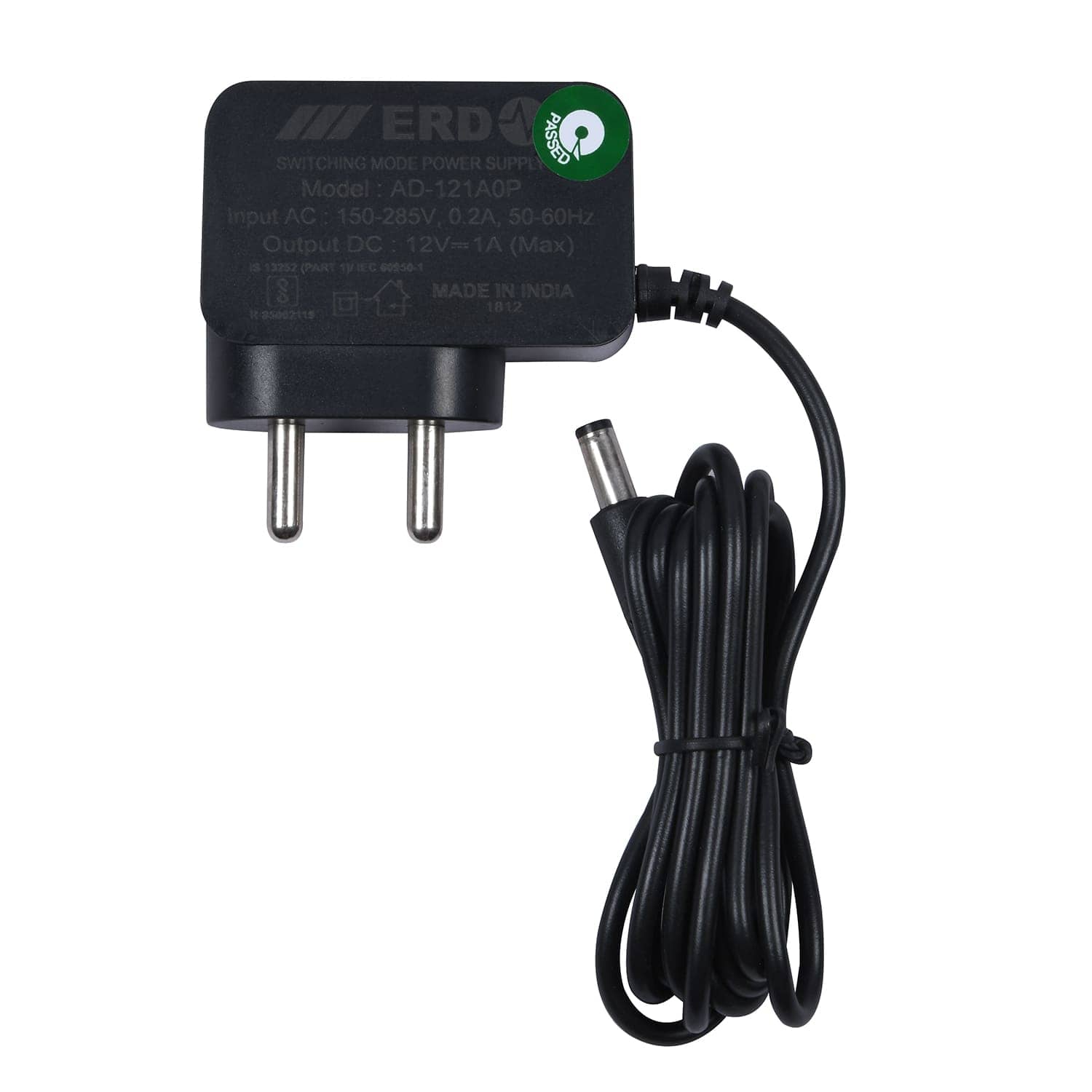

Power
Input5 to 24 V DC
RS 485 / 422
Maximum No of nodes32
Maximum cable length1200m
Isolation>2500
Environmental
Operation0°C to 55°C
Storage- 4°C to 66°C
Packaging
Dimensions (LxWxH)89mm(L)x93mm(W)x25mm(H) for Box Product / 79mm(L)x50mm(W)x18mm(H) for Board level
Weight200g (Box Level) , 30g (Board Level)
Warranty12 Month for Box Product, 6 Months for Board level Product
