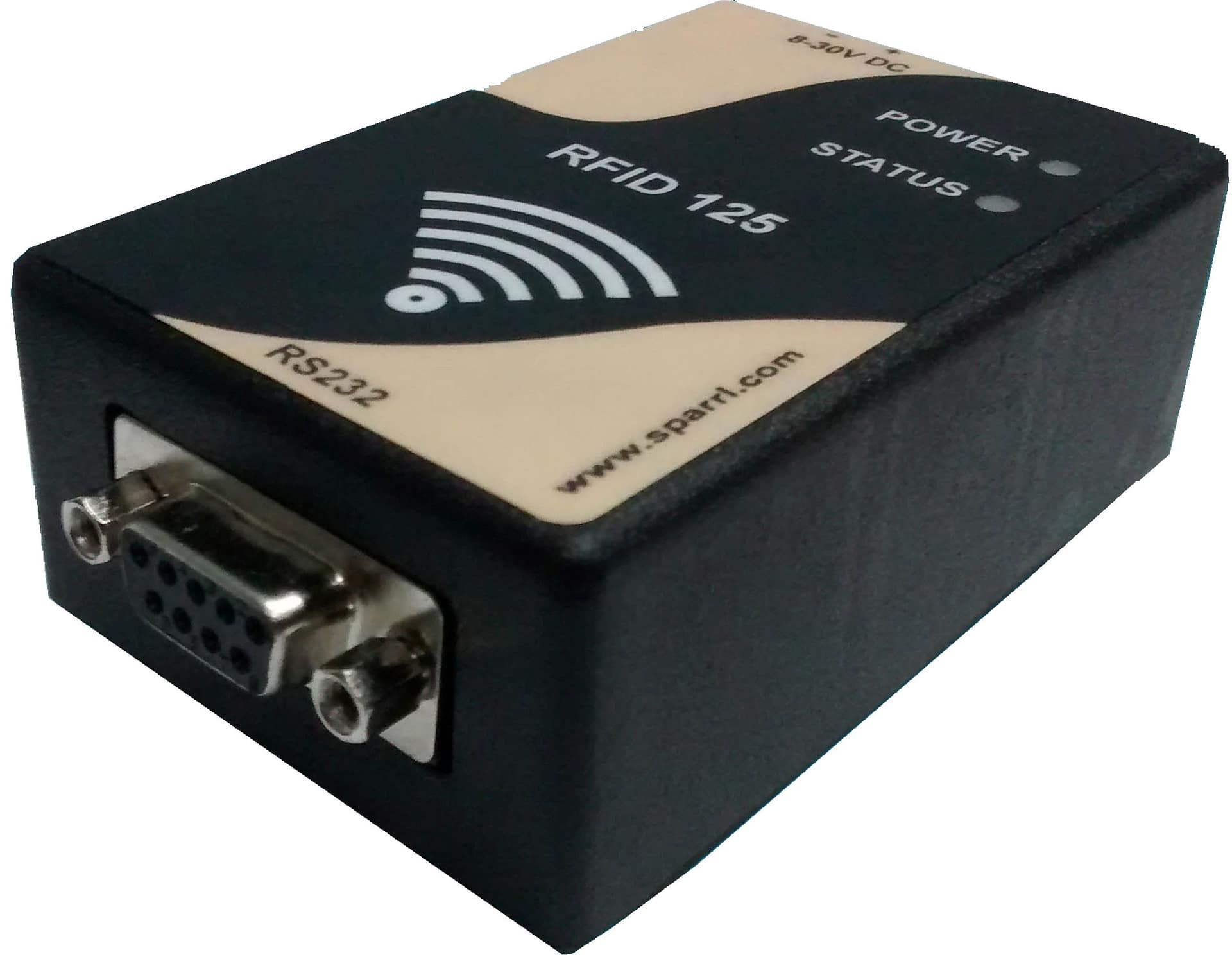

- RFID-125 converts radio waves returned from the RFID tag into a form that can be passed on to controllers, which can make use of it. The tags and readers have to be tuned to the same frequency to communicate.
- The frequency supported by the reader is 125 KHz.
- Designed as a plug & play module and can be plugged on a standard 300 MIL - 28 Pin IC socket form factor.
- Supports reading of 64-bit Manchester encoded cards.
Features
Specifications
| Interface | UART (TTL), RS232 and Wiegand, Others (on demand) |
| Connector | Berg Pins (MD), 9 Pin Female for MDV & PB, RMC for Wiegand (Optional) |
| Baud Rate | 9600 bps |
| Data Bits | 8 |
| Parity | No Parity |
| Stop Bits | 1 |
| Data Format | Send Tag ID HEX Value in ASCII format with Carriage Return and Line-Feed |
| Frequency | 125 KHz |
| Read Range | up to 7 cm |
| Supported TAG | Supports reading of 64 Bit Manchester Encoded Card |
| Wiegand | 26 Bit Format |
| Visual | LED Blinking for TAG read. Green LED in MDV. Berg Pin in MD |
| Audio | Single BEEP for TAG read. Buzzer in MDV. Berg Pin in MD |
| Input for RFID MD | 5 V DC (±5%) |
| Input for RFID MDV | 12 V DC |
| Input for RFID PB | 12 V DC |
| Maximum Consumption | 60 mA |
| Operating Temperature | -20 °C to 65 °C |
| Storage Temperature | -40 °C to 75 °C |
| Dimensions for MDV | 36 mm (L) x 18 mm (W) x 10 mm (H) |
| Dimensions for MD | 41 mm (L) x 21 mm (W) x 7.5 mm (H) |
| Dimensions for PB | 100 mm (L) x 57 mm (W) x 32 mm (H) |
| Antenna Board Dimensions | 46 mm (L) x 45 mm (W) |
| Weight | 55 g for MDV, 25 g for MD & 75 g for PB |
| Warranty | 3 months for MD, 6 months for MDV & 12 Months for PB |
