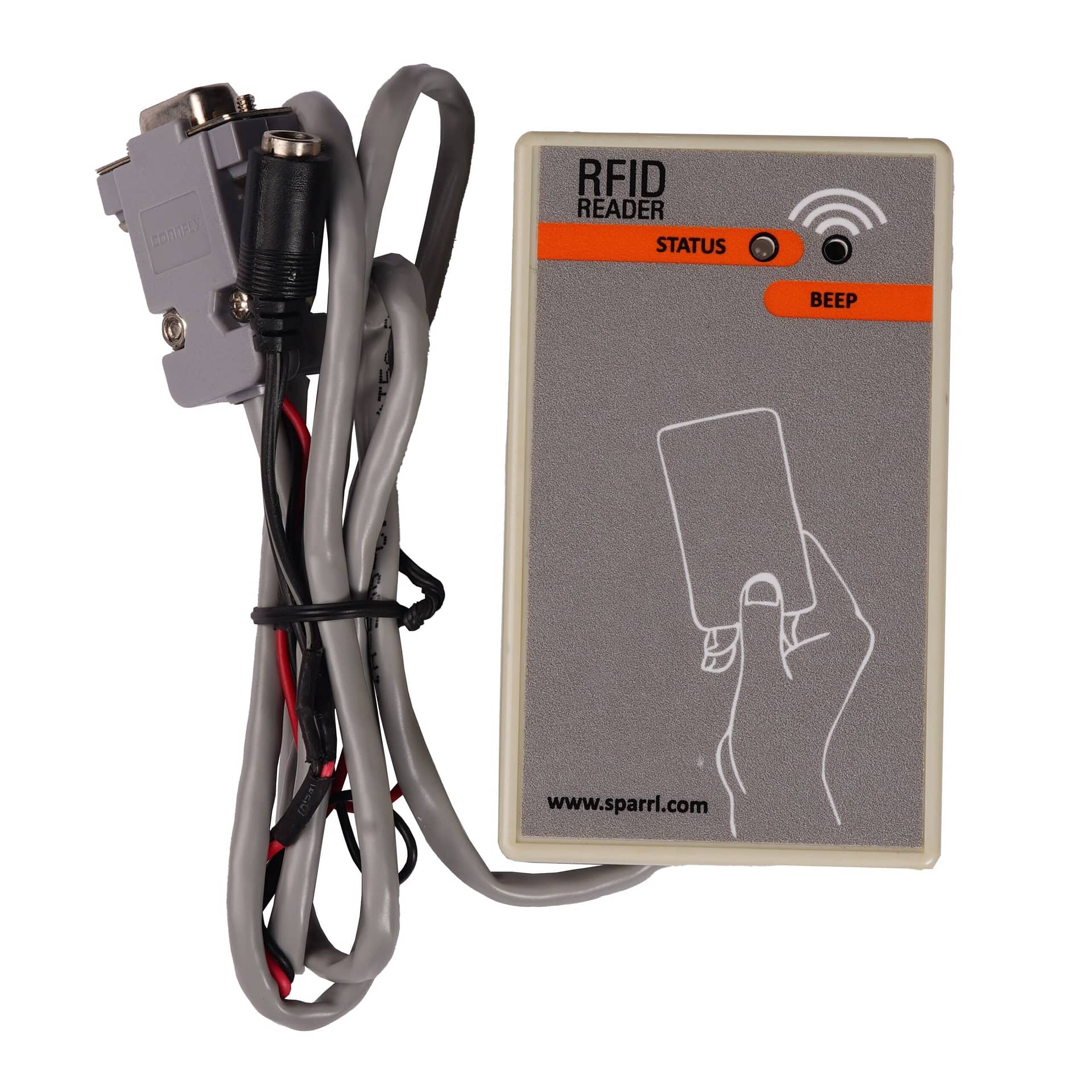

RFID Reader – Mifare (HF)

Utilizes MIFARE® technology to Read and Write in to contact-less
Smart Cards. RFID MF KIT

Get QuoteDataSheet
Compare
Add to wishlist
Category:
Features
  • Utilizes MIFARE technology to read and write into contact-less smart cards.
  • Based on command and response for easy integration with a PC running an application through the serial interface, or with a microcontroller.
Specifications
InterfaceRS 232
ConnectorBerg Pins
Baud Rate9600 bps
Data Bits8
ParityNo Parity
Stop Bits1
Frequency13.56 MHz
Read Range50 mm, depending on the installation conditions
Cable Distance50 ft or 15 meters
Supply VoltageRegulated 12 V DC
Supply Current80 mA
Operating Temperature0 °C to 65 °C
RFID MF KIT - Part Number1448000709
RFID MF KIT PB - Part Number1448001500
RFID MF KIT - LevelBoard, Antenna Board

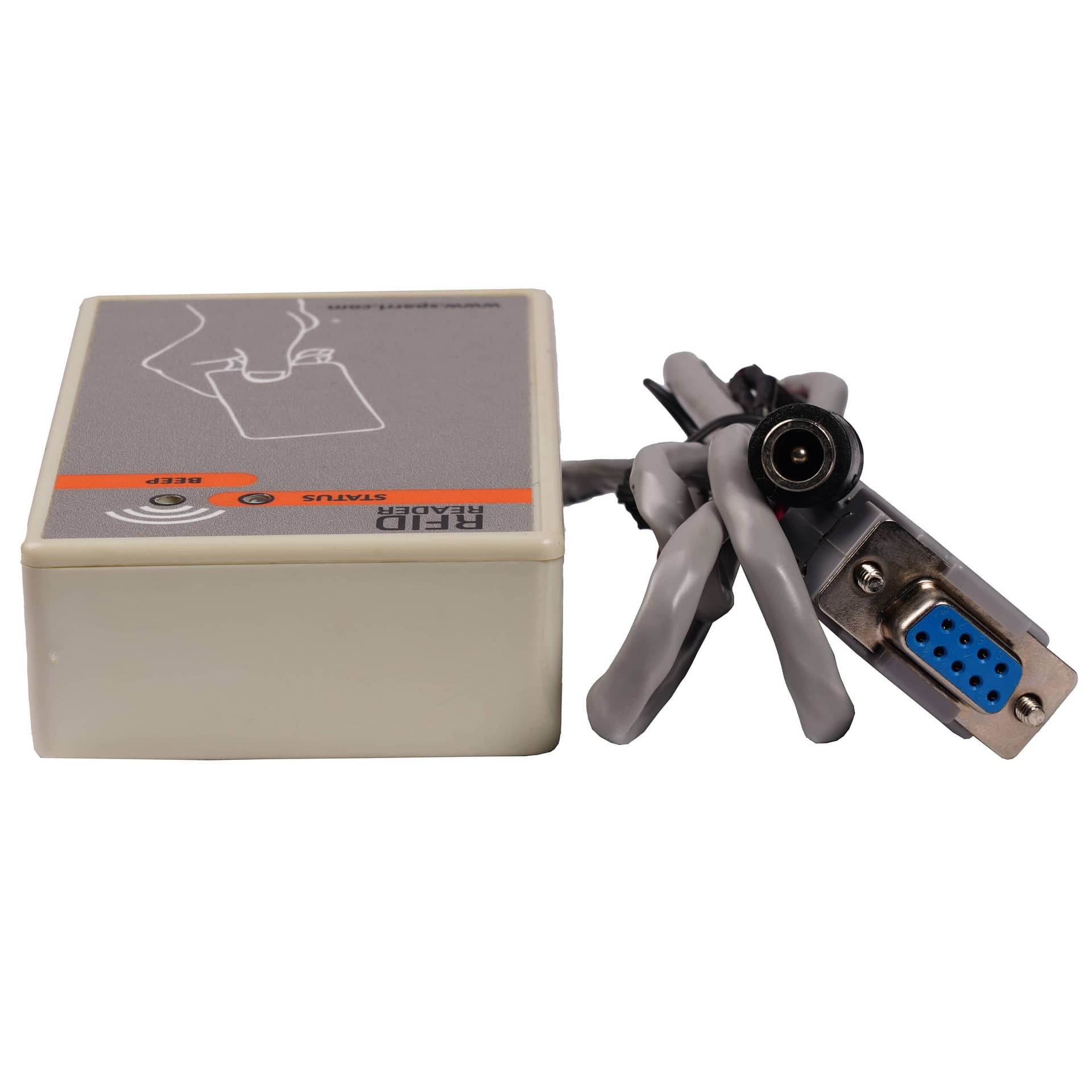

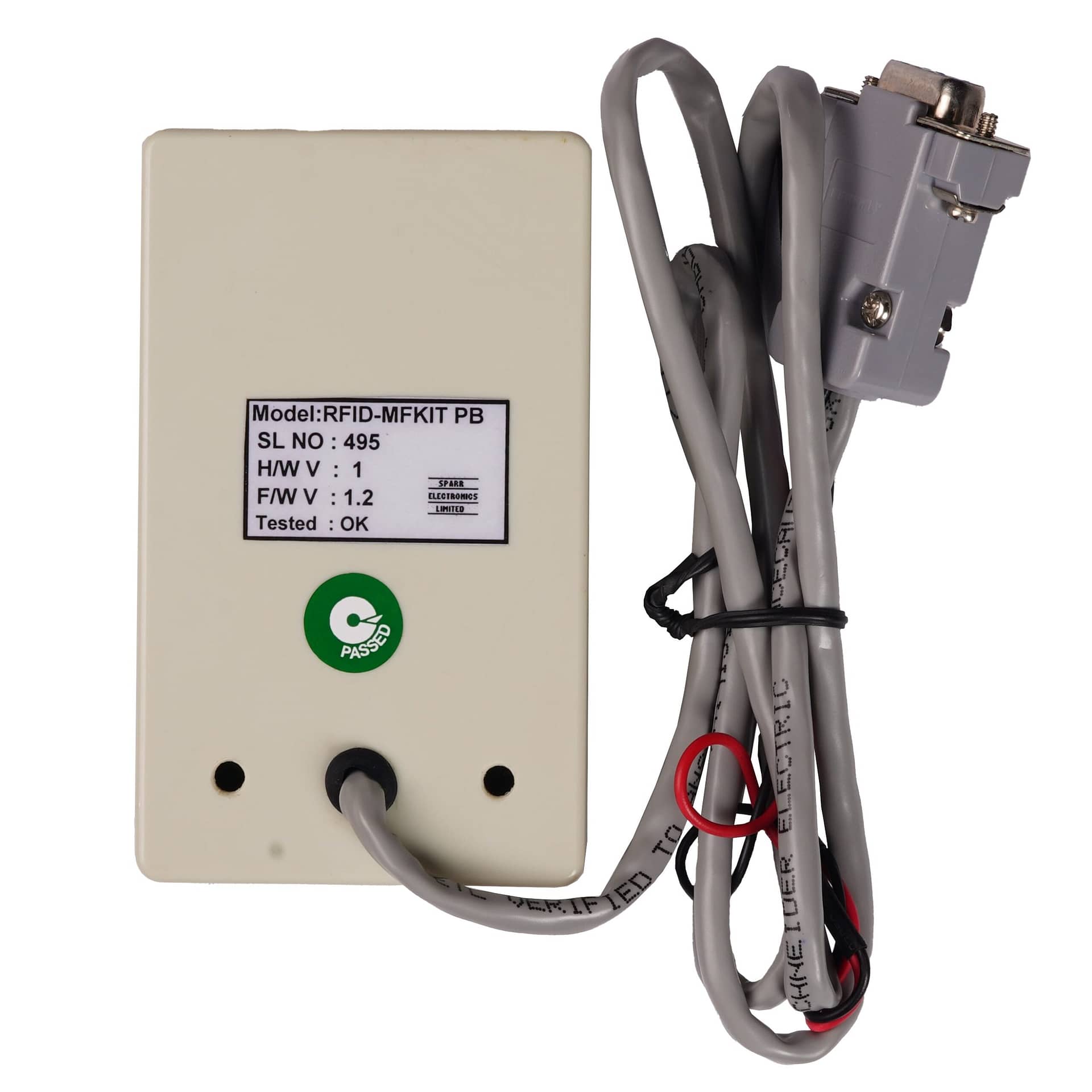

RFID MF KIT PB - LevelBox
RFID MF KIT - Dimensions70 mm (L) x 56 mm (W) x 15 mm (H); 70 mm (L) x 43 mm (W) x 15 mm (H)
RFID MF KIT PB - Dimensions100 mm (L) x 60 mm (W) x 25 mm (H)
RFID MF KIT - Weight40 g
RFID MF KIT PB - Weight135 g
RFID MF KIT - Warranty6 months
RFID MF KIT PB - Warranty12 months
Resources
RFID Mifare DatasheetDownload
RFID Reader Mifare DatasheetDownload
Part Numbers
Part NumberPart NamePart DescriptionContact
1448000709RFID MF KITBoard With 13.56 MHz Reader and Writer/Antenna/2 Tags/Adaptor/CableKnow More
1448001500RFID MF KIT PBUnit With 13.56 MHz Reader and Writer/2 Tags/AdaptorKnow More
