Serial Data Logger

Serial Data Logger is the ideal product, to record all your RS232 data without
requiring any computing device.

Get Quote
DataSheet

Features & Compatibility

  • Serial Data Logger is the ideal product, to record all your RS232 data without
    requiring any computing device.
  • Provides real-time data collection from any serial device, and acts as a USB drive
    when connected to PC, allowing the user to collect the data from it.
  • Supports high speed baud rates, up to 921 Kbps.
  • Supports maximum storage capacity of 16GB
  • Can be easily configured through a text file

Specifications

NameSpecifications
Serial Interface
InterfaceRS 232 , USB 2.0

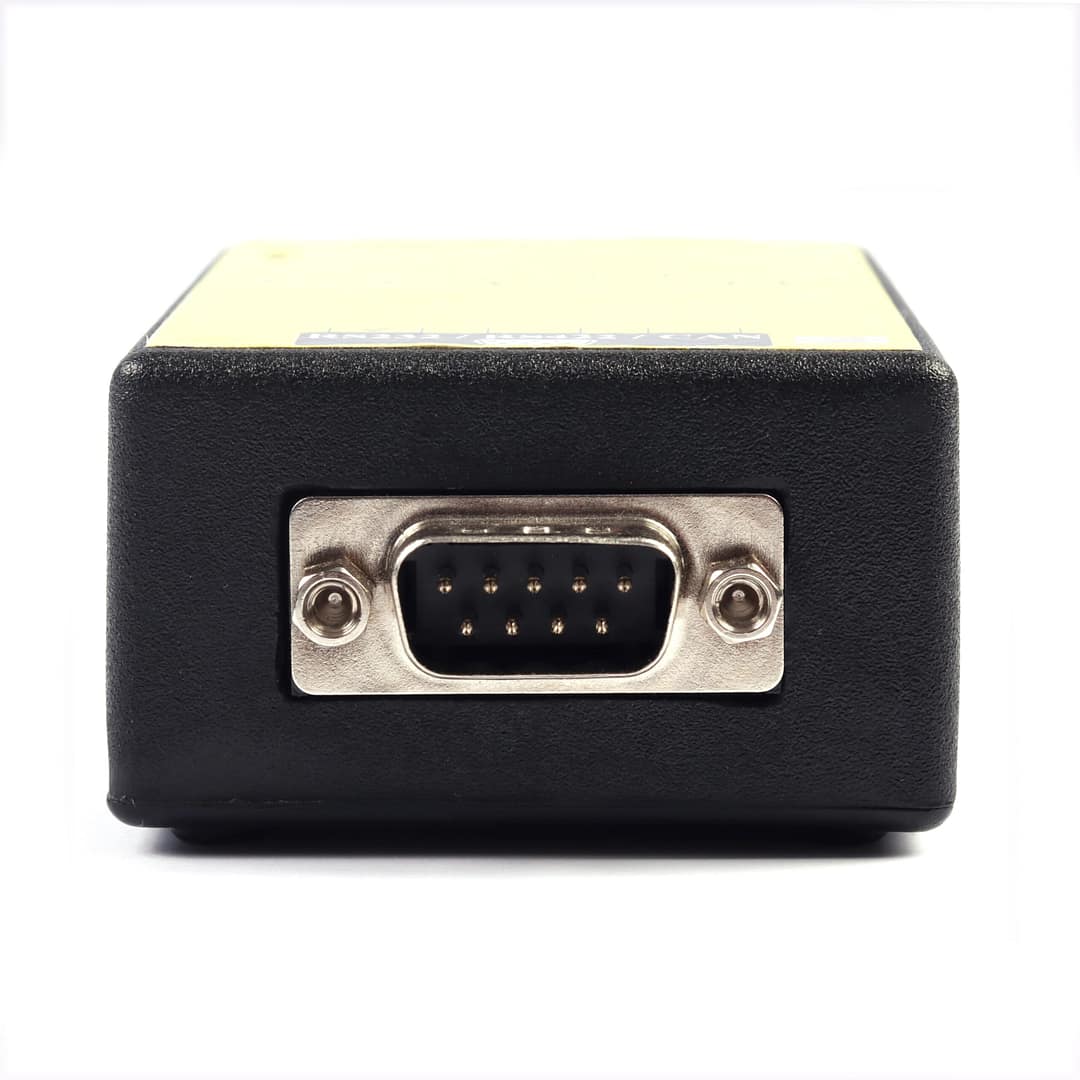

ConnectorDB9 Male for RS 232, Type C for USB
Baud Rate1200 to 921600 bps
Data Bits7 or 8
ParityOdd, Even and No Parity
Stop Bits1 or 2
Flow ControlNone , XON/XOFF
StorageUp to 16GB
ConfigurationUsing text file
Indicators (LED)
RedON when getting External Power
GreenON when getting Power through USB
YellowStatus
Power
Input12 V DC, 50mA
Environmental
Operating0 °C to 65 °C
Storage0 °C to 75 °C
Packaging
Dimensions (LxWxH)80mm(L) x 52mm(W) x 30mm(H)
Weight60g
Warranty12 Months
