- The RS 232 Serial Port Isolator - ISO 232 provides complete isolation between a legacy computer or machine via the serial device to protect against any inadvertent damage due to electrical disturbances. In addition, the ISO 232 also provides immunity to electrical noise and differential ground.

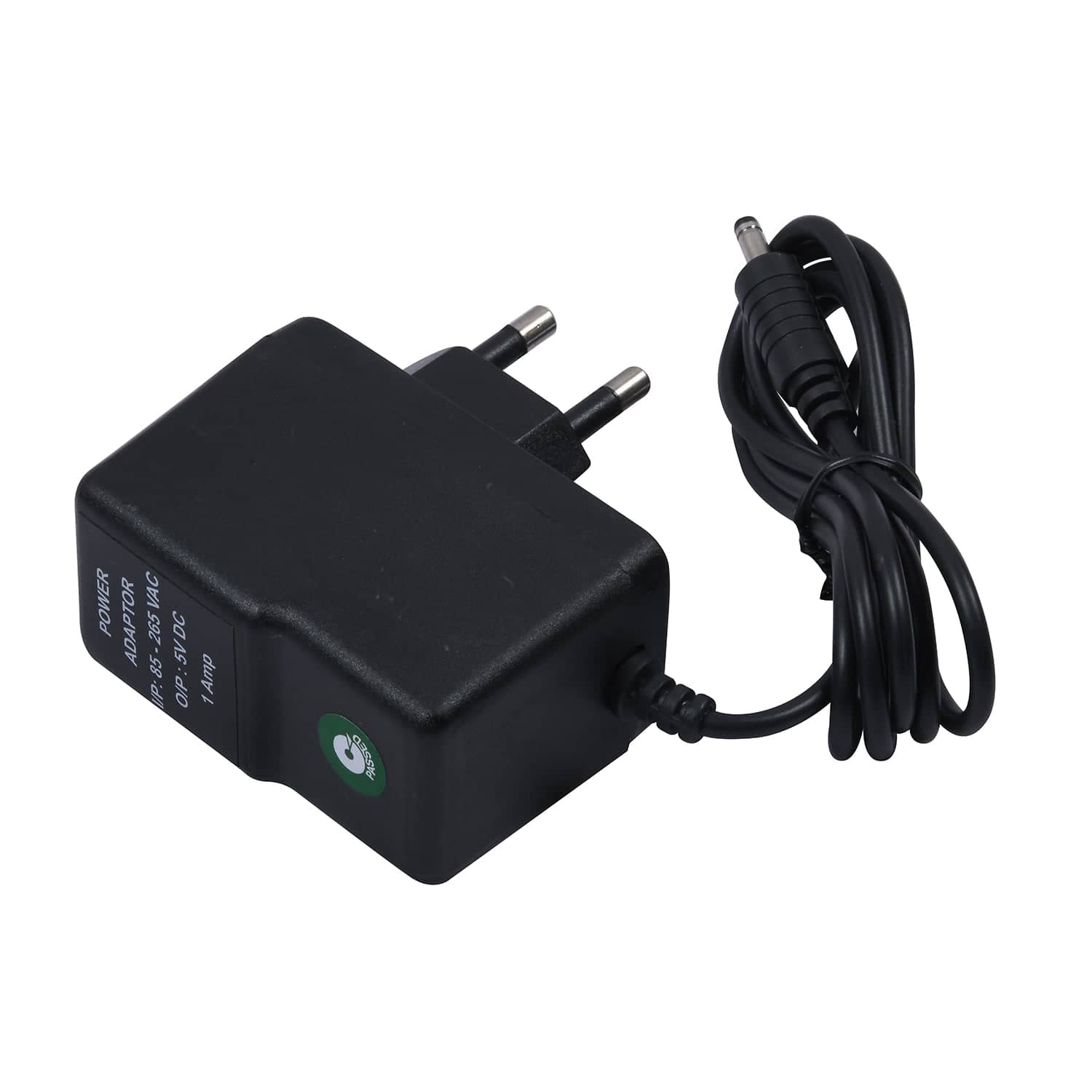

- ISO 232 is a compact unit enclosed in a plastic casing which takes power from the supplied power adaptor.
- The converter is populated with surface mount components for good reliability and portability. Additionally, it offers consistent isolation to data signals and protects the serial port from high voltage (2500V).

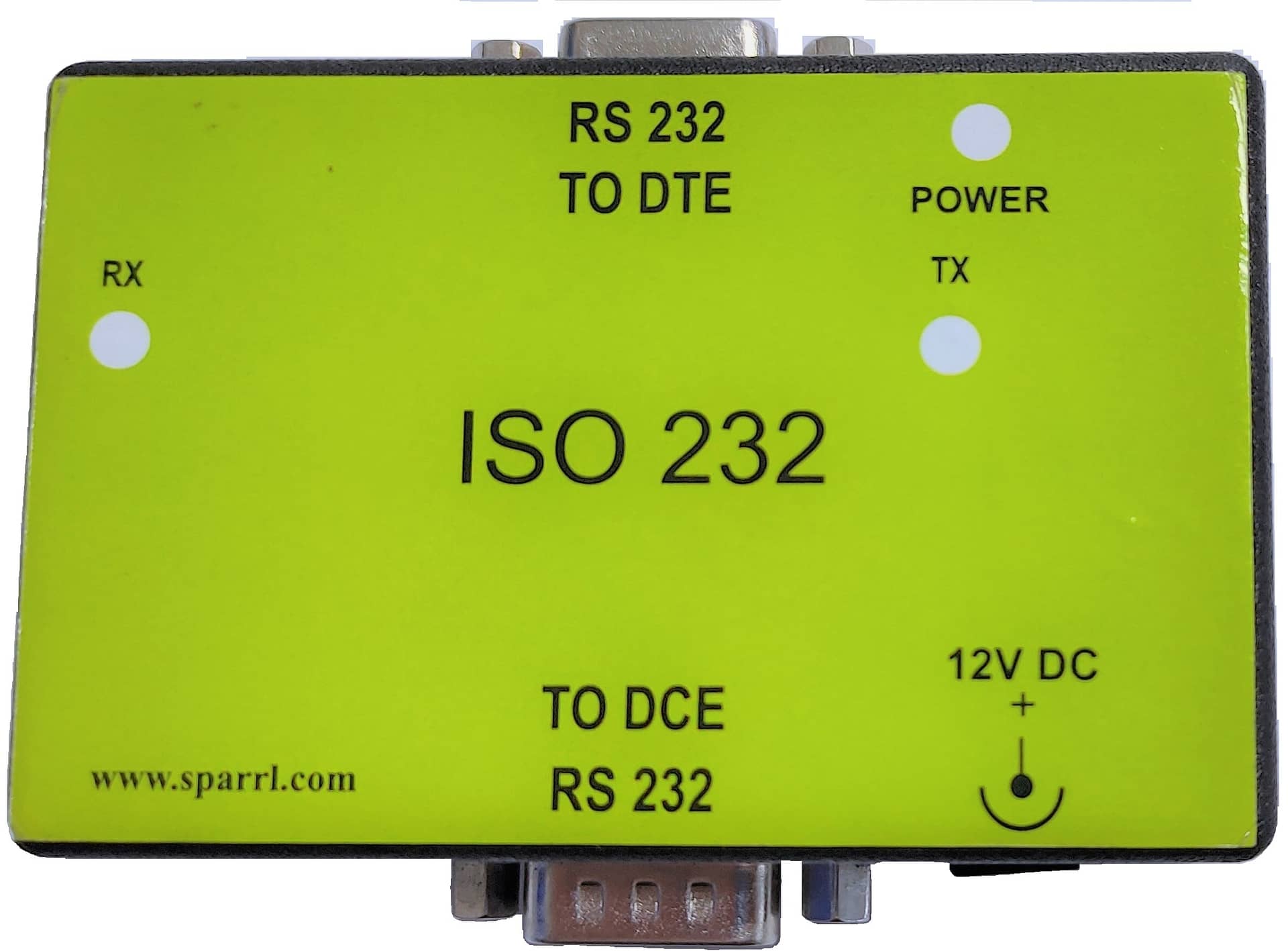

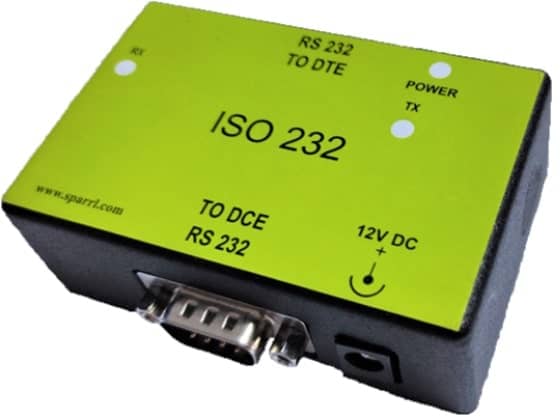

Serial Port (RS 232) Isolator
The RS 232 Serial Port Isolator – ISO 232 provides complete Isolation between a legacy computer or machine via the serial device to protect against any inadvertent damage due to electrical disturbances. In addition, the ISO 232 also provides immunity to Electrical Noise and differential ground.
Features
Specifications
| Interface | - |
| Serial | RS232C |
| Connectors | 9 Pin D-Type Female to DTE side, 9 Pin D-Type Male to DCE side |
| Cable Length | 15 metres maximum |
| Signal Isolation | 5000 VAC RMS. Optical isolation to signals |
| Power Isolation | 1500 VDC |
| Baud Rate | 300 to 115200 baud |
| Indicators (LED) | - |
| Yellow | Transmit Data (TxD) |
| Green | Receive Data (RxD) |
| Red | Power ON |
| Power | - |
| Input | 11-13 VDC. 12V 1A external adaptor provided. |
| Environmental | - |
| Operating | 0°C to 70°C |
| Storage | -40°C to 85°C |
| Packaging | - |
| Dimensions (L x W x H) | 83mm x 66mm x 30mm |
| Weight | 75g |
| Warranty | 12 Months |
Resources
Part Numbers
| Part Number | Part Name | Part Description | Contact |
|---|---|---|---|
| 1227000803 | ISO 232 | Isolator with 12V adaptor | Know More |
