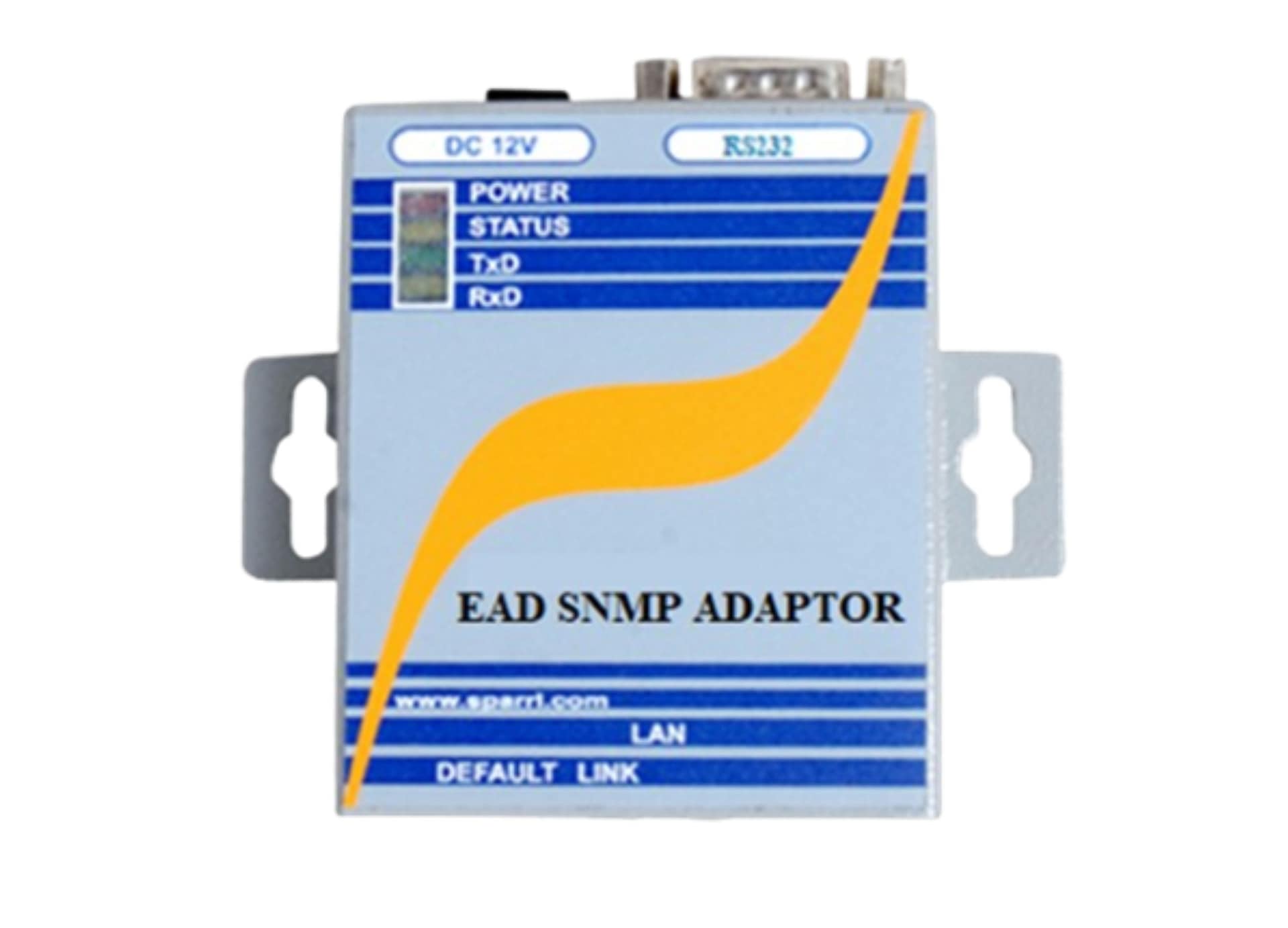

- Converts serial or Ethernet devices to SNMP-enabled devices.
- Provides real-time monitoring and control of connected equipment.
- Web-based configuration and management interface.
- Event trap generation on configurable thresholds.
- Supports SNMP communication mode.
- Secure access with user authentication and configurable permissions.
- LED indicators for power, network, and serial communication status.
Features
Specifications
| Interface | RS 232, RS 485/RS422 |
| Connector | 9 Pin Male D-Type for RS232, RS-485 & RS-422 |
| Baud Rate | 300 to 115200 bps |
| Data Bits | 7 or 8 |
| Parity | Odd, Even and No Parity |
| Stop Bits | 1 or 2 |
| Flow Control | None, XON/XOFF |
| Network Interface | Ethernet 10 Base-T or 100 Base-TX Connector |
| Network Connectors | RJ 45 Female |
| Protocol | SNMP |
| Red | Power ON |
| Yellow | Connection Status |
| Green | Transmit Data from Serial |
| Yellow | Receive Data to Serial |
| CPU | ARM Cortex M4 |
| Memory | 1 MB |
| Input | 5 to 24 V DC |
| RS 485/422 - Maximum No. of nodes | 32 |
| RS 485/422 - Maximum cable length | 1200 m |
| RS 485/422 - Isolation | >2500 |
| Operating | 0 °C to 65 °C |
| Storage | 0 °C to 75 °C |
| Dimensions (L x W x H) | 89 mm (L) x 93 mm (W) x 25 mm (H) for Box Product / 79 mm (L) x 50 mm (W) x 18 mm (H) for Board level |
| Weight | 200 g (Box Level), 30 g (Board Level) |
| Warranty | 12 Months for Box Product, 6 Months for Board level Product |
