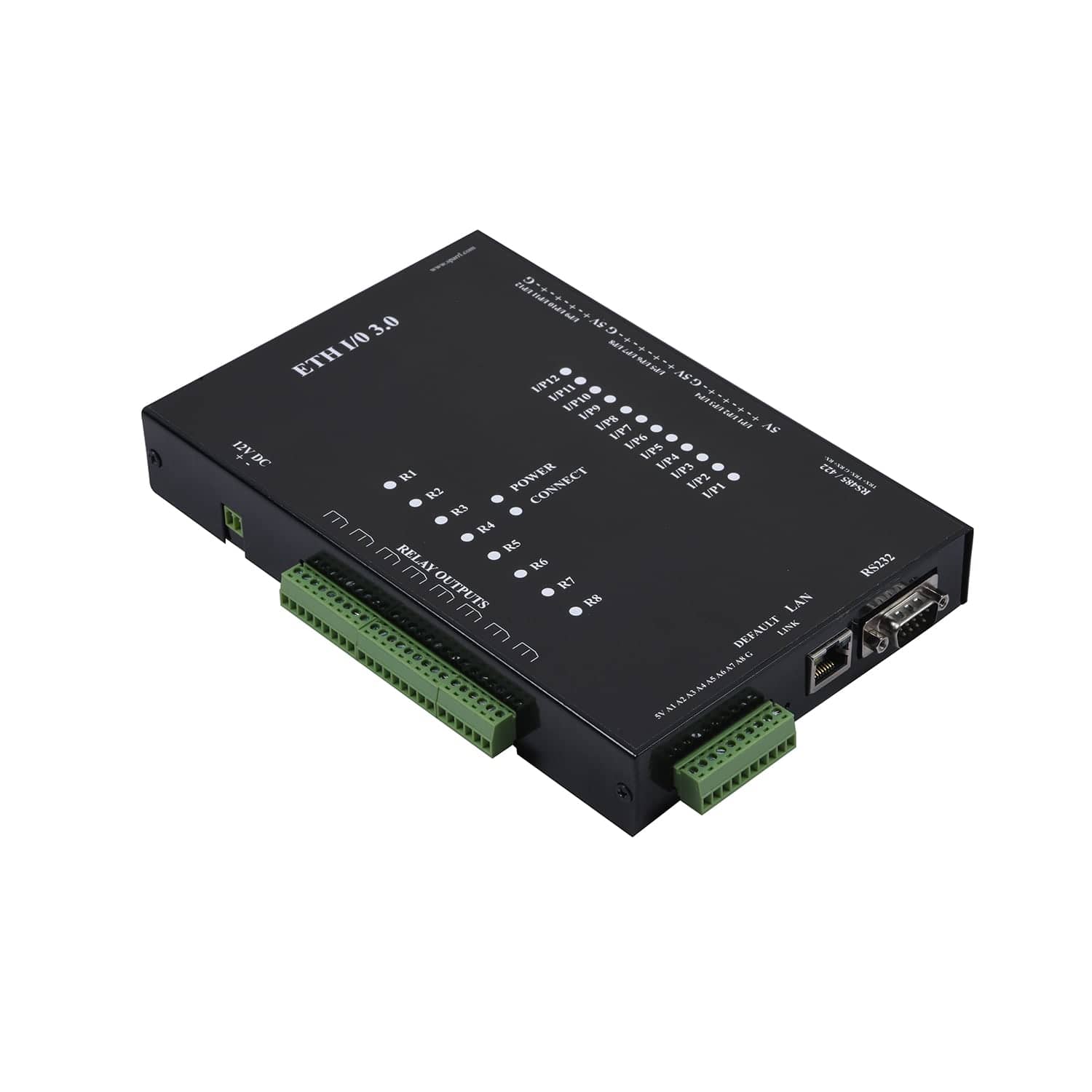

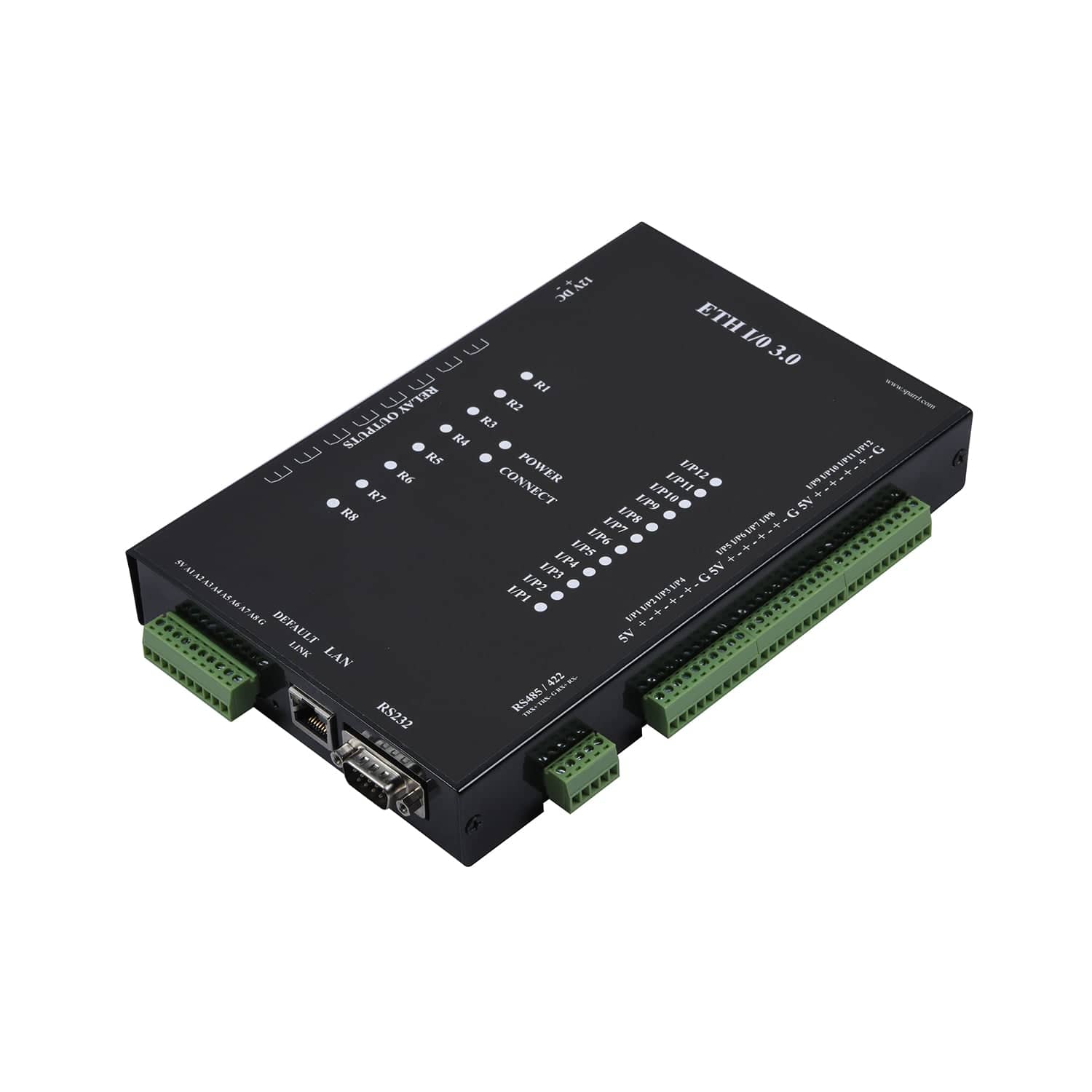

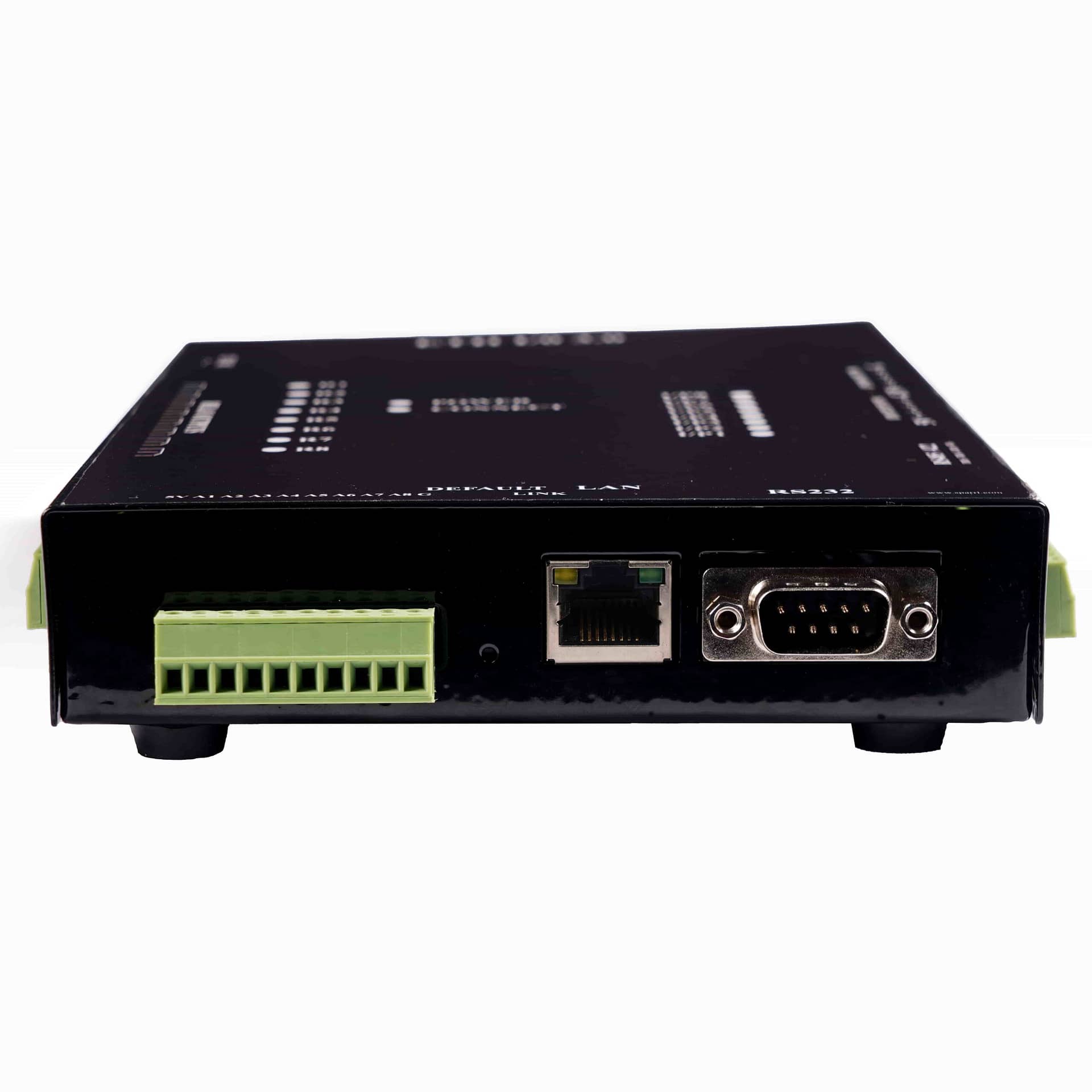

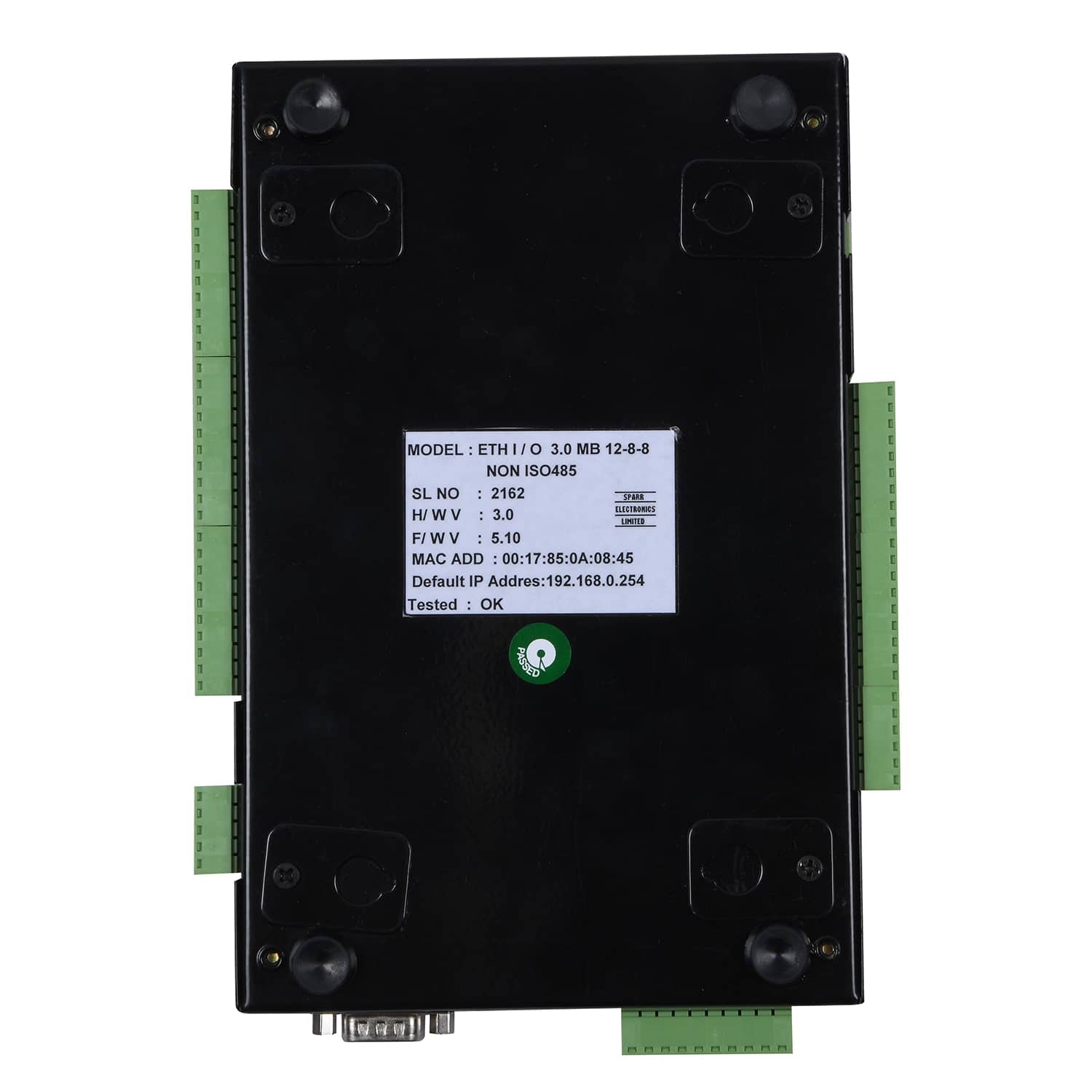

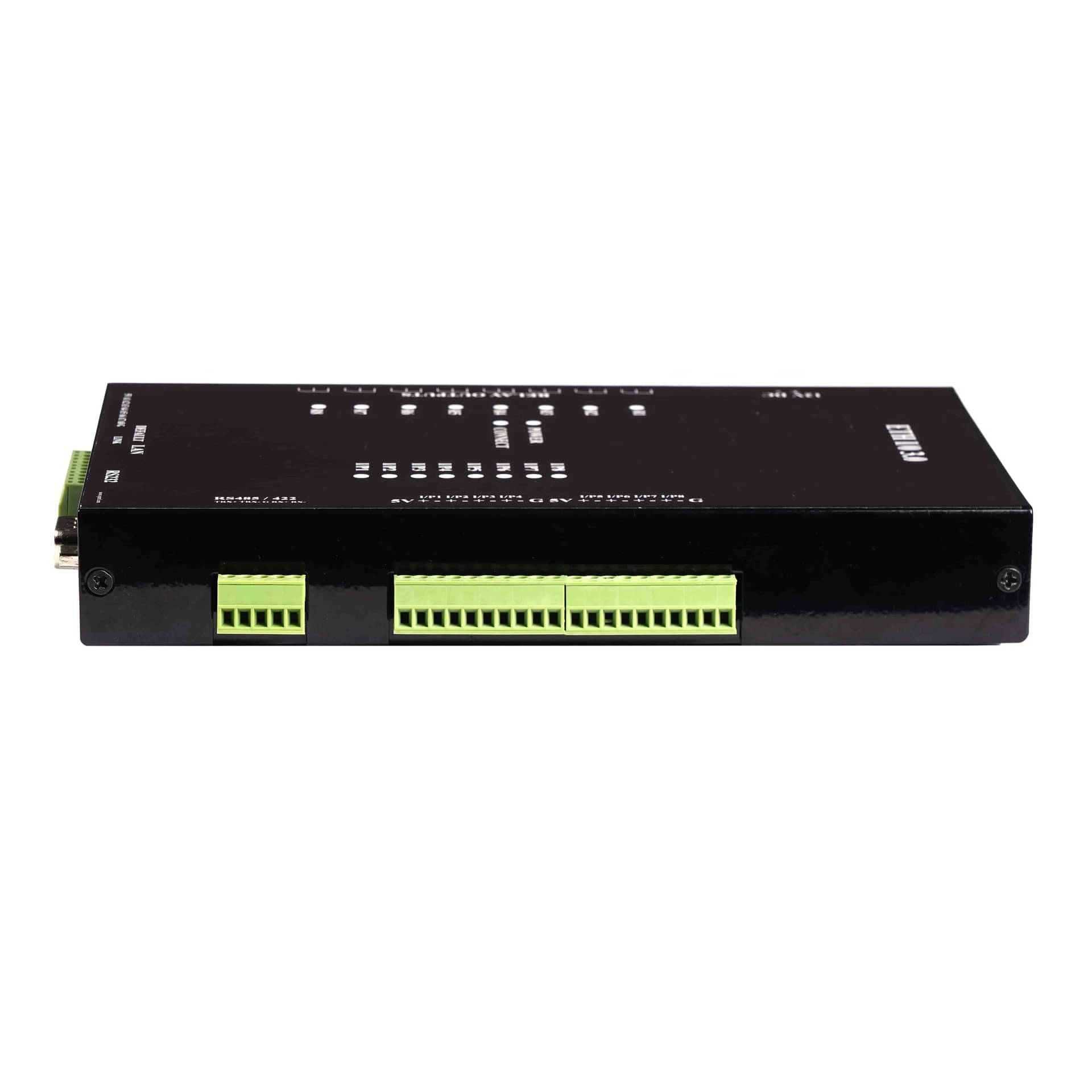

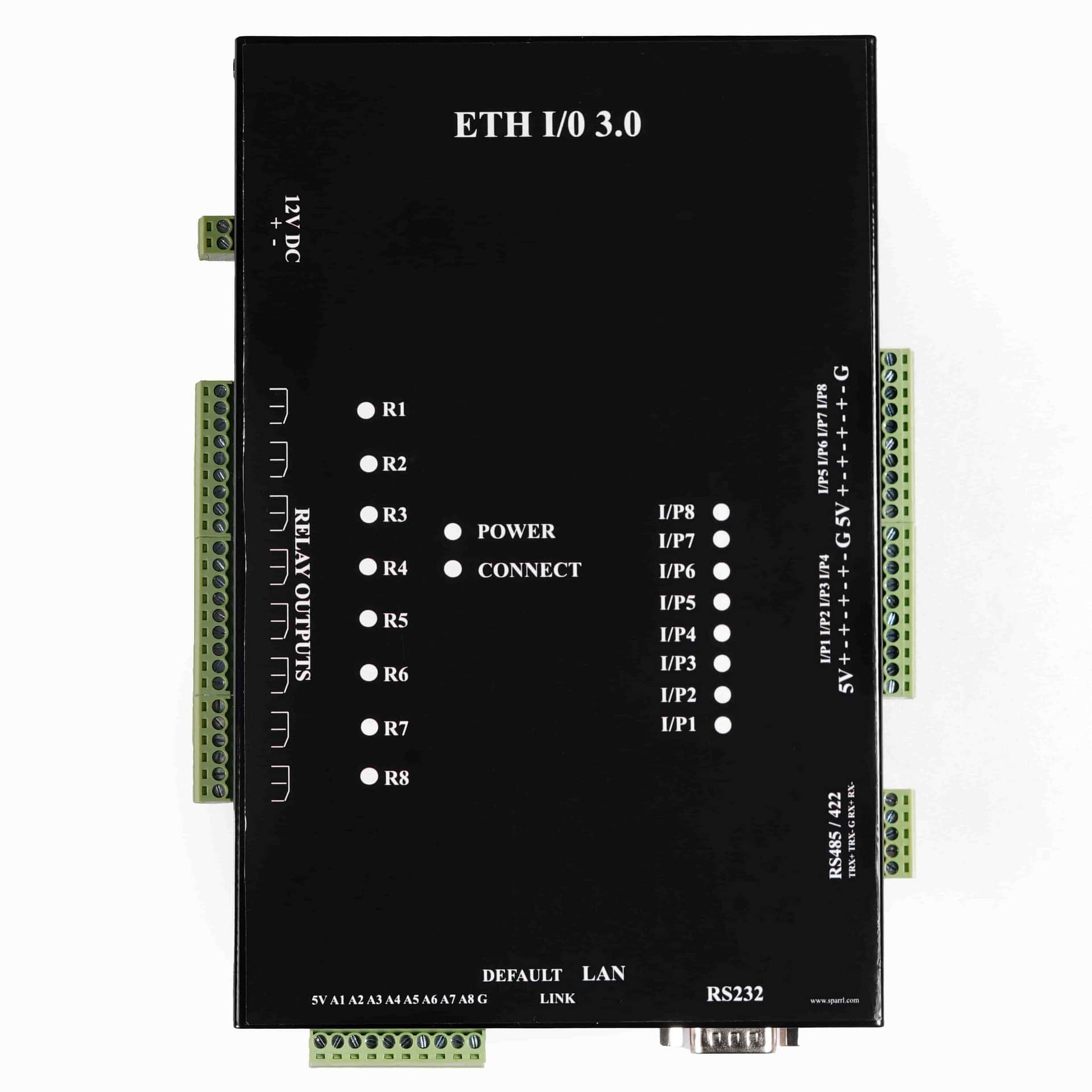

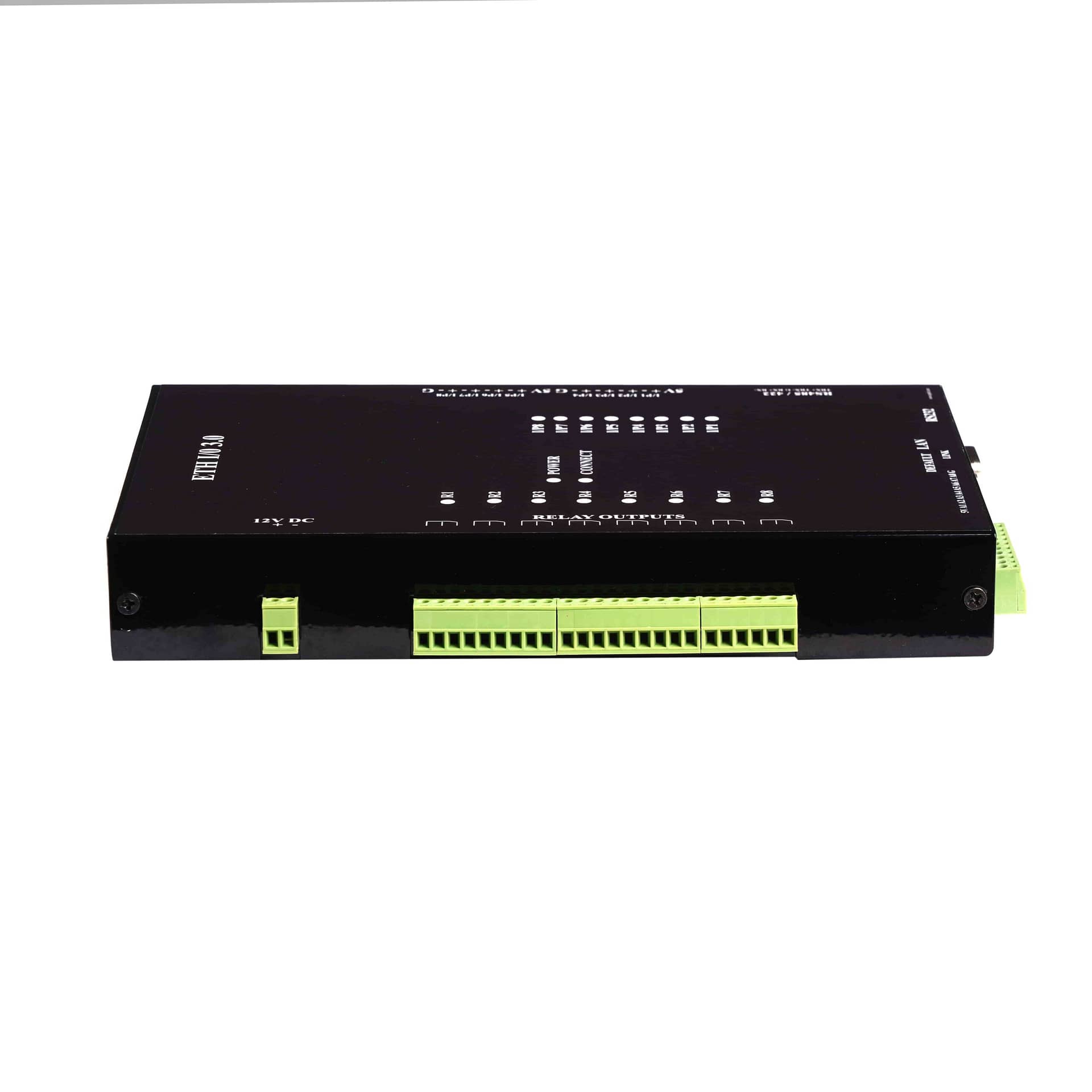

ETHIO 3.0

The ETH IO – 3.0 unit enables the user to monitor the Analog inputs,Digital inputs,control relay outputs

A single box of ETH IO – 3.0 contains 8 Analog inputs, 12 Digital inputs, 8 potential freerelay contacts.
Using the LAN or GSM/GPRS, all of the information of the inputs and the status of the different units connected to it , will be sent to the main server.

Specifications

Name	Specifications(RS 232)	Specifications(RS 485)
Serial Config	RS 232	RS 485
Interface	RS 232	RS 485. Isolation - Optional
Baud Rate	300 to 115200 bits/second	300 to 115200 bits/second
Data Bits	7 or 8	7 or 8
Parity	Even, Odd and None	Even, Odd and None
Stop Bits	1 or 2	None, Xon - Xoff
Flow Control	None, XonXoff	Protocol: MODBUS RTU ,MAX Slaves: 6
LAN Interface
Speed	10/100 Mbps
Protocol	TCP/IP
Protocols
HTTP	For posting the data using LAN, GSM/GPRS (Optional)
Web	For configuring the unit
Telnet	For configuring the unit
Inputs	Digital Inputs	Analog Inputs
Number of Inputs	12	Channels: 8
Input Voltage	5-24 V DC 20ma current Limit	Voltage: 0-12V I/P 7 CH
Isolation/Input type	Isolation 3750 V RMS	Voltage: 0-100V I/P 1CH
Relay Outputs		4-20ma and Other voltages are factory set optional.
Number of Outputs	8
Relay Contacts	Normally close, Normally open and Common	Display
Contact Rating	1A at 120V AC or 1A at 24V DC	16X2 Alpha Numeric LCD with backlight Optional
GSM/GPRS	2G or 3G Optional
Environmental
Operating	0 to 55°C
Storage	-40 to 85°C	Indicators(LED)
Power		Power Green

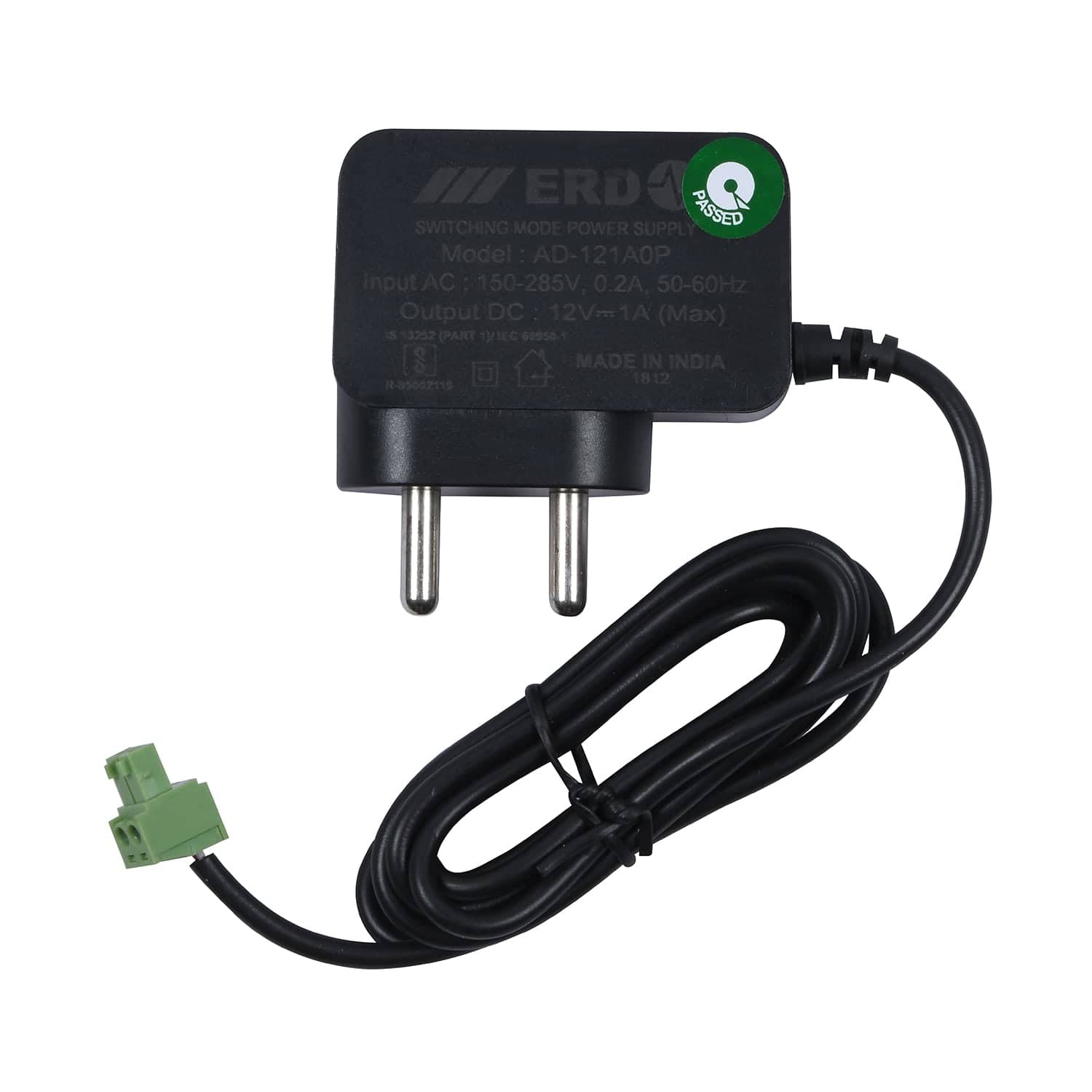

Input	12 V DC, 1 Amp	Connection Establishment Yellow
Protection	Fuse and reverse Polarity protection	Digital Data and Relay status Red
Internal Battery	Optional	GSM Status Green
Packaging
Dimensions	205 mm (L) x 130 mm (W) x 30 mm (H)
Weight	825 g
Warranty	12 Months for box product
