- Supports multiple socket connections and web socket connection.
- Automatically converts serial data to Ethernet and vice versa without protocol changes.
- Simple configuration through a built-in web interface via standard browsers.
- Configurable baud rates up to 115200 kbps.
- Visual status LEDs for power, link, and data activity.
- Supports DC power input (8-24V).

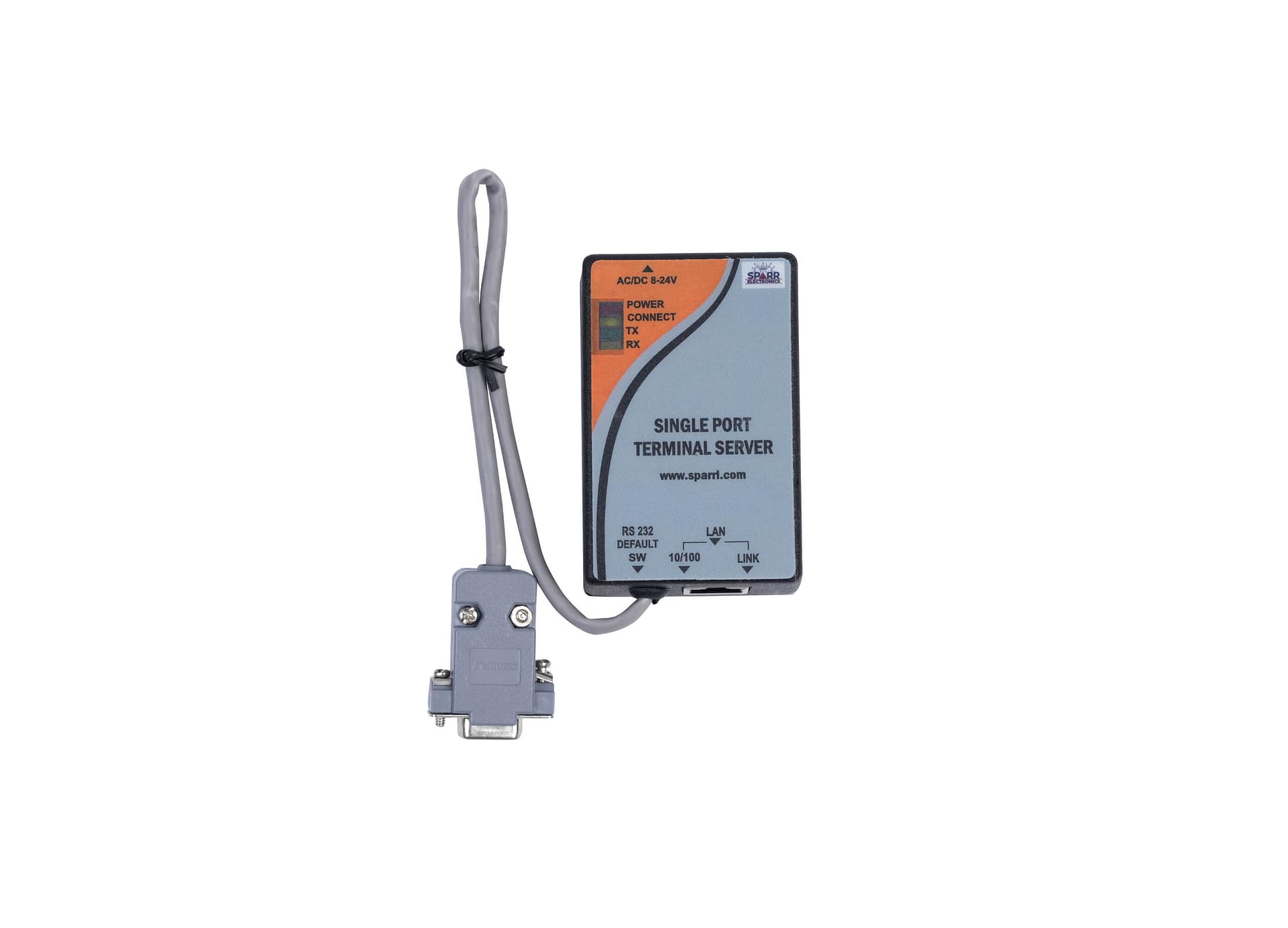

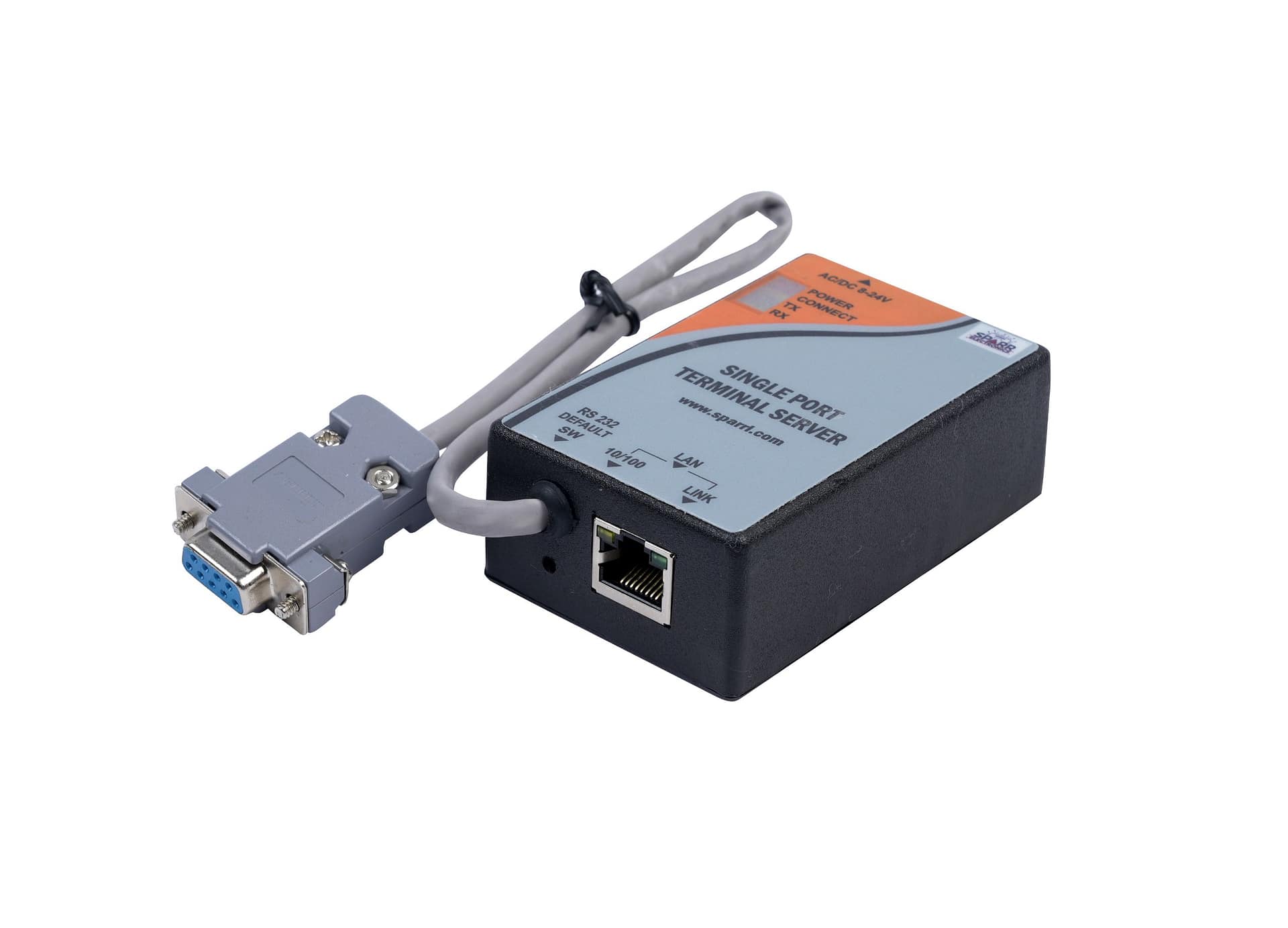

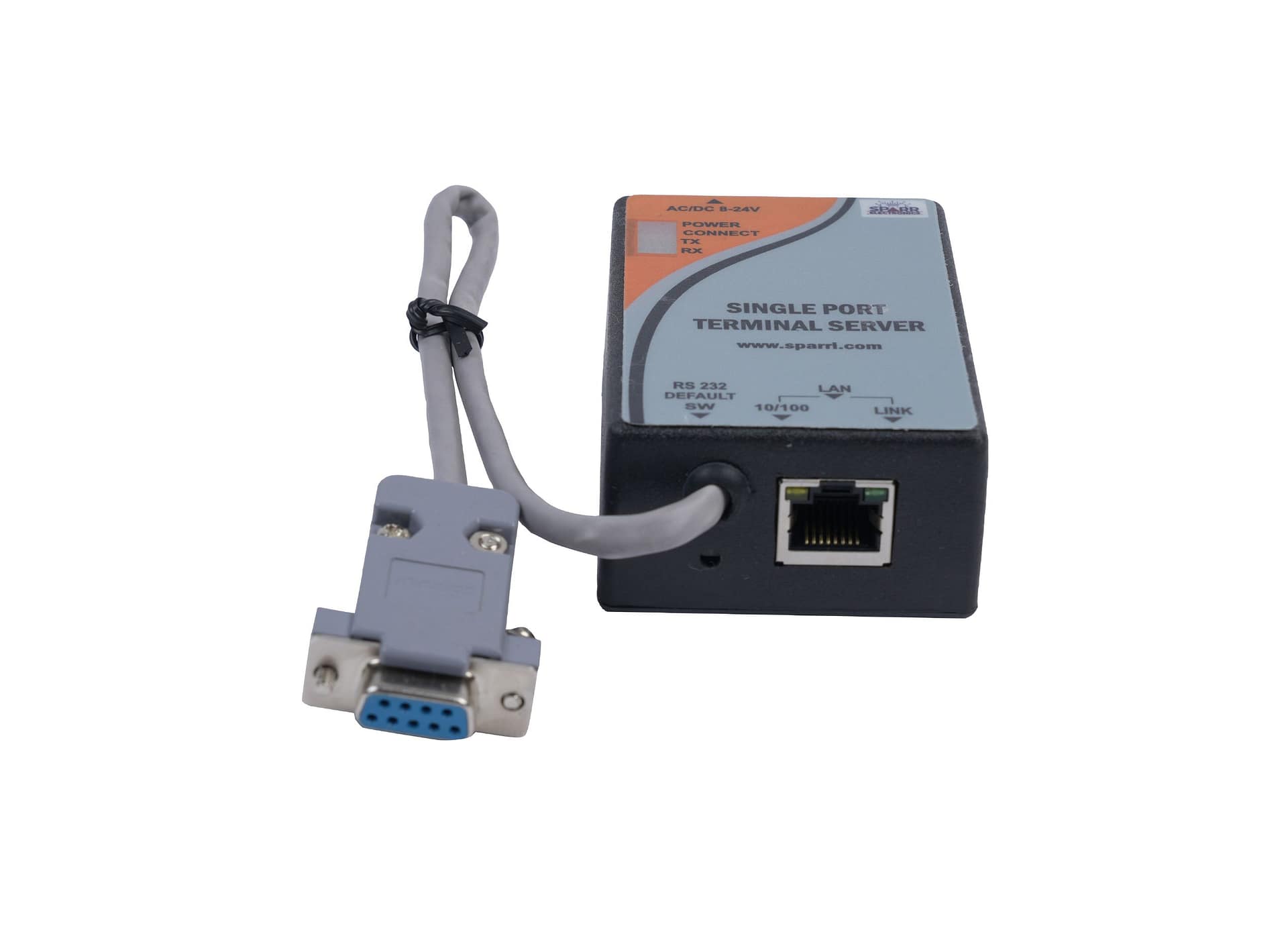

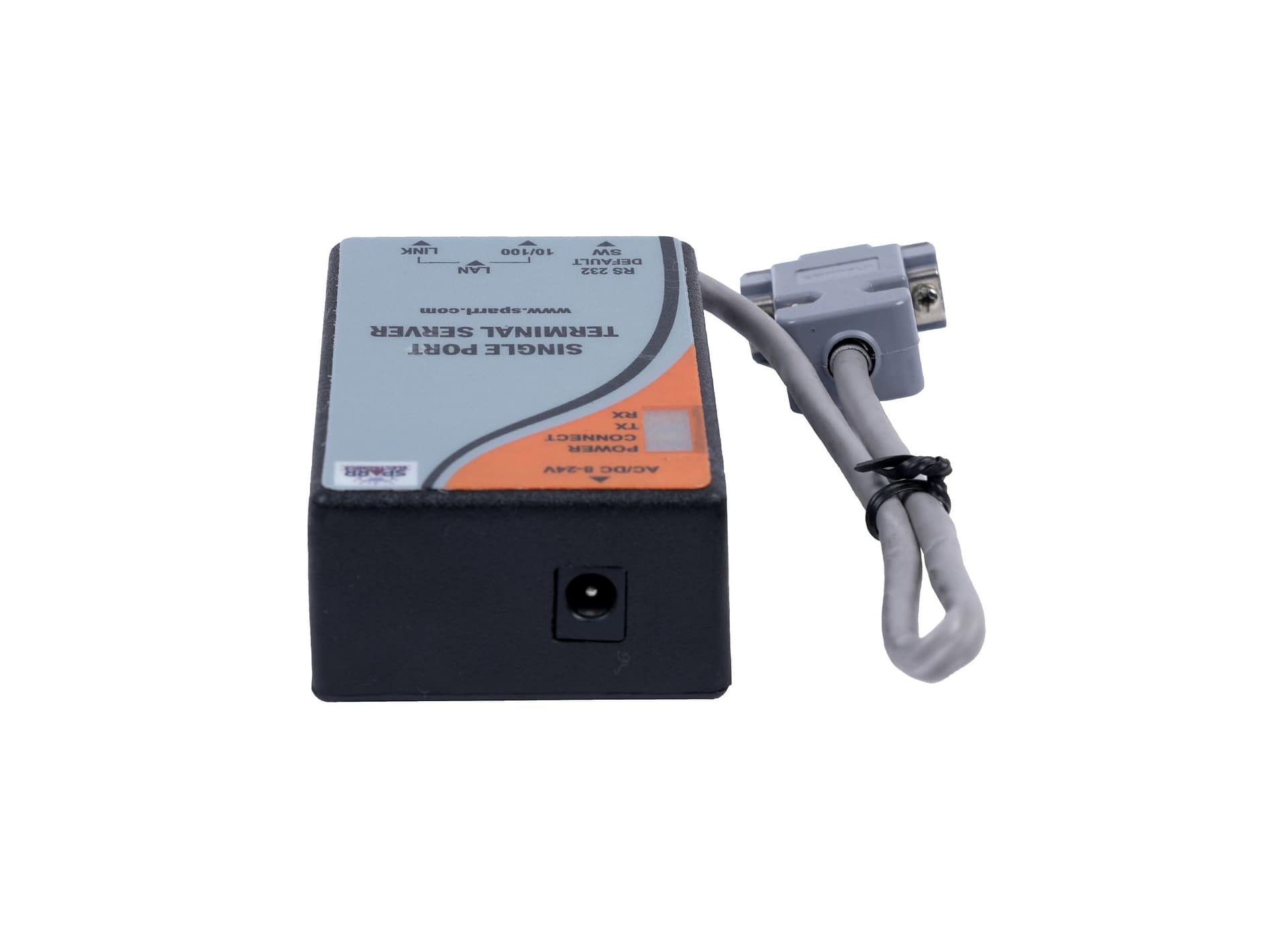

Ethernet Adaptor (Serial to Ethernet)
Features
Specifications
| Interface | RS 232 |
| Connectors | 9 Pin Female, Male (optional) |
| Data Rates | 300 to 115200 bps |
| Data Bits | 7 or 8 |
| Parity | Odd, Even and No parity |
| Stop Bits | 1 or 2 |
| Flow Control | None, XON/XOFF & RTS/CTS |
| Network Interface | Ethernet 10 Base-T or 100 Base-TX Connector |
| Network Connectors | RJ 45 Female |
| Protocols | TCP, UDP, ARP, ICMP, MAC, Telnet, DHCP & HTTP. SNMP & MODBUS (Optional) |
| Red | Power ON |
| Yellow | Connection Status |
| Green | Transmit Data to Serial |
| Yellow | Receive Data from Serial |
| Input | 8 to 24 V DC |
| Operation | 0 °C to 55 °C |
| Storage | -4 °C to 66 °C |
| Dimensions | 100 mm (L) x 60 mm (W) x 25 mm (H) |
| Enclosure | Plastic |
| Mounting | Table Top |
| Weight | 86 g |
| Warranty | 12 Months |
