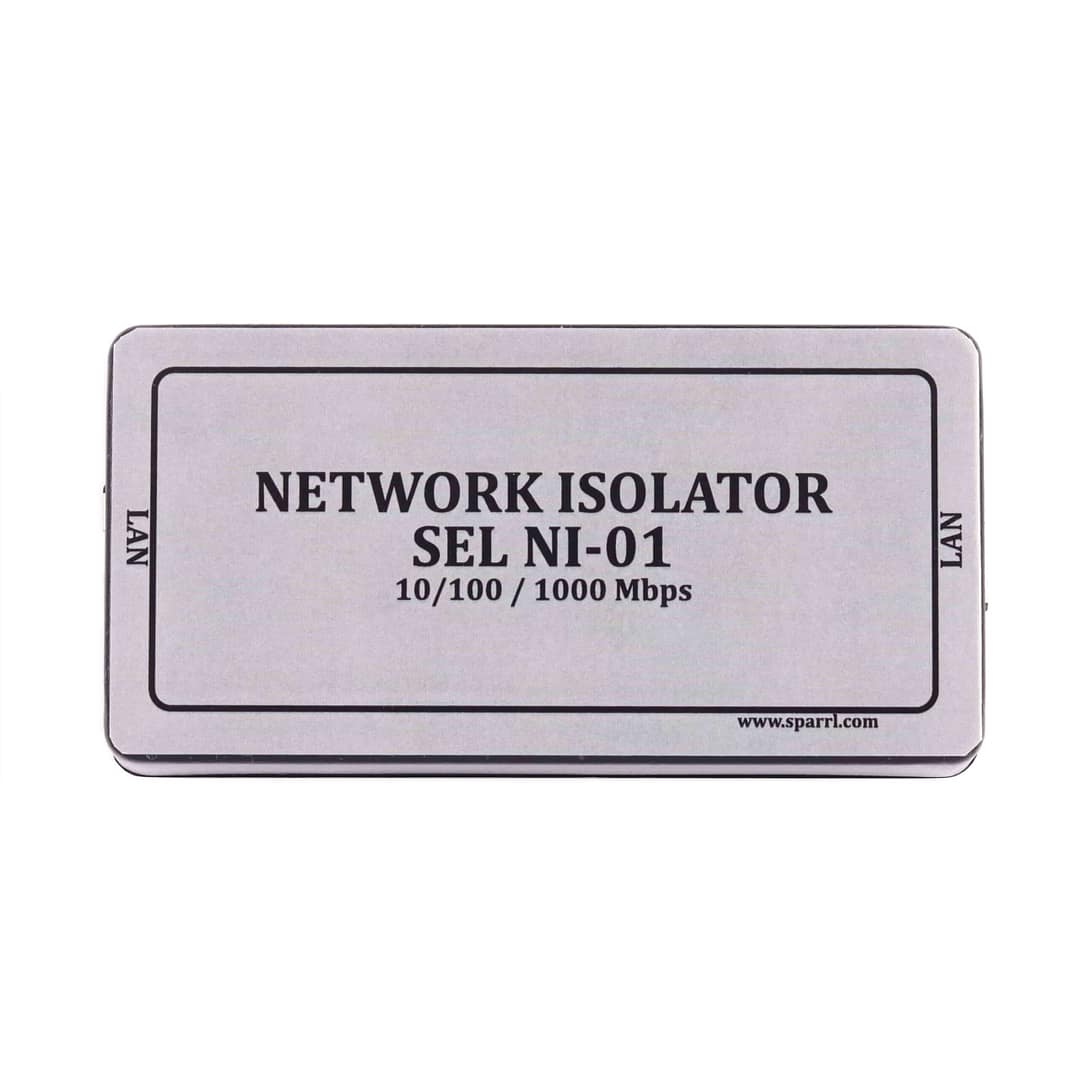

- Network Isolator provides complete isolation to any device connected via a copper-based Ethernet network.
- The Network Isolator prevents current flow resulting from differences in electrical potentials,hence protecting the connected devices and their users from stray external voltages or power surges which may be directly or inductively coupled onto the network lines.
- The Network Isolator facilitates the safe Ethernet connection of the product when incorporated as a part of the product
Specifications
| Name | Specifications |
|---|---|
| General | |

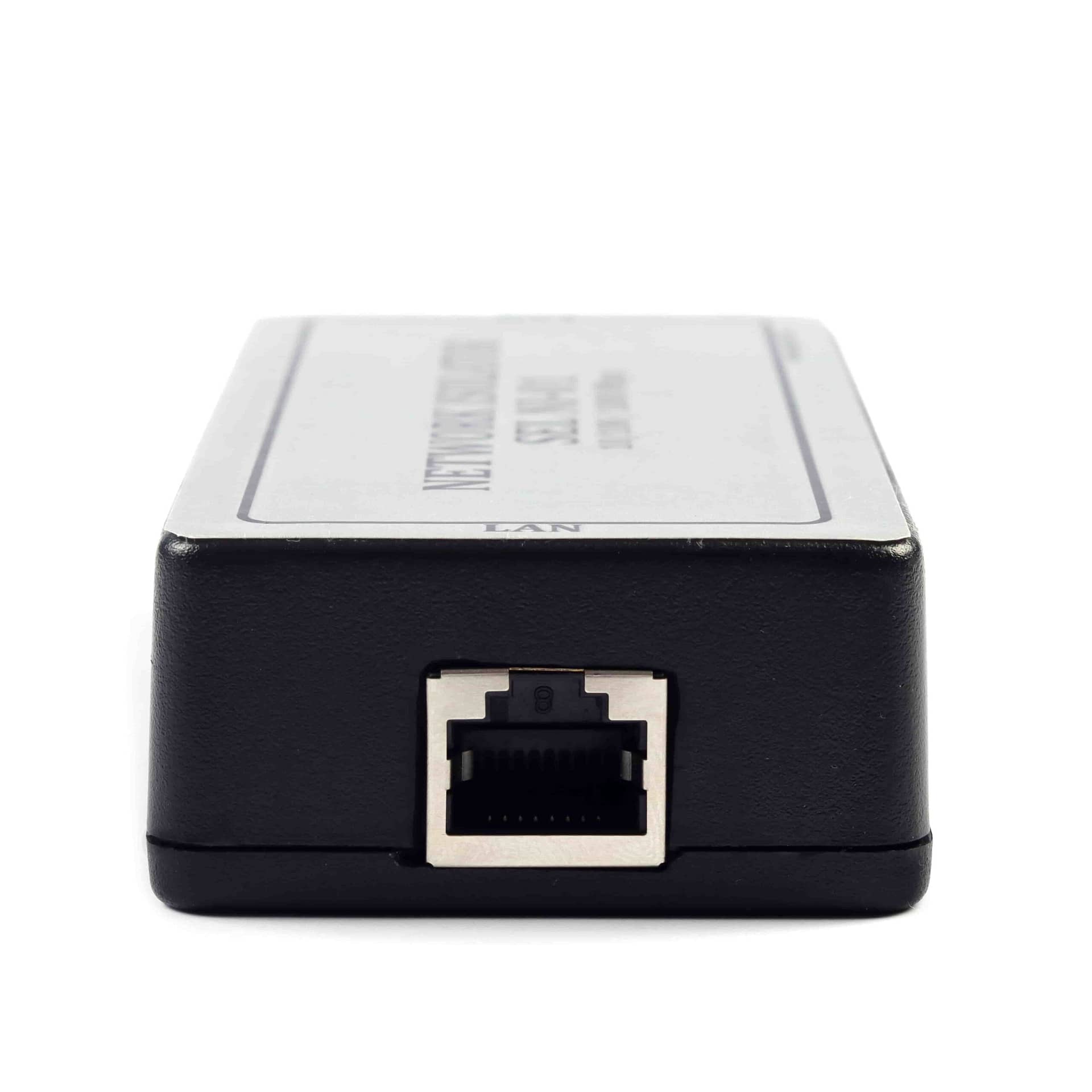

| Connectors | RJ45 Jack, Straight |
| RJ45 Mating Cycle | >250 Cycles |
| Transmission Speed | 10/100/1000 Base-T |
| Isolation Voltage | 6 kVA for 10/100 Mbps model & 4 kVA for 1000 Mbps model |
| Insertion Loss | -1.5 dB @ 100 KHz to 100 MHz |
| Crosstalk | -40 dB @ 1 MHz to 100 MHz |
| Environmental | |
| Operating temperature | -40 °C to 85 °C |
| Protection Rating | IP54 |
| Packaging | |
| Housing Colour | Black |
| Housing Material | Plastic |
| Dimensions | (LxWxH) 101mm(L) x 52mm(W) x 25mm(H) |
| Approximate Weight | 75g |
| Warranty | 12 Months |
