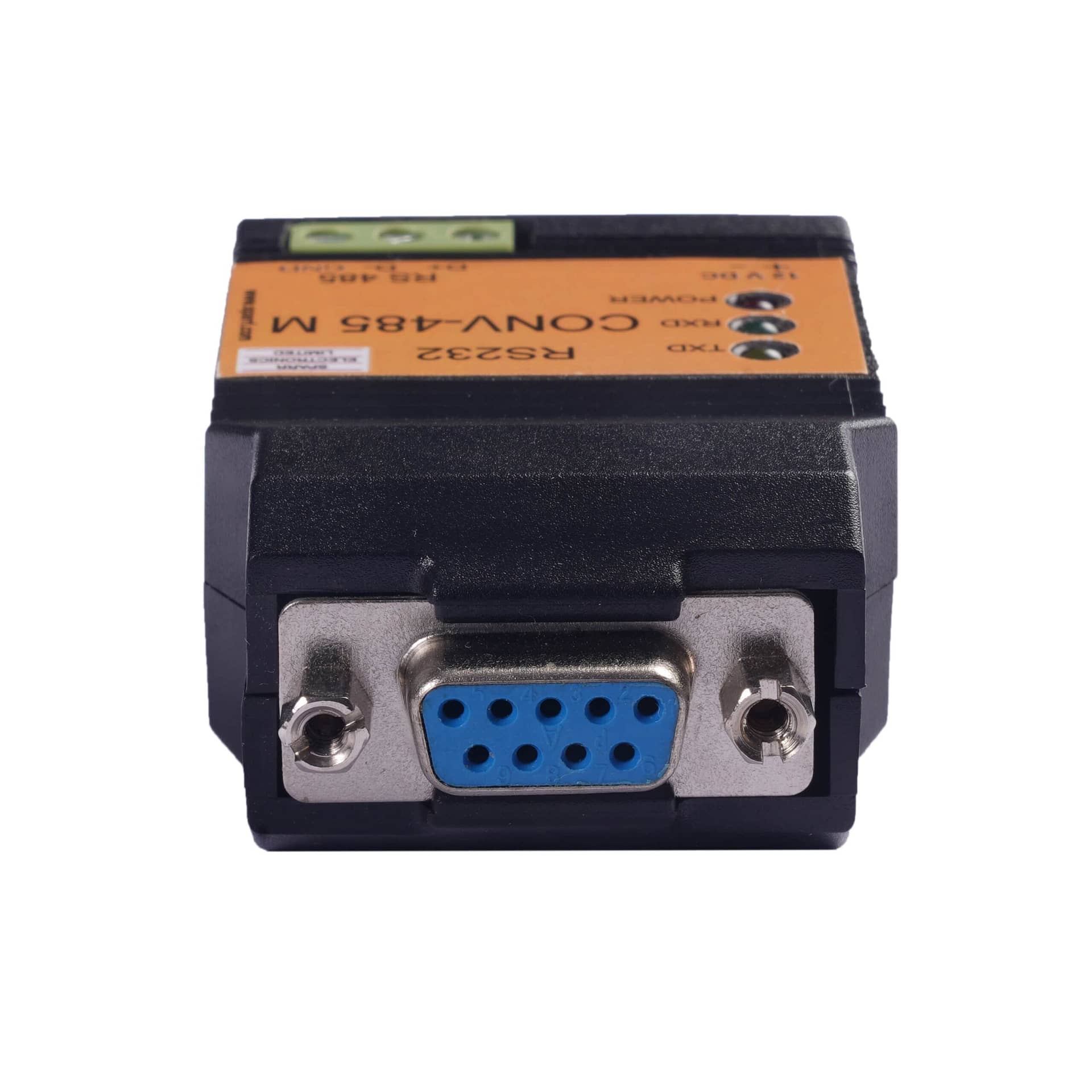

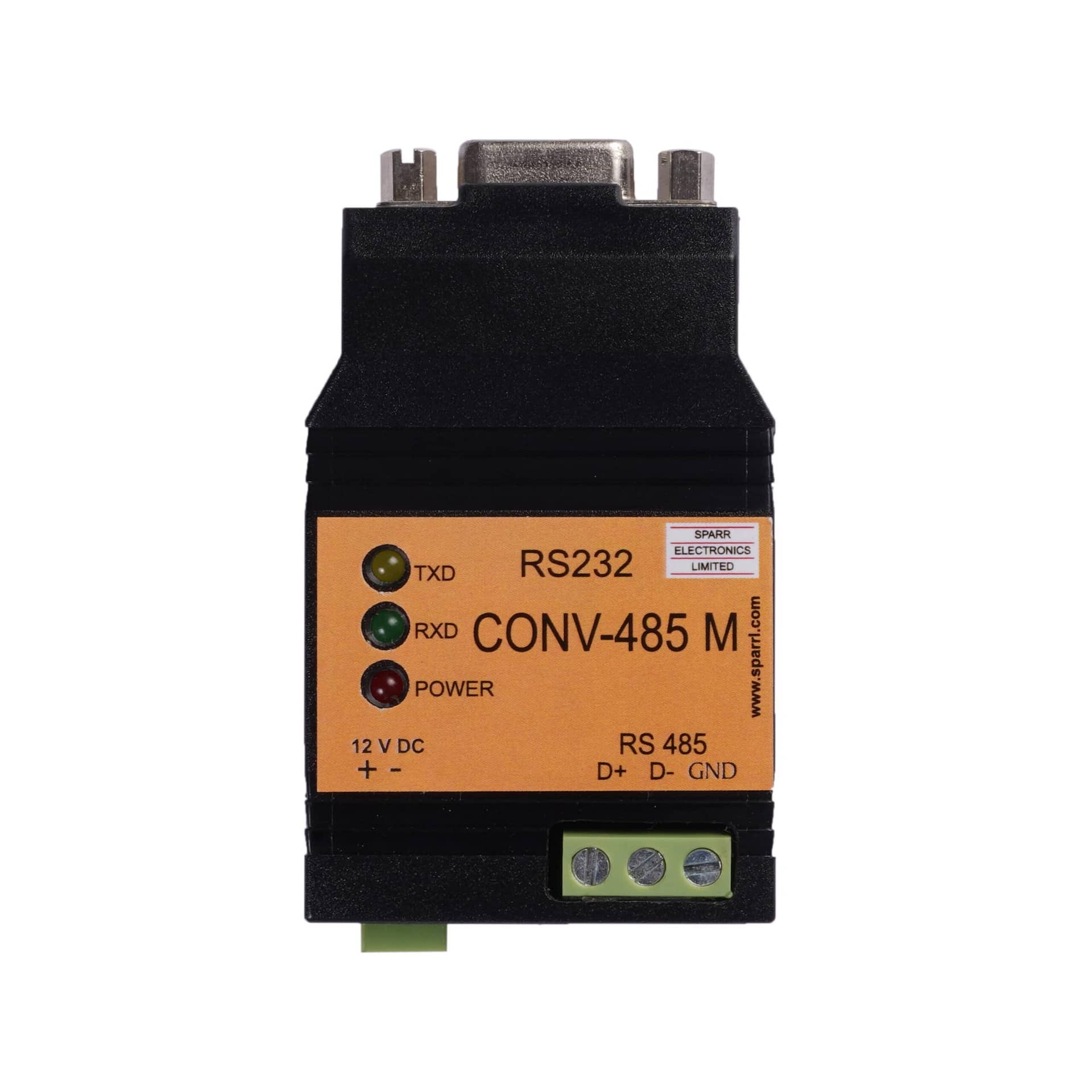

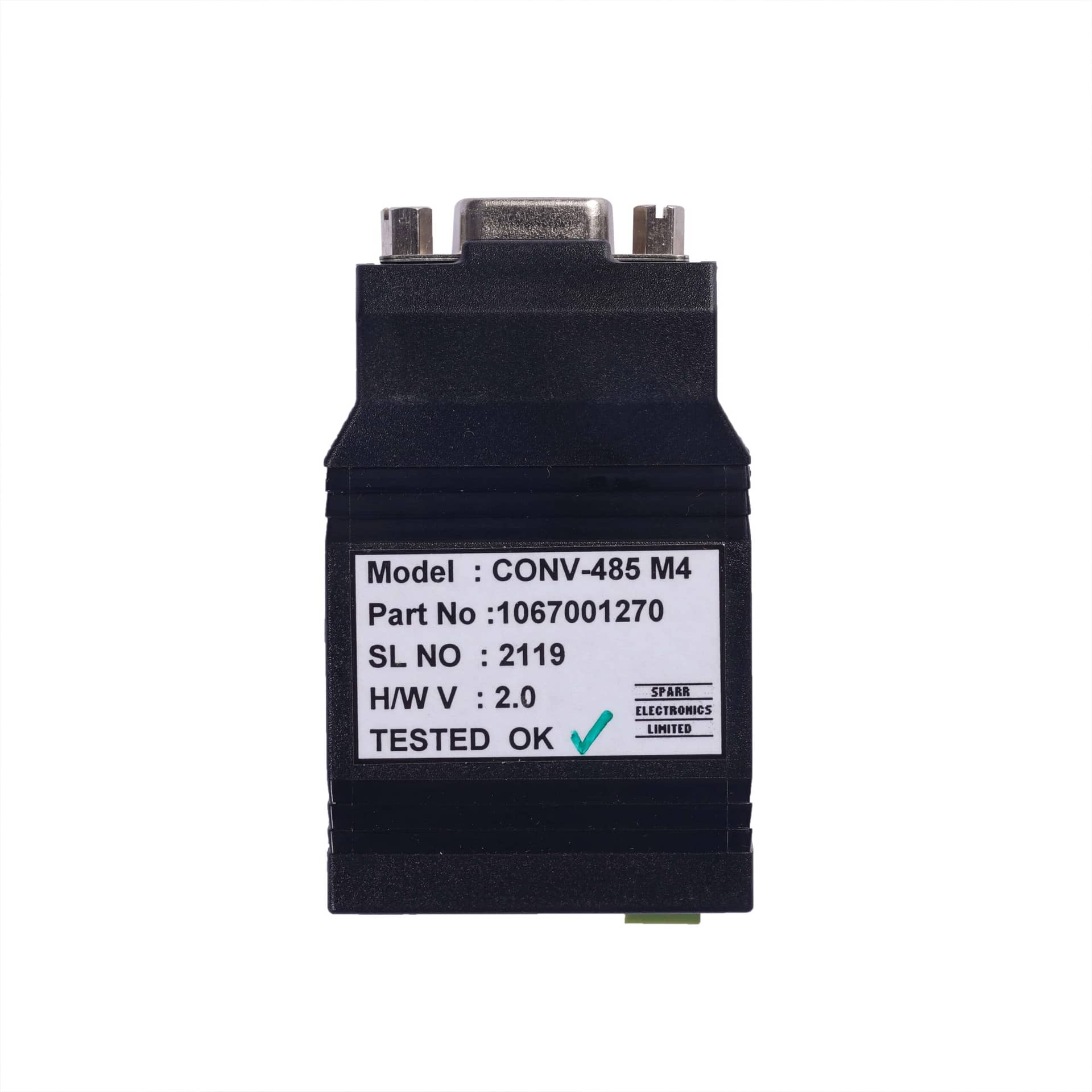

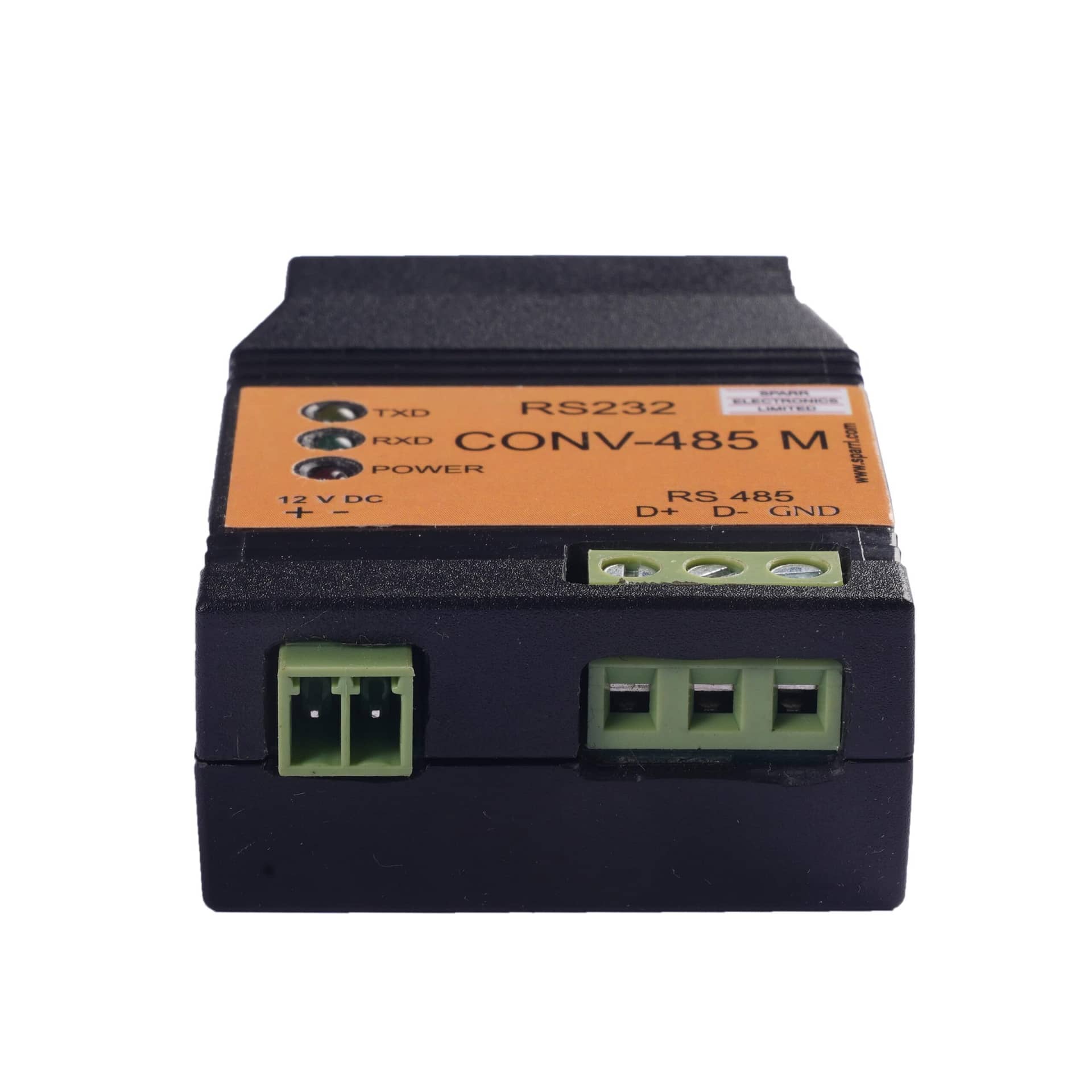

•The CONV-485M4 converts the RS 232 Serial Port signals to RS 485 signals for long
distance driving / interfacing devices supporting RS485 ports. Similarly, CONV-422M4
converts RS 232 Serial Port signals to RS 422 signals.
• CONV-485M4 & CONV-422M4 are available as external standalone units enclosed in
plastic casing, which takes power from the supplied power adaptor.
• The Converter is populated with Surface Mount components for increased reliability &
portability. Additionally, it offers consistent Isolation to Data signals while also
protecting the Serial Port from high voltage.
Specifications
| Name | Specifications |
|---|---|
| Interface | |
| Serial | RS232, RS485 or RS422 |
| Connectors | 9 Pin D - Type Female for RS2323 way screw terminal for RS485,5 way screw connector for RS422 & 2 way plug in screw terminal for power |
| Cable Length | 15 metres Maximum on RS232, 1200meters Maximum on RS485 or RS422 |
| Number of drivers | 32 on RS485 bus |
| Signal Isolation | 5000 VAC RMS. Optical Isolation to signals |
| Power Isolation | 1500 VDC |
| Baud Rate | 300 to 115200 baud |
| Indicators (LED) | |
| Yellow | Transmit Data (TxD). Lights up when there is a data sent to RS232 |
| Green | Receive Data (RxD). Lights up when there is a data received from RS232 |
| Red | Power ON |
| Power | |
| Voltage | 11-13 VDC . 12V 1A External Adaptor Provided. |
| Current | 50ma maximum |
| Environmental | |
| Operating | 0 °C to 70 °C |
| Storage | -40 °C to 85 °C |
| Packaging | |
| Dimensions | (LxWxH) 75mm(L) x 45mm(W) x 25mm(H) |
| Weight | 50g |
| Warranty | 12 Months |
