- Signal Isolator has high performance anti-surge and anti-interference capabilities.
- Industrial grade design with flame-retardant materials.
- Low-temperature drift, fast response and high efficiency.
- User friendly and pluggable screw connector.
- Optional DIN rail mount available.

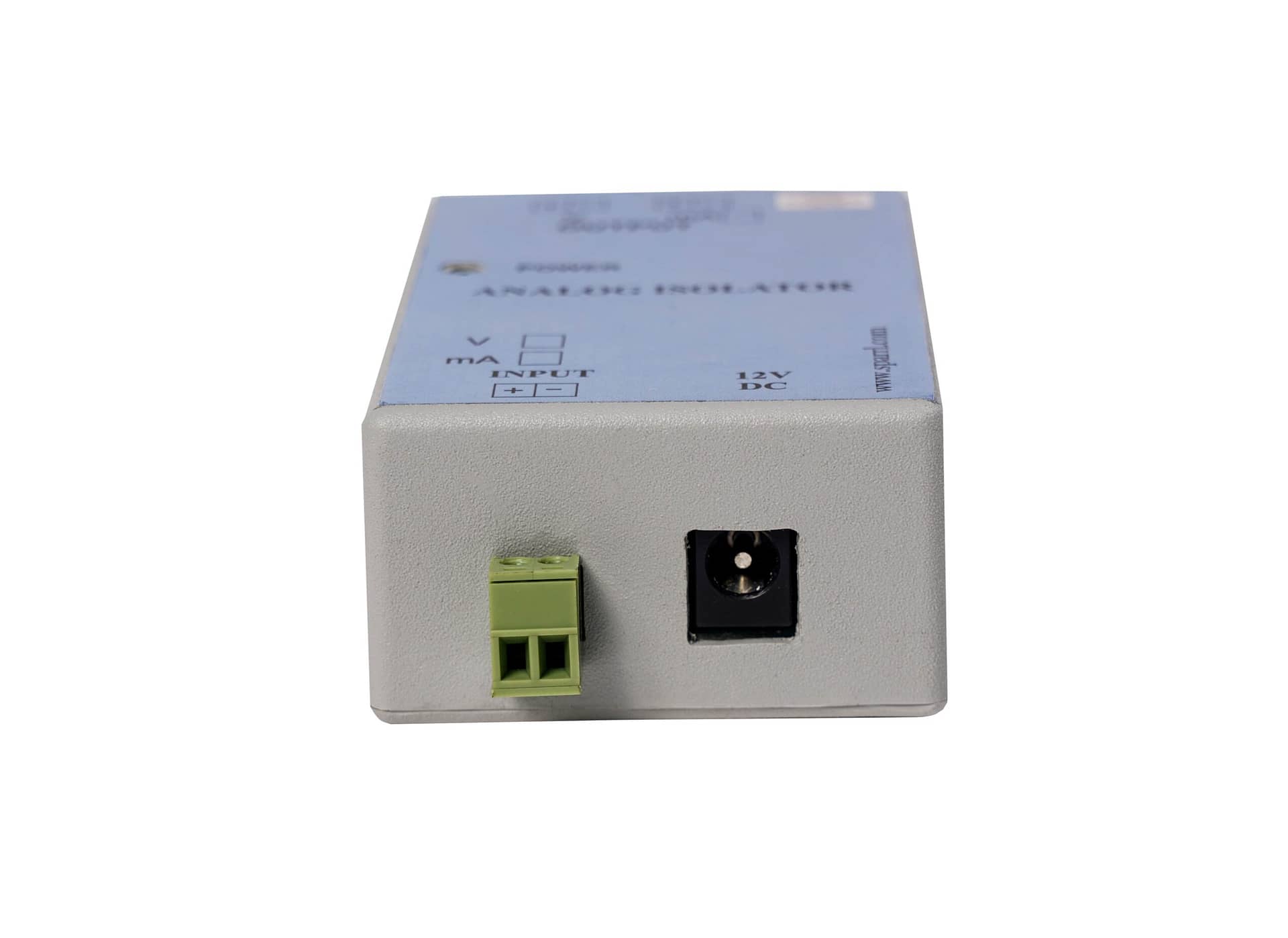

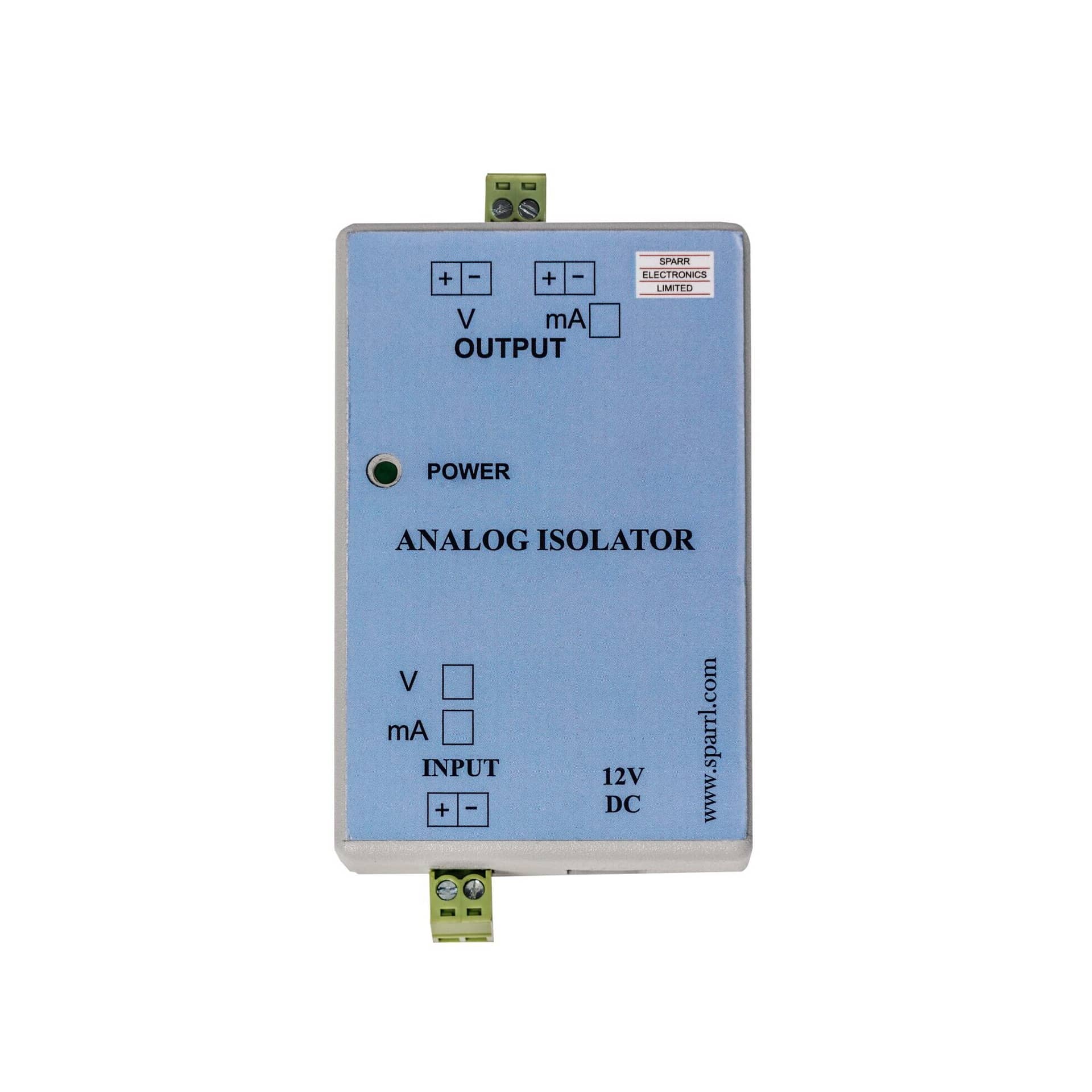

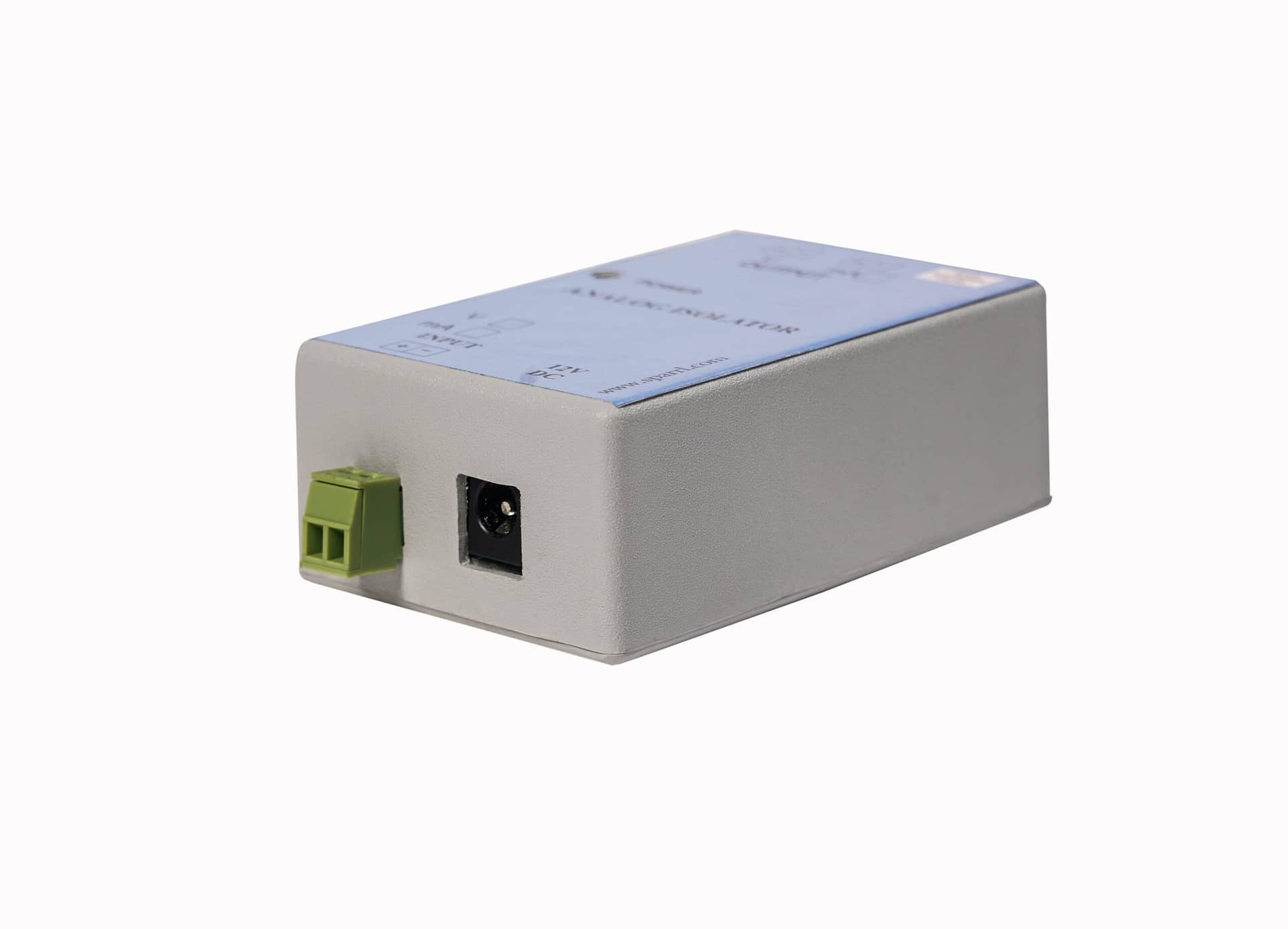

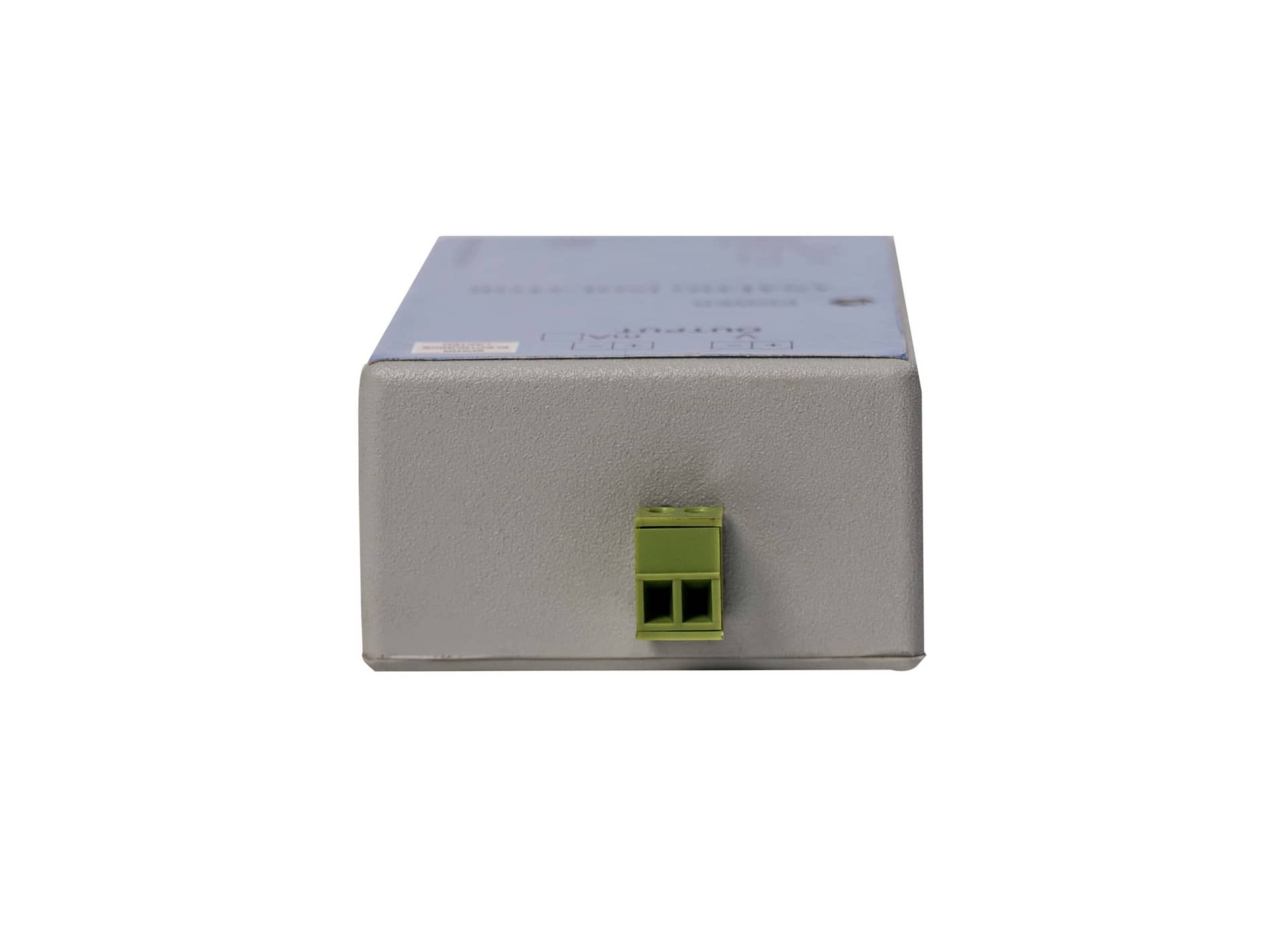

Analog Isolator (Signal Isolator)
Signal Isolator is a compact, yet rugged Isolator used for reliable isolation and
attenuation of industry-standard field signals.
Features
Specifications
| Input | - |
| Input Signal | 0-5V, 0-10V, 4-20mA, 0-20mA (optional) |
| Isolated distribution power to input transmitter | 24V, max 30mA (optional) |
| Input Impedance | ≤50Ω |
| Output | - |
| Output Signal | 0-5V, 0-10V, 0-20mA, 4-20mA (optional) |
| Output Load Resistance | RL≤500Ω (output is current signal); RL≥10KΩ (output is voltage signal) |
| Power | - |
| Power Supply | DC12V ±10% |
| Accuracy | ±0.3% F.S. |
| Response Time | ≤10mS (0-90%) (TYP) |
| Isolation | - |
| Insulation Resistance | ≥1000MΩ (among input, output, and power supply) |
| Environment | - |
| Operating Temperature | -20°C to +60°C (TYP) |
| Storage Temperature | -25°C to +70°C |
| Humidity | 85% R.H. non-condensation |
| Packaging | - |
| Dimensions (L x W x H) | 80mm x 50mm x 30mm |
| Weight | 75g |
Resources
Part Numbers
| Part Number | Part Name | Part Description | Contact |
|---|---|---|---|
| 2770004613 | 0-10V to 4-20mA | Isolator with 12VDC adaptor | Know More |
| 2770004937 | 4-20mA to 0-10V | Isolator with 12VDC adaptor | Know More |
| 2770004721 | 0-10V to 0-10V | Isolator with 12VDC adaptor | Know More |
| 2770004829 | 4-20mA to 4-20mA | Isolator with 12VDC adaptor | Know More |
| 2770015626 | 0 - 482.6 Hz to 4 - 20mA | Isolator with 12VDC adaptor | Know More |
