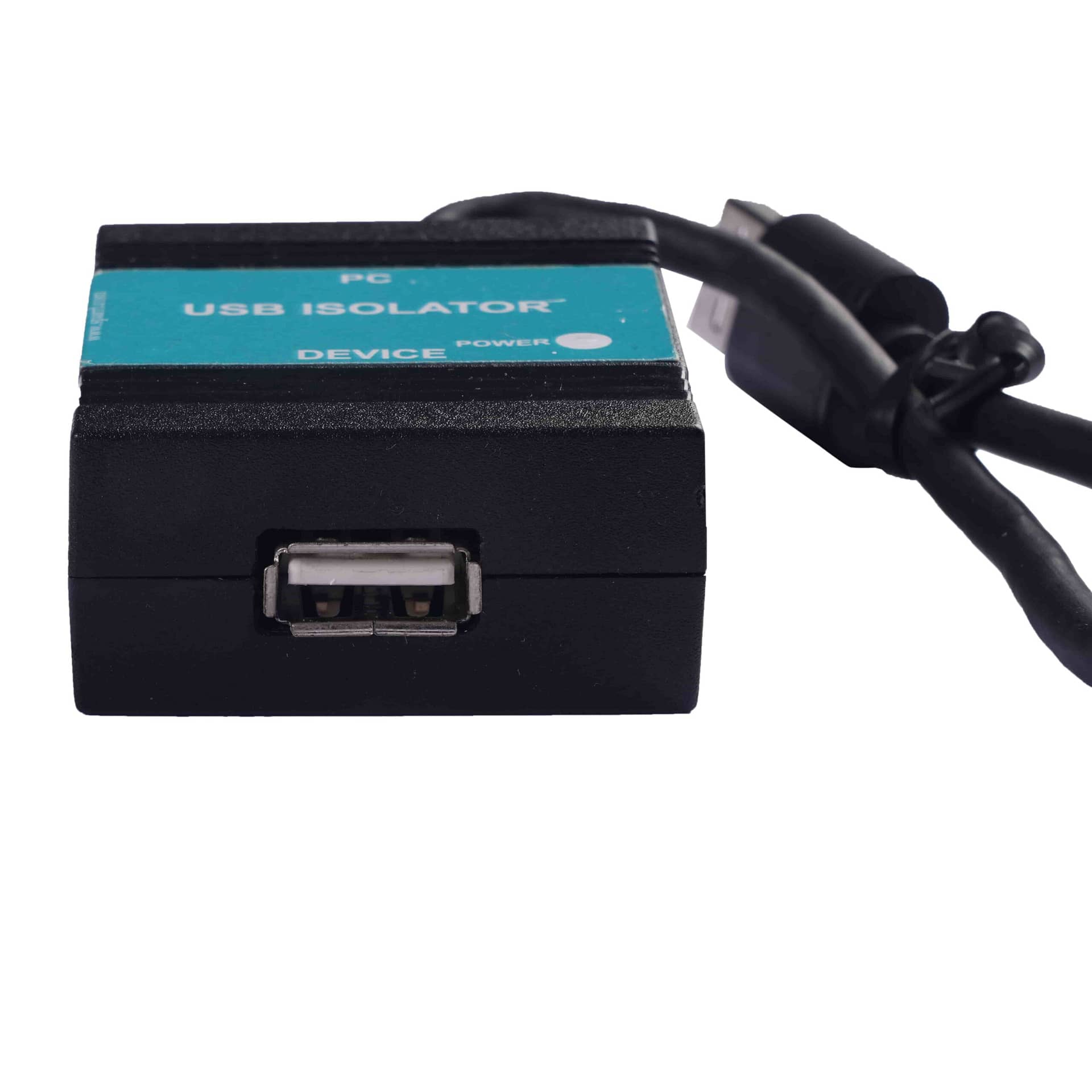

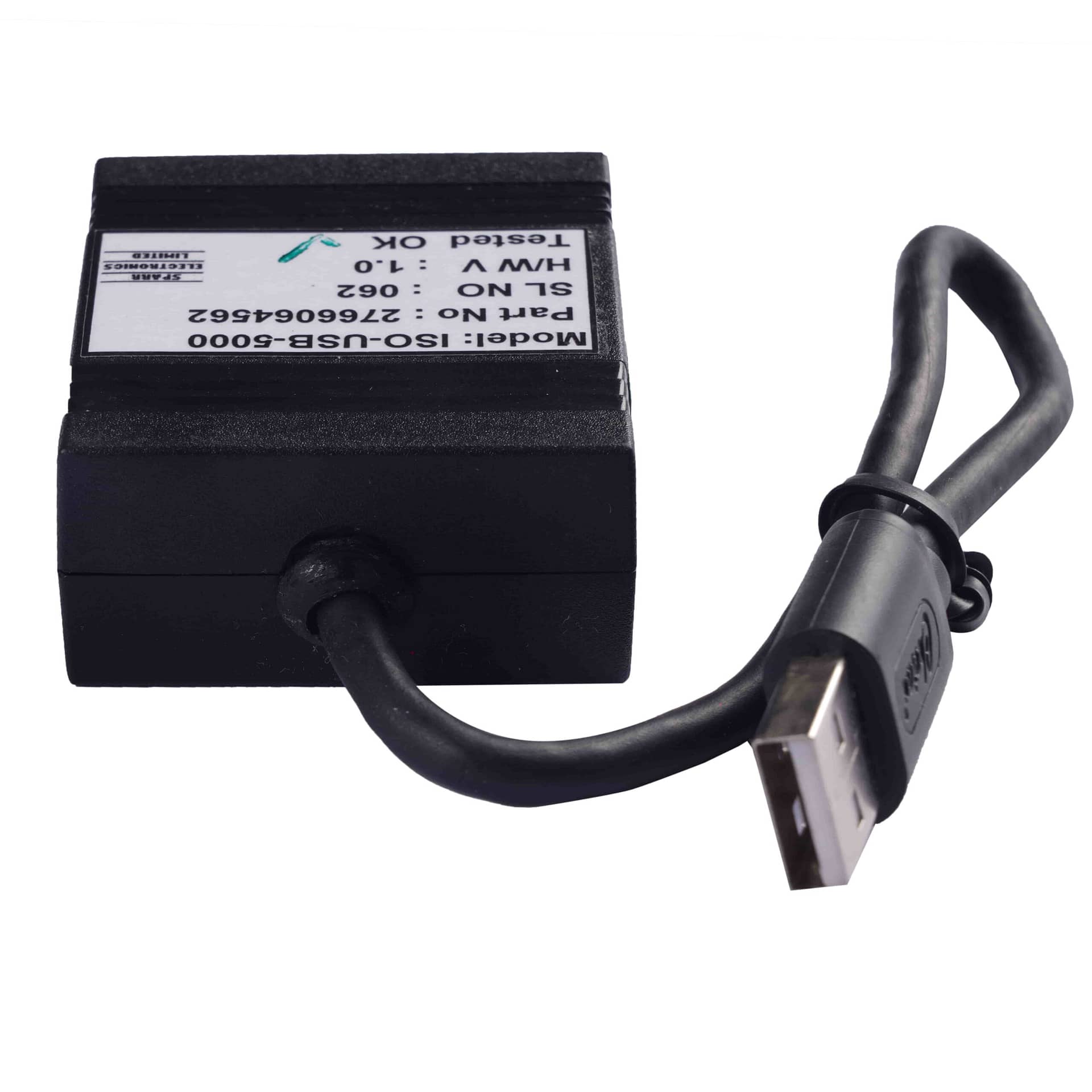

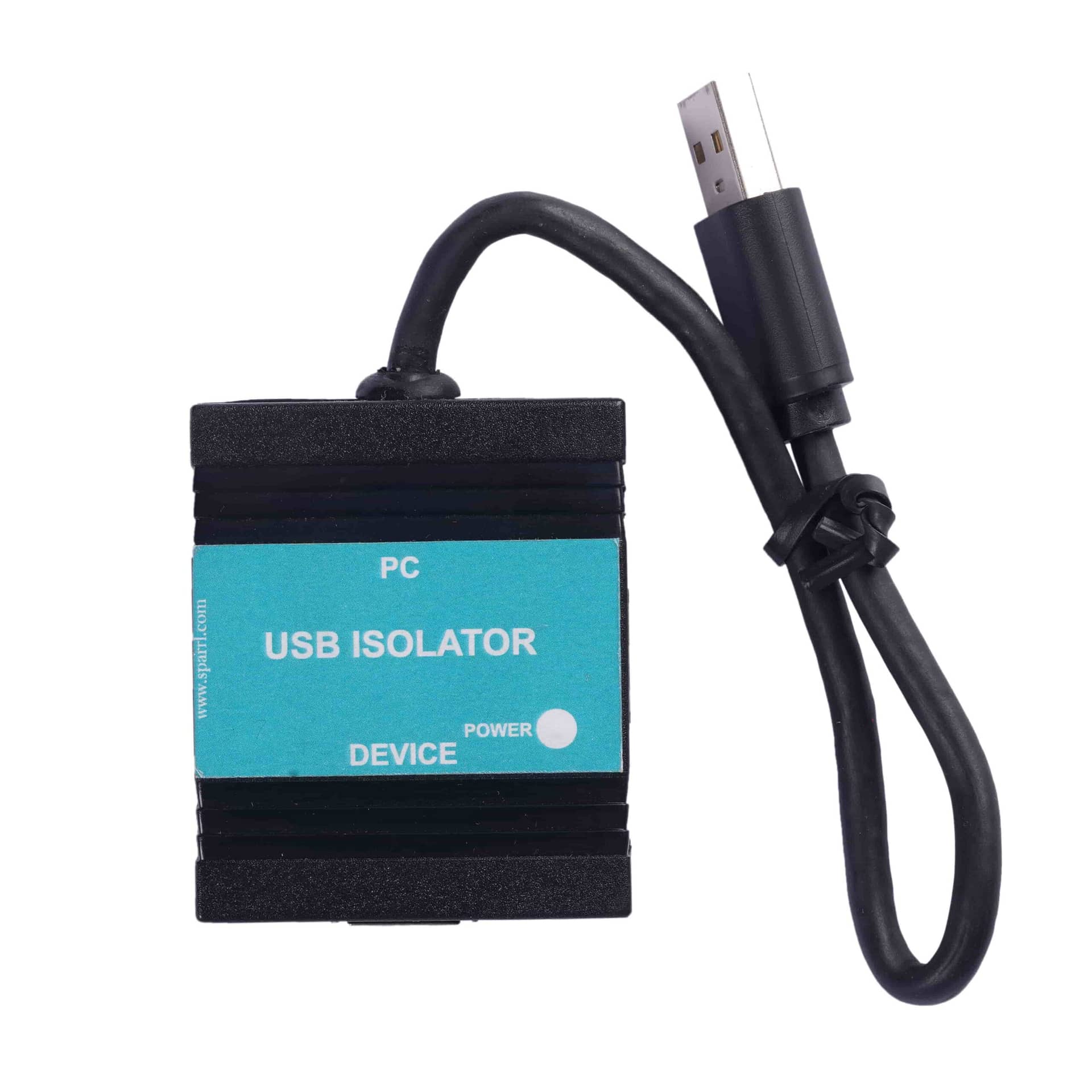

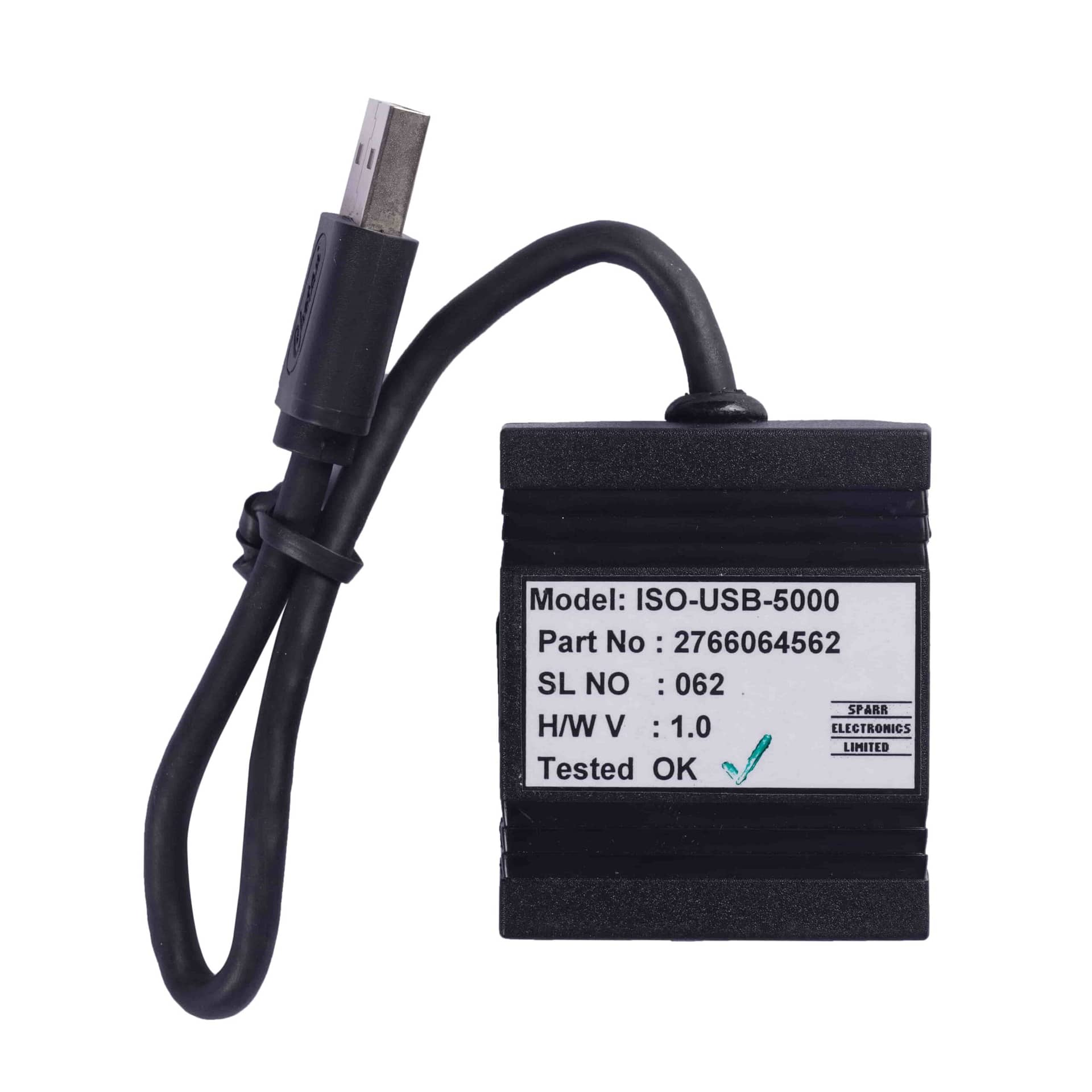

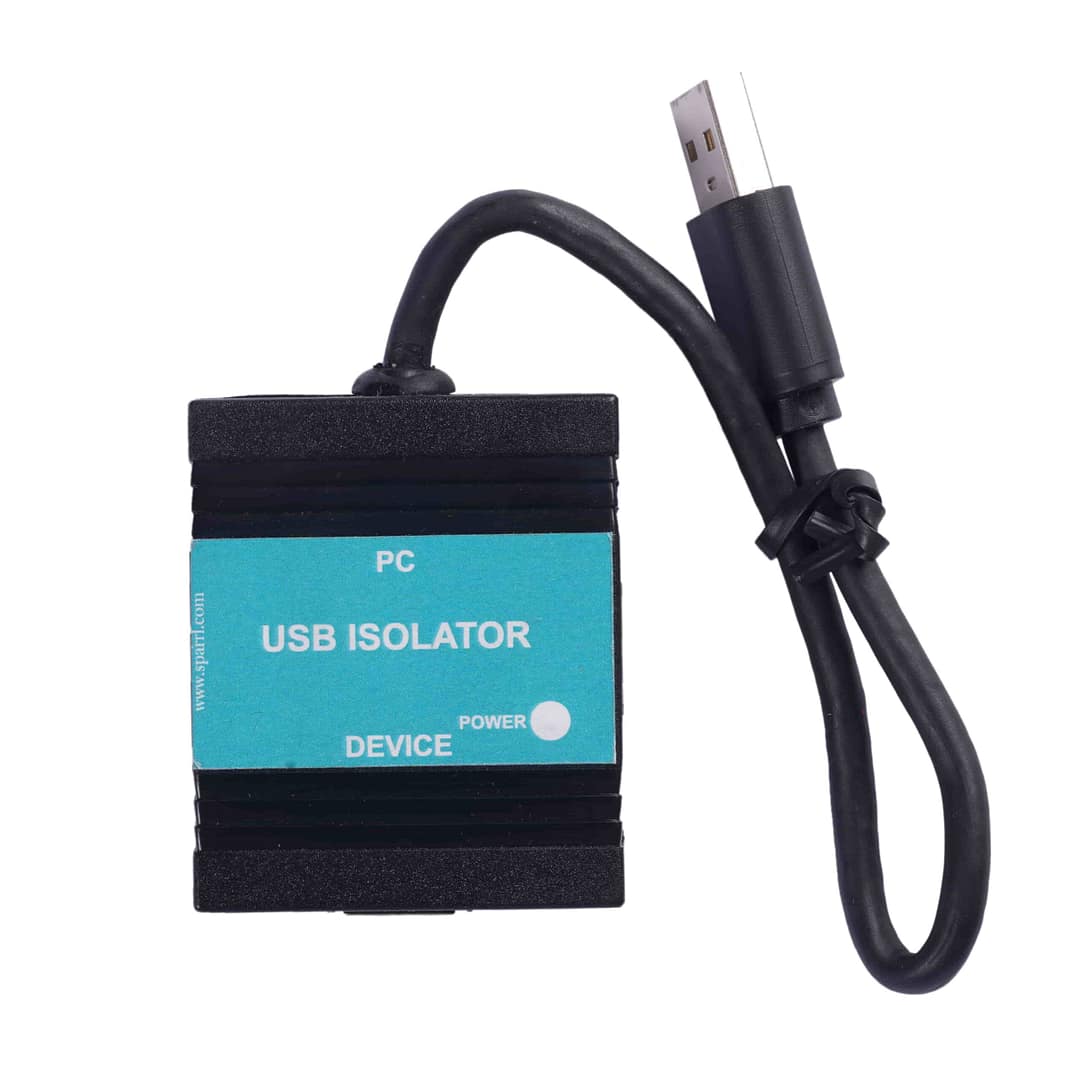

- The USB Isolator is primarily intended to provide complete isolation between
expensive computers / systems and USB devices, so that they are protected against
any inadvertent damage due to electrical disturbances. - ISO-USB is available as a compact unit enclosed in a plastic casing, which draws
power from the PC. - The isolator is populated with surface mounted components for improved
reliability and decreased unit size. It is equipped with Isolation to data signals
while also protecting the USB port from high voltage.
Specifications
| Name | Specifications |
|---|---|
| Interface | |
| USB | USB 2.0 Full speed |
| Connectors | A type male for upstream/ PC, |
| Cable Length | A type female for downstream/Device |
| Signal Isolation | 10 CM |
| Power Isolation | 2500 VAC RMS or 5000 VAC RMS,5000 VAC RMS |
| Indicators (LED) | |
| Red | Power ON |
| Power | |
| Voltage | 5 VDC. |
| Current | 100ma max to the Device |
| Environmental | |
| Operating | 0 °C to 70 °C |
| Storage | -40 °C to 85 °C |
| Packaging | |
| Dimensions | (LxWxH) 51mm(L) x 43mm(W) x 21mm(H) |
| Weight | 50g |
| Warrant | 12 Months |
