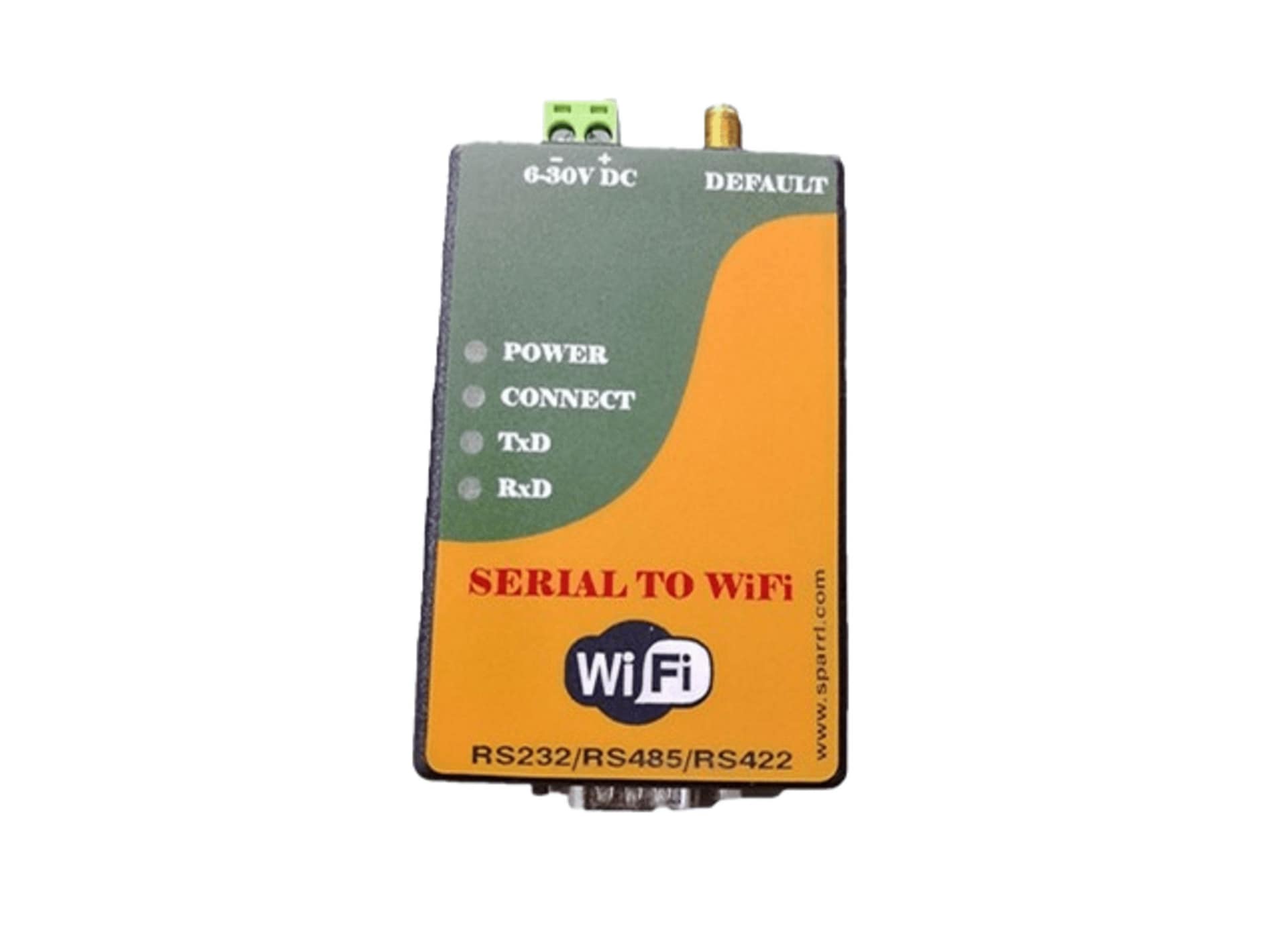

Serial to Wi-Fi Converter

Features

Supports multiple serial interfaces.
Enables serial devices to communicate over Wi-Fi networks seamlessly.
Works in TCP Server, TCP Client, UDP, and HTTP modes.
Also supports Modbus communication over RS485 serial interface with the connected device.
Supports data encryption and authentication.
Supports up to 115200 bps.
Operates with 6–30V DC supply.

Specifications

Interface	RS 232, RS 485/RS422
Connector	9 Pin Male D-Type for RS 232 and RS 485/RS422
Baud Rate	300 to 115200 bps
Data Bits	7 or 8
Parity	Odd, Even and No Parity
Stop Bits	1 or 2
Standard	802.11 b/g/n
Networking Capability	Soft Access Point, Station Mode
Security Protocols	WPA, WPA2, WPS
Communication Protocols	TCP, UDP and MODBUS TCP
Antenna	External Antenna with Magnetic catch & 3 meter cable
Red	Power ON
Yellow	Connection Status
Green	Transmit Data from Serial
Yellow	Receive Data to Serial
Configuration	Web browser, Android App
Input	6 to 30 V DC, 300 mA
RS485/RS422 Nodes	Up to 32
RS485/RS422 Cable Length	1200 meters maximum
RS485/RS422 Isolation	2500 Vrms
Operating	0 °C to 55 °C
Storage	0 °C to 85 °C
Dimensions	100 mm (L) x 54 mm (W) x 32 mm (H)
Weight	80 g
Warranty	12 Months

Resources

Part Numbers

Part Number	Part Name	Part Description	Contact
2766060966	EAD-01WN32-232	Converter with 12V adaptor and antenna	Know More
