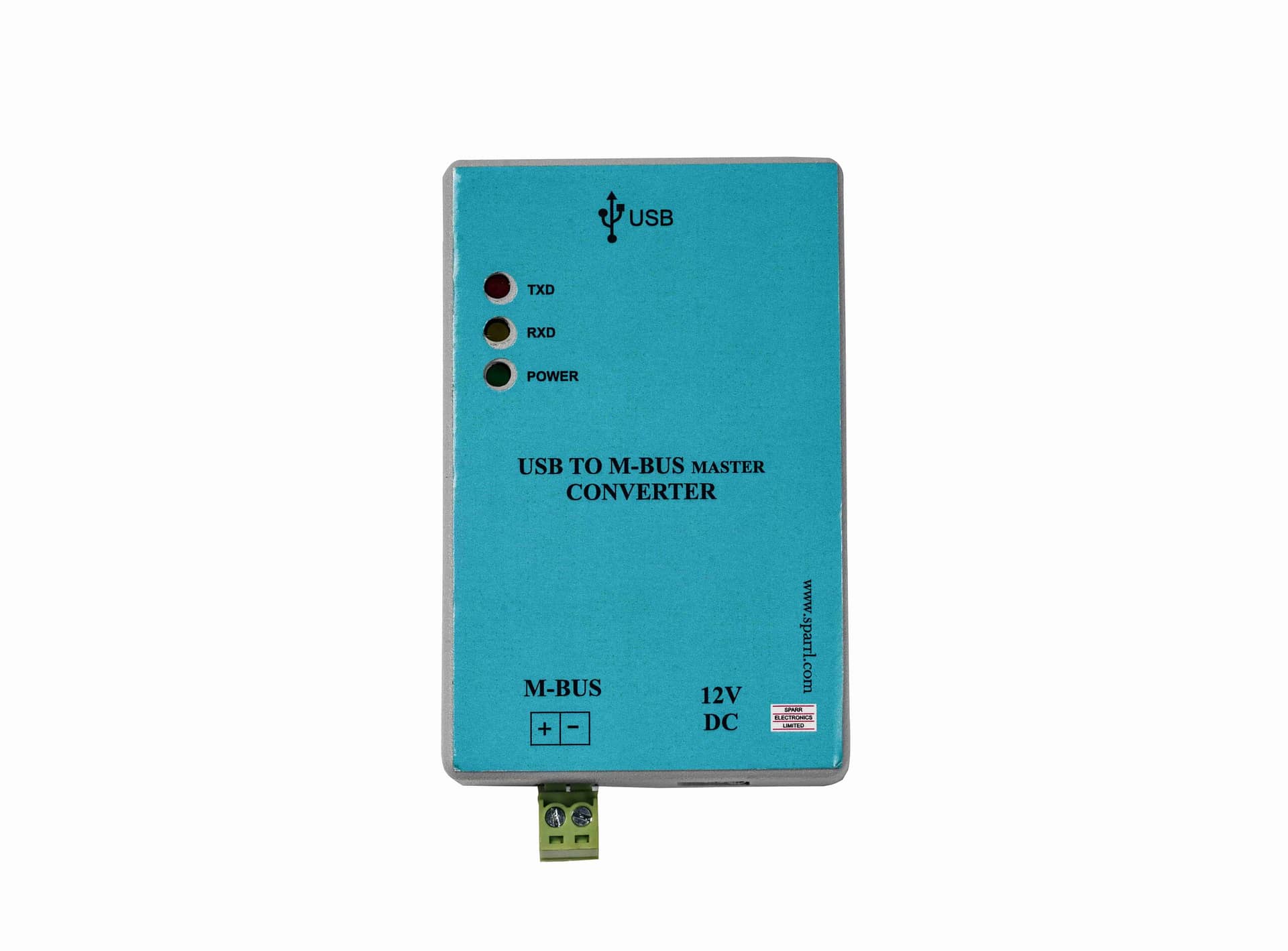

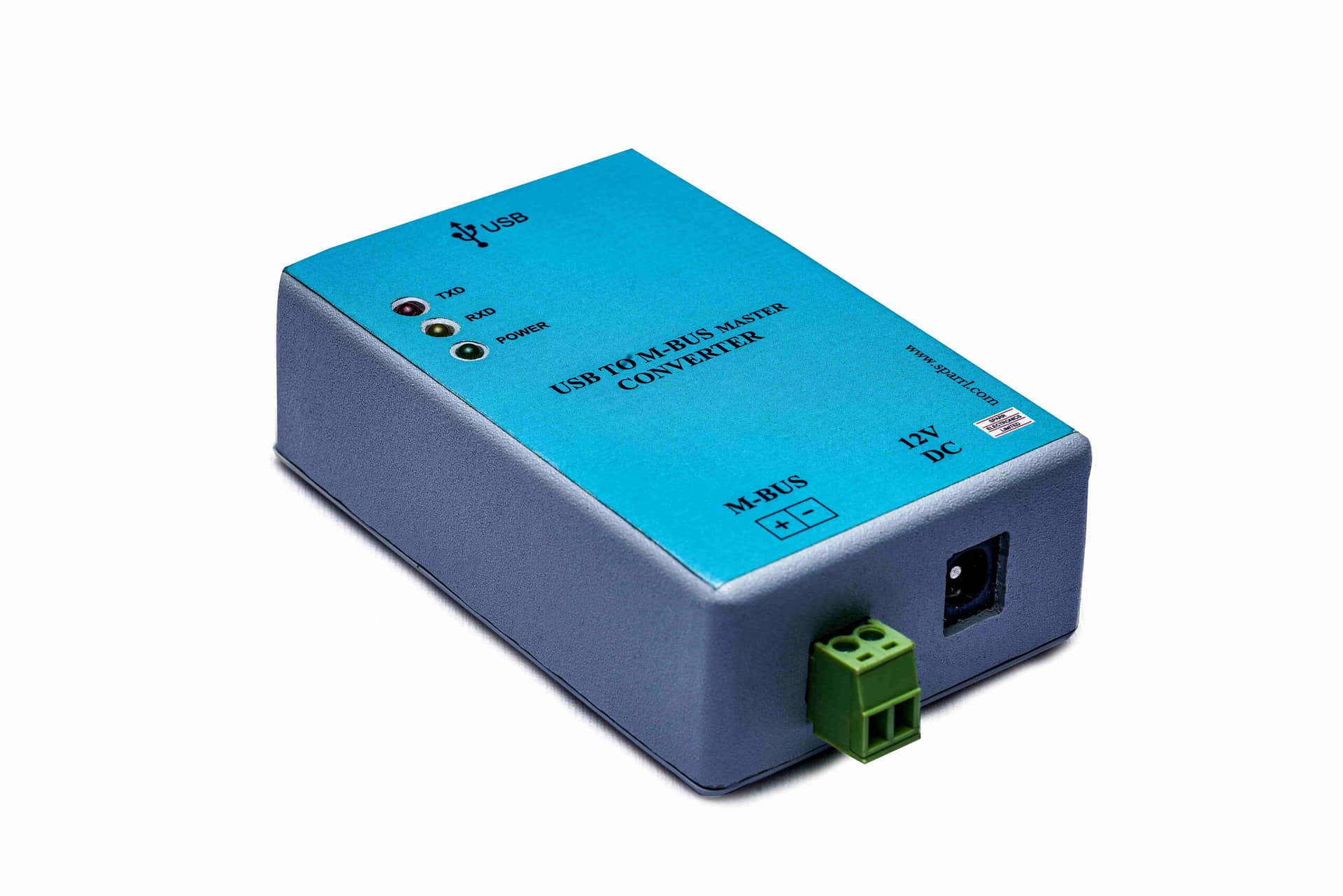

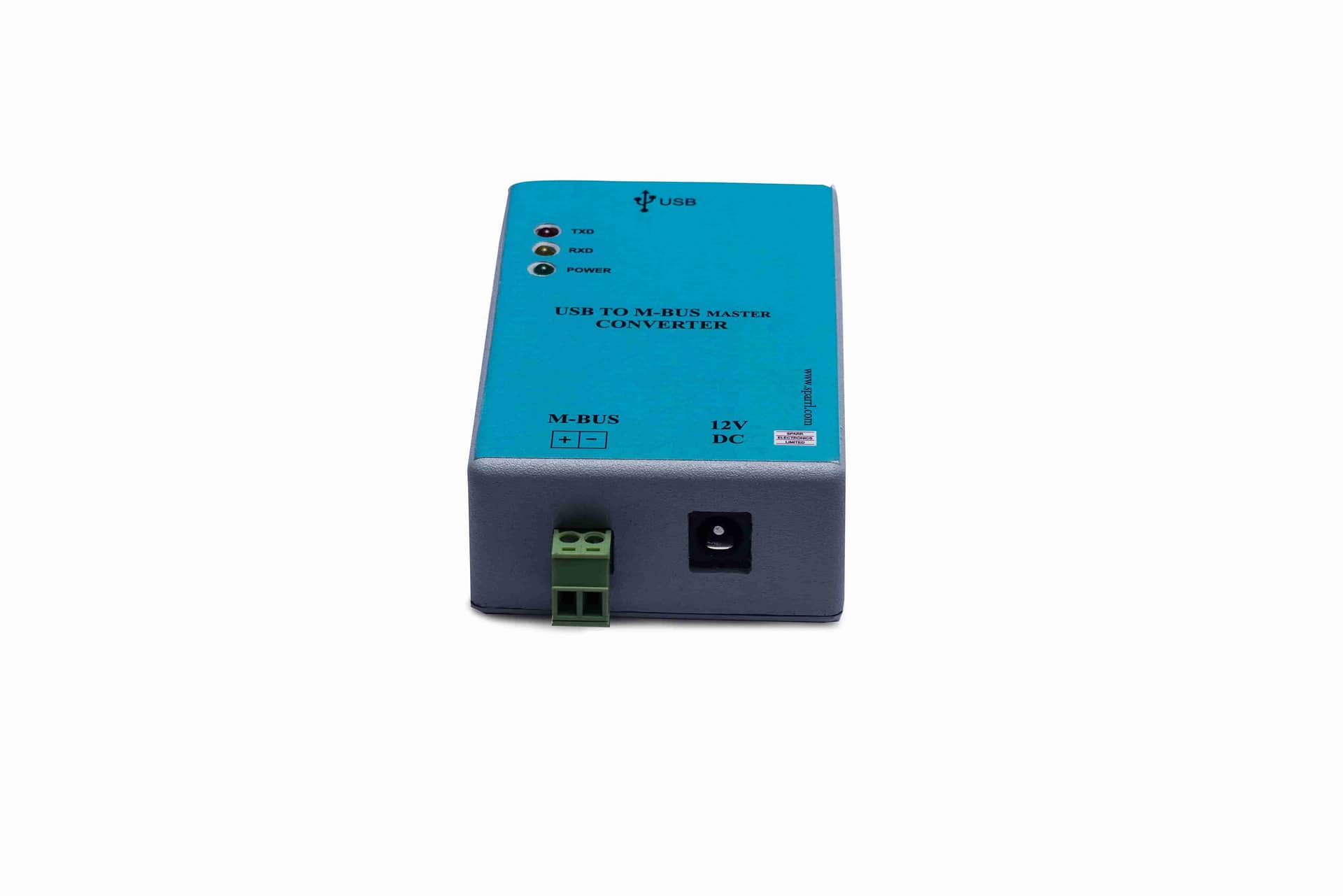

- This device allows the configuration of M-Bus slaves and readout of M-Bus networks
with up to 10 meters. The converter for mobile use as a service tool due to the small
dimensions, the light construction and the power supply from the USB port.
Specifications
| Name | Specifications |
|---|---|
| Interface | |
| USB | 2.0 full speed, Works with Windows 32/64 bit, Android, Linux |
| Connectors | Type C for USB, 2 way plug in screw terminal for M-BUS |
| M-BUS | As a Master |
| Cable Length | 500 metres Maximum on M-Bus, 1.5 meters on USB. |
| Number of Slaves | 1 USB powered, 10 with External 12V power adaptor |
| Bus Voltage | Minimum 32V, 100 Ohms internal resistor |
| Bus Current | 15mA (10 unit load) |
| Baud rate | 300 to 9600bps |
| Isolation | 1500 VDC |
| Indicators (LED) | |
| Red | Transmit Data (TxD). Lights up when there is a data sent to M-bus device |
| Yellow | Receive Data (RxD). Lights up when there is a data received from M-bus device |
| Green | Power ON |
| Power | |
| Voltage | 5 VDC from USB port, or with 12V DC, if more bus current required. 12V 1A External Adaptor Provided. |
| Power | 1.5W maximum |
| Environmental | |
| Operating | 0 °C to 70 °C |
| Storage | -40 °C to 85 °C |
| Packaging | |
| Dimensions | (LxWxH) 80mm(L) x 50mm(W) x 25mm(H) |
| Weight | 100g |
| Warranty | 12 Months |
