- The USB to RS 485 is an intelligent device which connects to a PC’s Universal Serial
Bus (USB) port providing a high speed asynchronous RS 485 / RS 422 serial port for
communication with RS 485 devices. - The USB 485 M Converter provides easy connectivity between the PC and standard
communication ports. - The device can easily be added or removed once plugged in to the USB port of a
computer since it appears as COM port. This USB 485 M is provided with TxD /RxD
LEDs for indicating communication status and supports a maximum communication
speed of 500Kbps. - Additionally, it also protects the Serial Port from high voltage (2500 V).
Specifications
| Name | Specifications |
|---|---|
| Interface | |
| Serial | RS485 (2 wire)/ RS422(4 wire) |
| USB | USB V 1.1 and 2.0 Compatible |
| Connectors | |

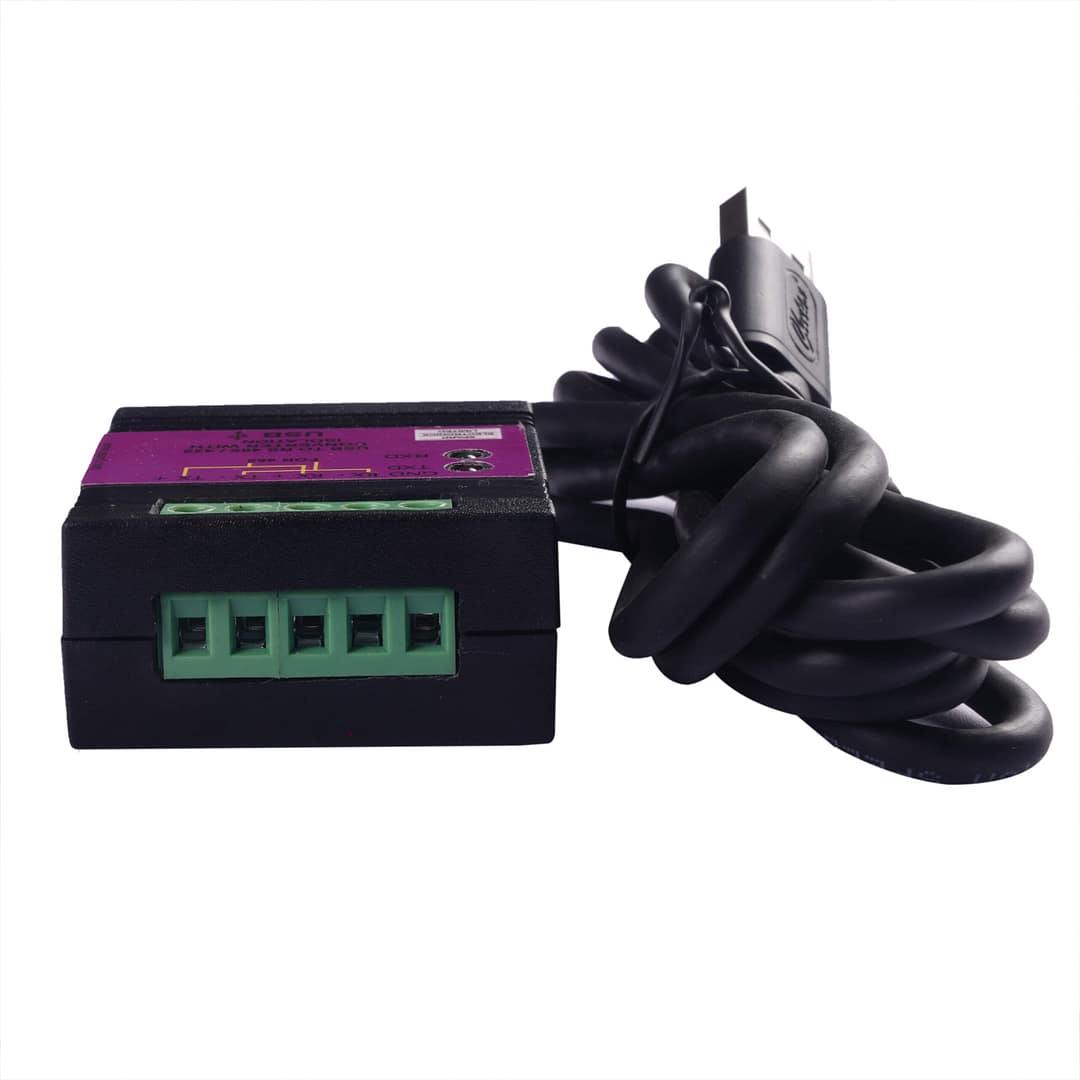

| RS485/RS422 | 5-pin Screw type connector |
| USB | Type A 4pin plug |
| RS485 / RS422 | |
| Nodes | Up to 256 |
| Cable Length | USB 1.5 metres, RS485 1200 meters maximum |
| Signal Isolation | 2500 VAC RMS. Optical Isolation to signals |
| Power Isolation | 1500 VDC |
| Baud Rate | 300 to 115200 Kbps |
| Stop Bits | 7 or 8 |
| Parity | None, Even, Odd, Mark, Space |
| Supported OS | Windows XP - Embedded, Vista, CE 4.2 / 5.0 / 6.0, Windows 7, 10, 2000,Server 2003, Server 2008, MACOS8/9OS - X, Linux 2.4 & greater |
| Software Driver | Plug and Play for most operating systems |
| Supports | Full Standard RS485/ RS422 Serial interface signals |

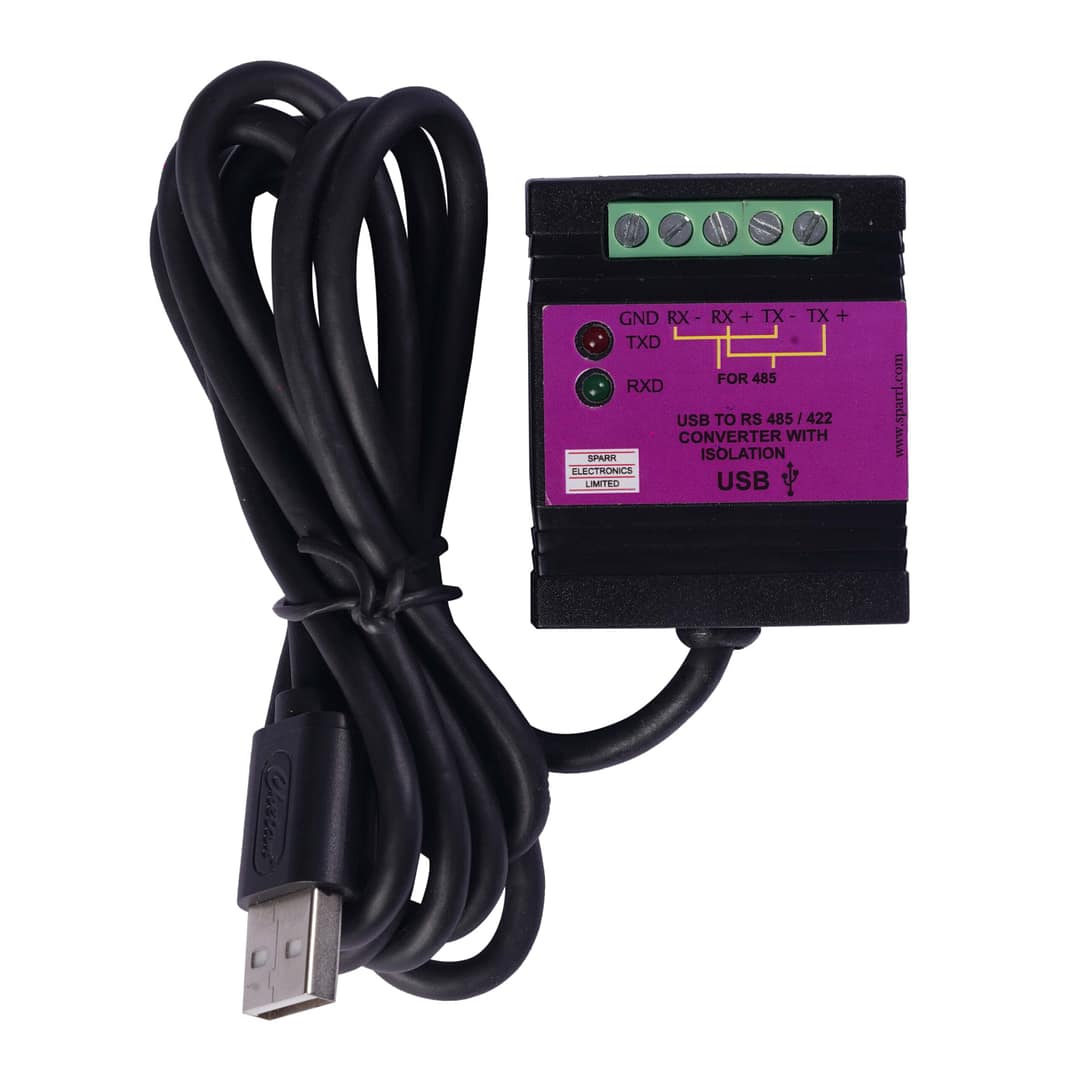

| Indicators (LED) | |
| Red | Transmit Data (TxD) |
| Green | Receive Data (RxD) |
| Power | |
| Input | USB port powered |
| Environmental | |
| Operating | 0 °C to 70 °C |
| Storage | -40 °C to 85 °C |
| Packaging | |
| Dimensions | (LxWxH) 51mm(L) x 43mm(W) x 21mm(H) |
| Weight | 75g |
| Warranty | 12 Months |
| Components Used | Complies with UL1577, UL60950-1 |
