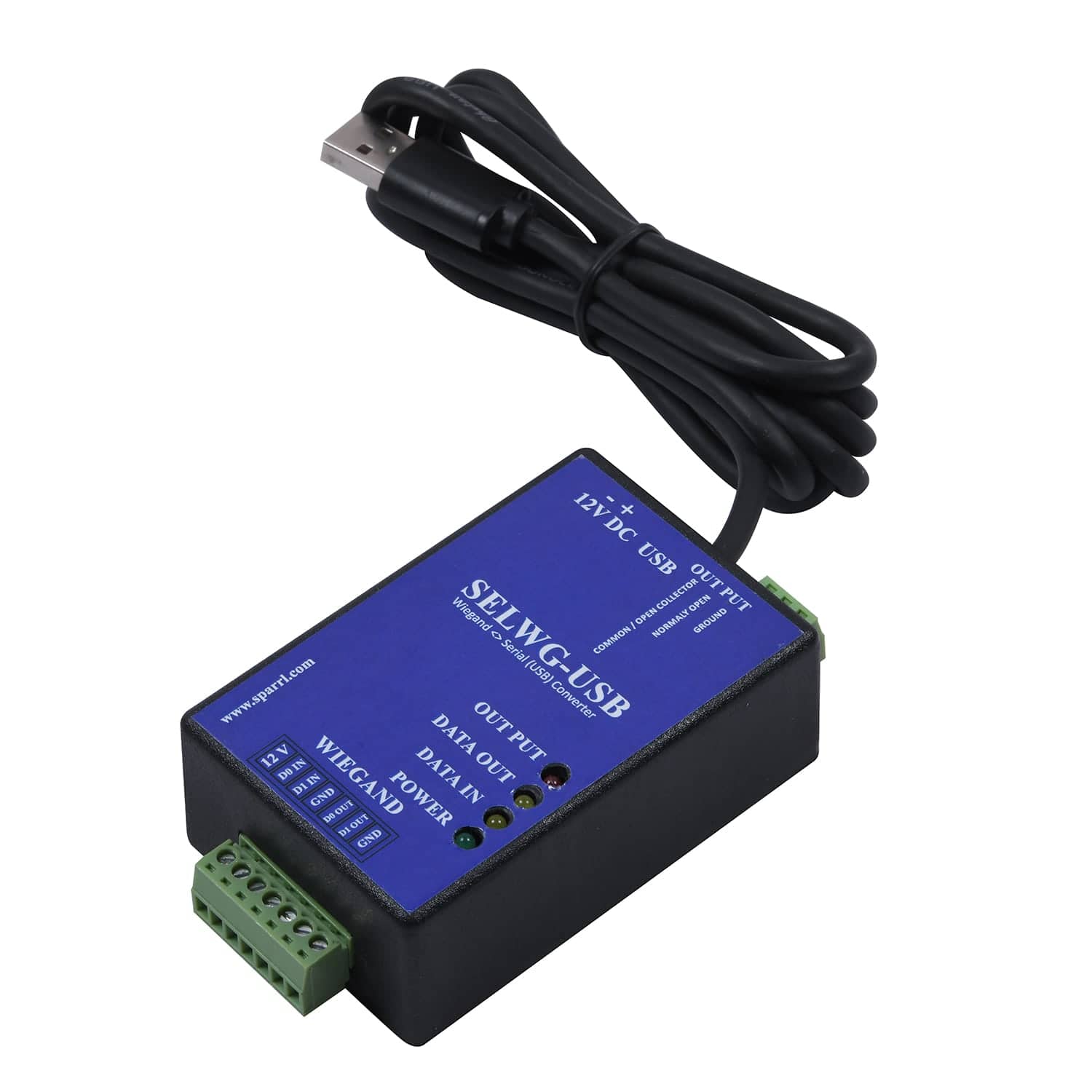

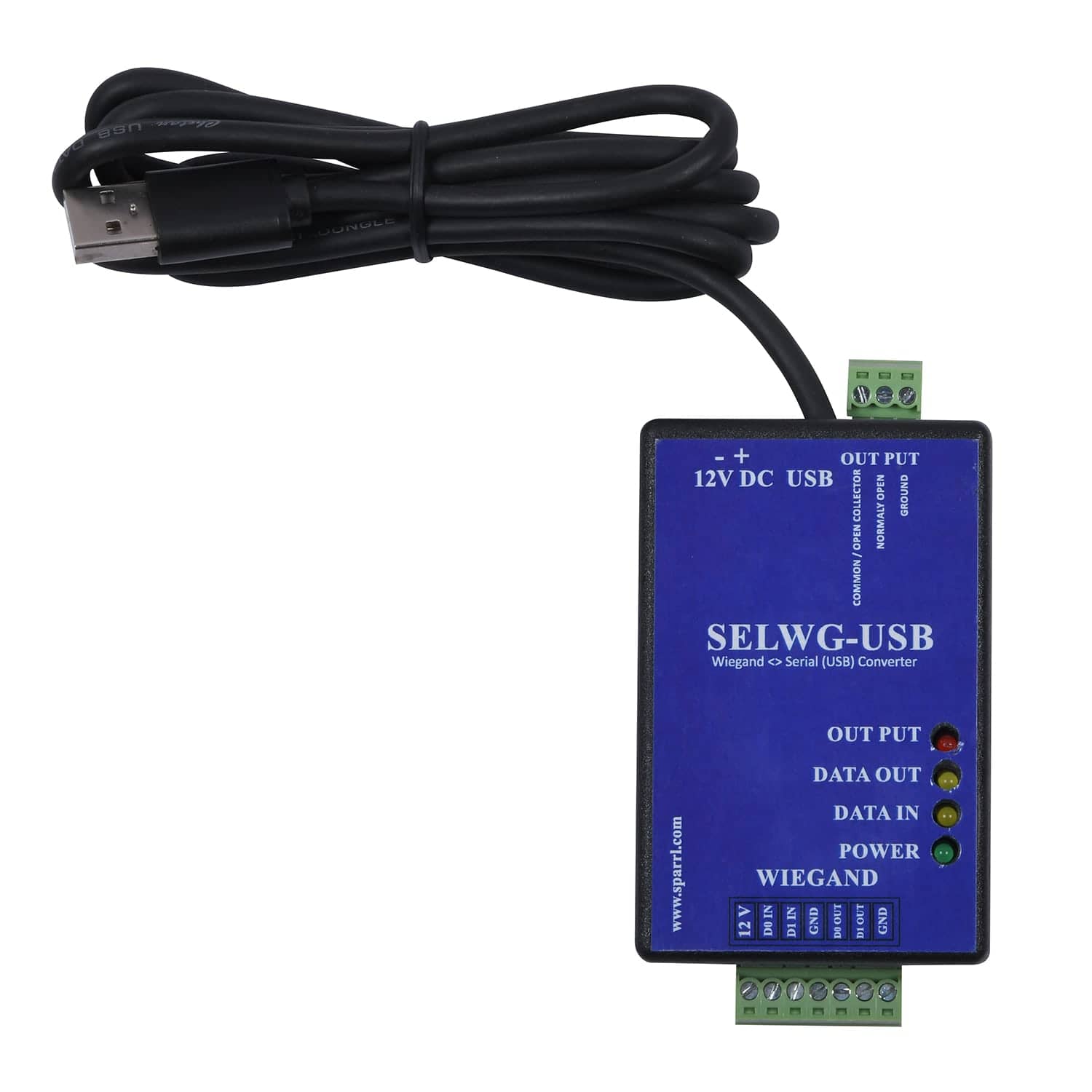

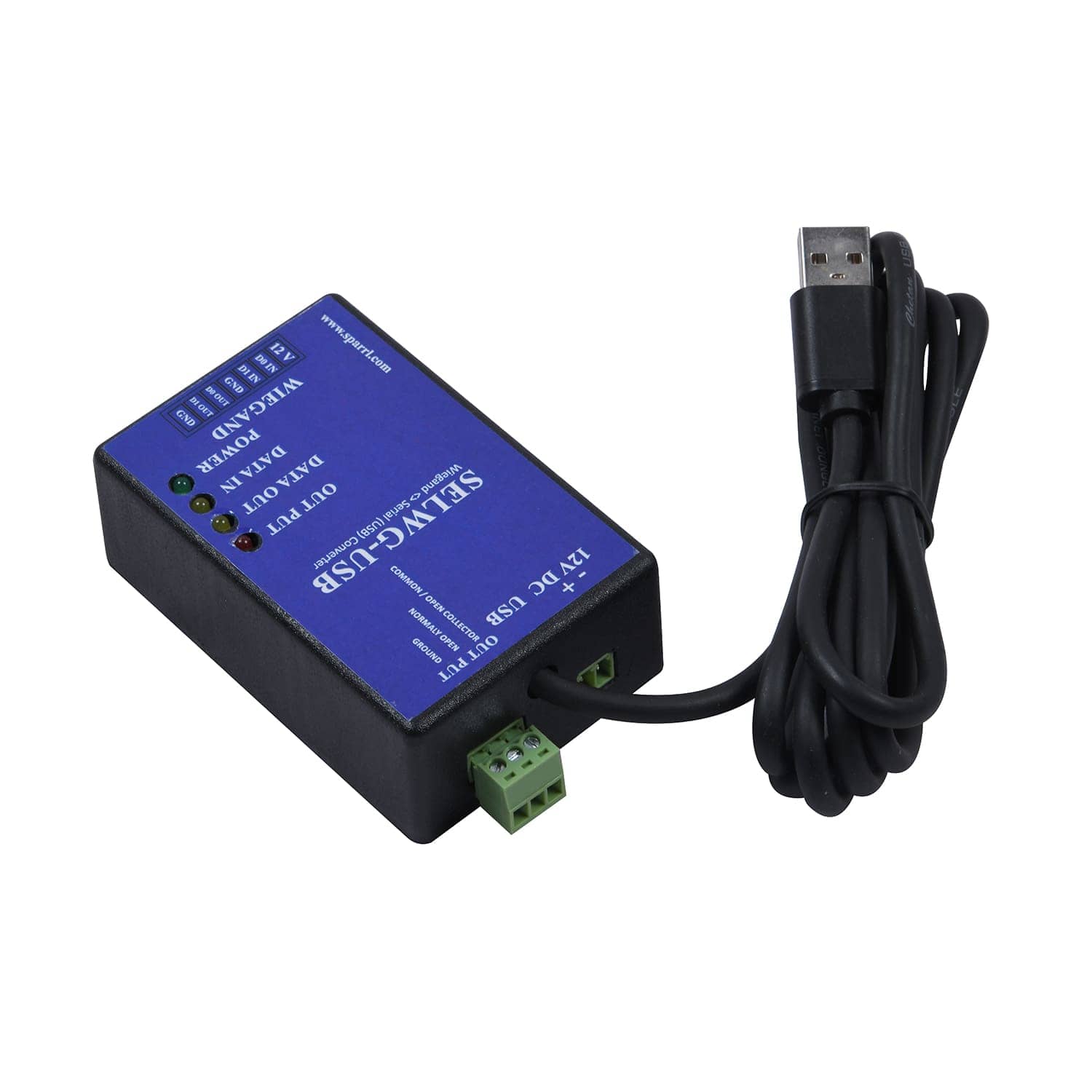

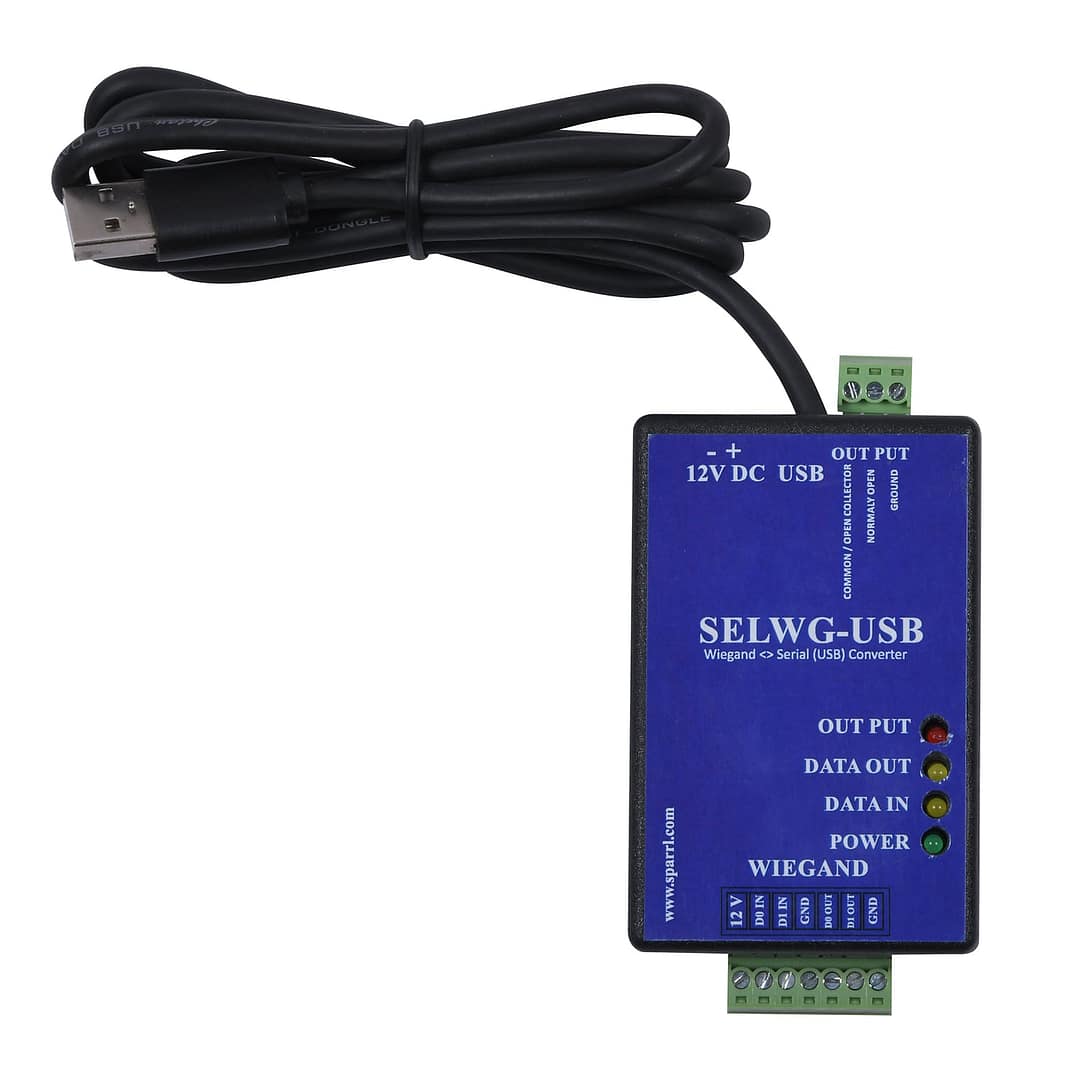

- Wiegand to RS 232 Converter product performs the function of
converting Wiegand data received from devices like HID readers to
standard RS 232 Serial Data Format for connection to systems which
does not have direct interfacing capability to Wiegand format data. - Supplied as a PCB or can be integrated with HID readers enclosed in a
convenient metal enclose. - SELWGS232 can receive Input voltage of 6 to 12 V DC and supply power
to the HID reader or device which needs power, there by offering a ready
to use integrated solution.
Specifications
| Name | Specifications |
|---|---|
| Serial Interface | |
| Interface | RS 232 & Wiegand |
| Connector | DB 9 Female for RS232, Screw type pluggable connector for power / wiegand |
| Baud | 9600 |
| Data | 8 bits |
| Parity | No Parity |
| Stop Bits | 1 |
| Data Format | Configurable |
| Supports | HID reader model “ProxPoint Plus 6500”, “I Class” |
| Wiegand | Customizable to support other formats |
| Indicators (LED) | |
| Data Read | Green |
| Standby | LED Blinking |
| Power | |
| Input | 7 to 12 V DC |
| Consumption Max | 10 mA |
| Environmental | |
| Operating | 0 oC to 55 oC |
| Storage | -40 oC to 85 oC |
| Packaging | |
| Dimensions (LxWxH) | 83.5 mm(L) x 53 mm(W) x 30 mm(H) for Box Product |
| Weight | 105 g |
| Warranty | 12 Months for Box Product |
