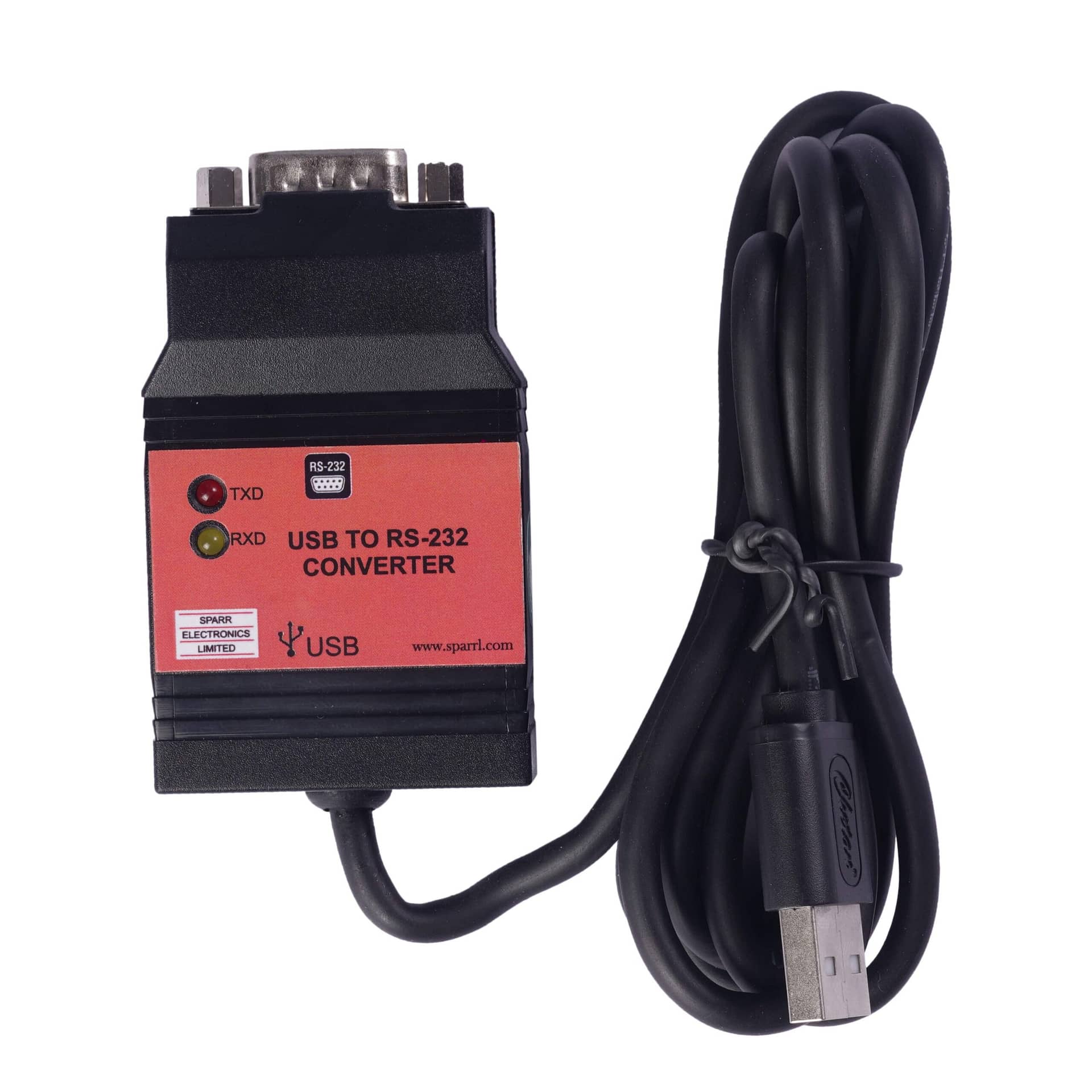

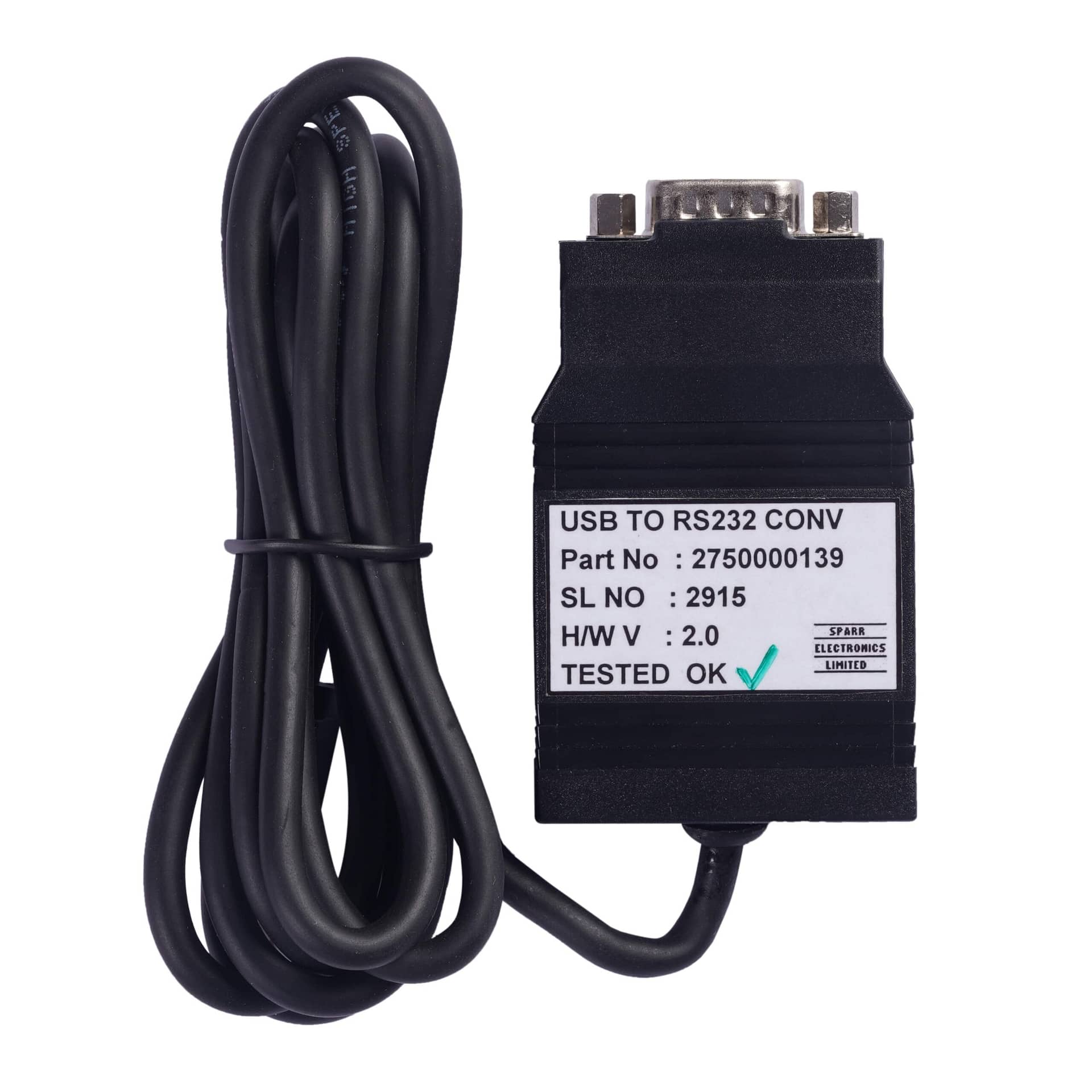

- USB 232 M is a product which connects to a PC’s USB port providing a high-speed Asynchronous RS 232 serial port for communication with RS 232 devices.

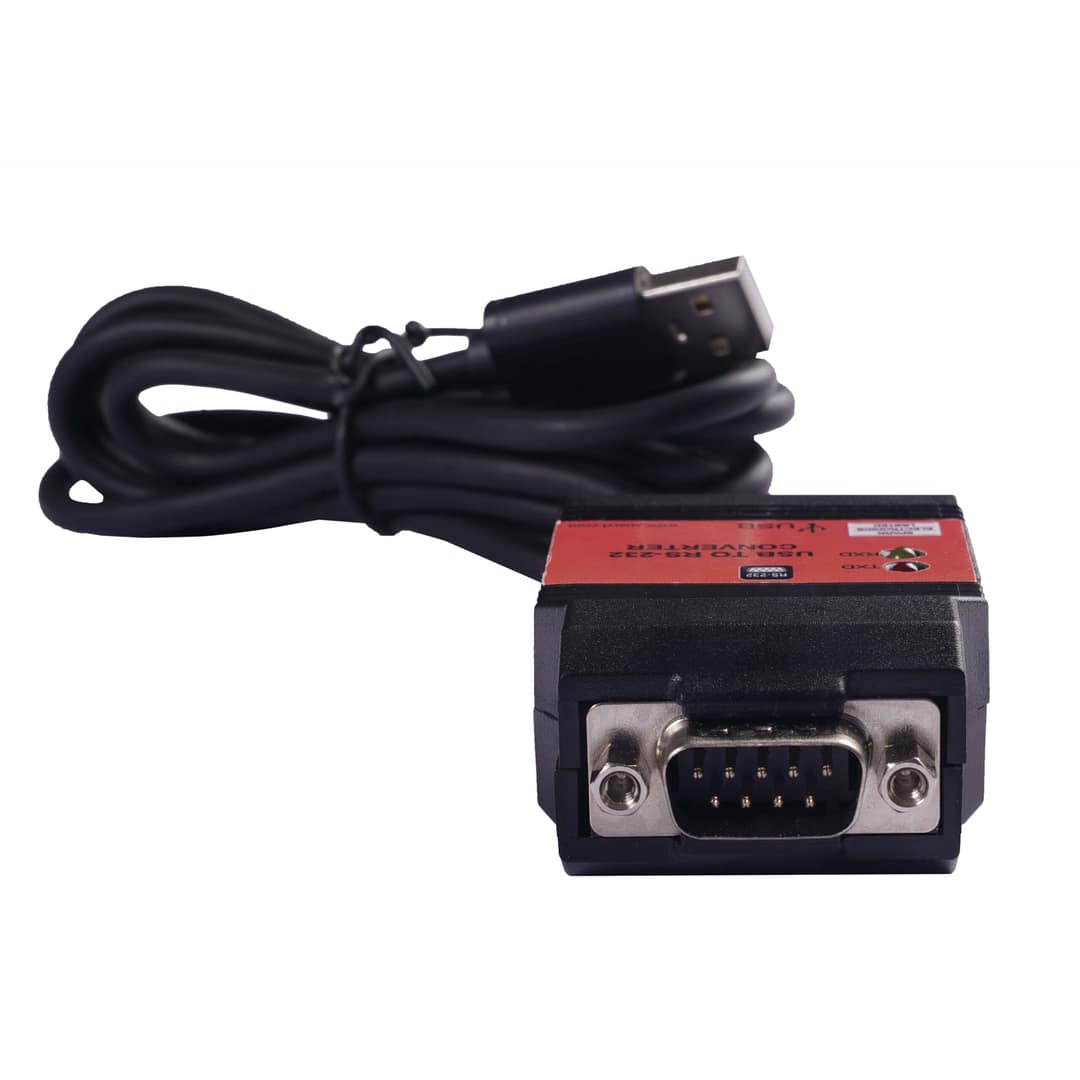

- The USB 232 M is provided with TxD/RxD LEDs for indicating communication status and supports a USB 232 M maximum speed up to 500Kbps. RS 232 serial port is furnished with a 9 pin D-type male connector similar to one found on the back of a PC. When the device is connected to PC’s USB port, the USB 232 M is automatically detected and is installed as a native COM port, compatible with existing serial communication applications. Users can add/remove this device once plugged into the USB port of the PC since this appears as a COM port.
- The Serial interface consists of two data signals – TxD (Transmit) and RxD (Receive) as well as six control signals – RTS, CTS, DSR, DTR, DCD and RI. The serial interface supports RTS/CTS, DSR/DTR and X-on/X-off handshaking.
- The product is programmable to support a variety of data formats and baud rates.
Specifications
| Name | Specifications |
|---|---|
| Interface | |
| Serial | RS 232 C |
| USB | USB V 1.1 & 2.0 Compatible |
| Connectors | |
| Serial | DB 9 pin Male as DTE |
| USB | Type A 4 pin Plug |
| Serial | |
| Baud Rate | Upto 500 Kbps |
| Data Bits | 7 or 8 |
| Parity | None, Even, Odd, Mark, Space |
| Stop Bits | 1 or 2 |
| Flow Controls | Hardware (RTS/CTS) / Software (X-on / X-off) Handshaking supported |
| Supported OS | Windows XP, XP - 64 bit, XP - Embedded, Vista, Visa - 64 bit, CE 4.2 / 5.0 / 6.0, Windows 7,Windows 2000, Server 2003, Server 2008, MAC OS 8 / 9, OS - X, Linux 2.4 and greater. |
| Software Driver | Plug and Play for most operating systems |
| Support | Full Standard RS 232 serial interface signals |
| Indicators (LED) | |
| Transmit Data (TxD) | Red |
| Receive Data (RxD) | Green |
| Power | |
| Input | USB port powered |
| Packaging | |
| Dimensions (LxWxH) | 72mm(L) x 43mm(W) x 21mm(H) |
| Weight | 70g |
| Warranty | 12 Months |
