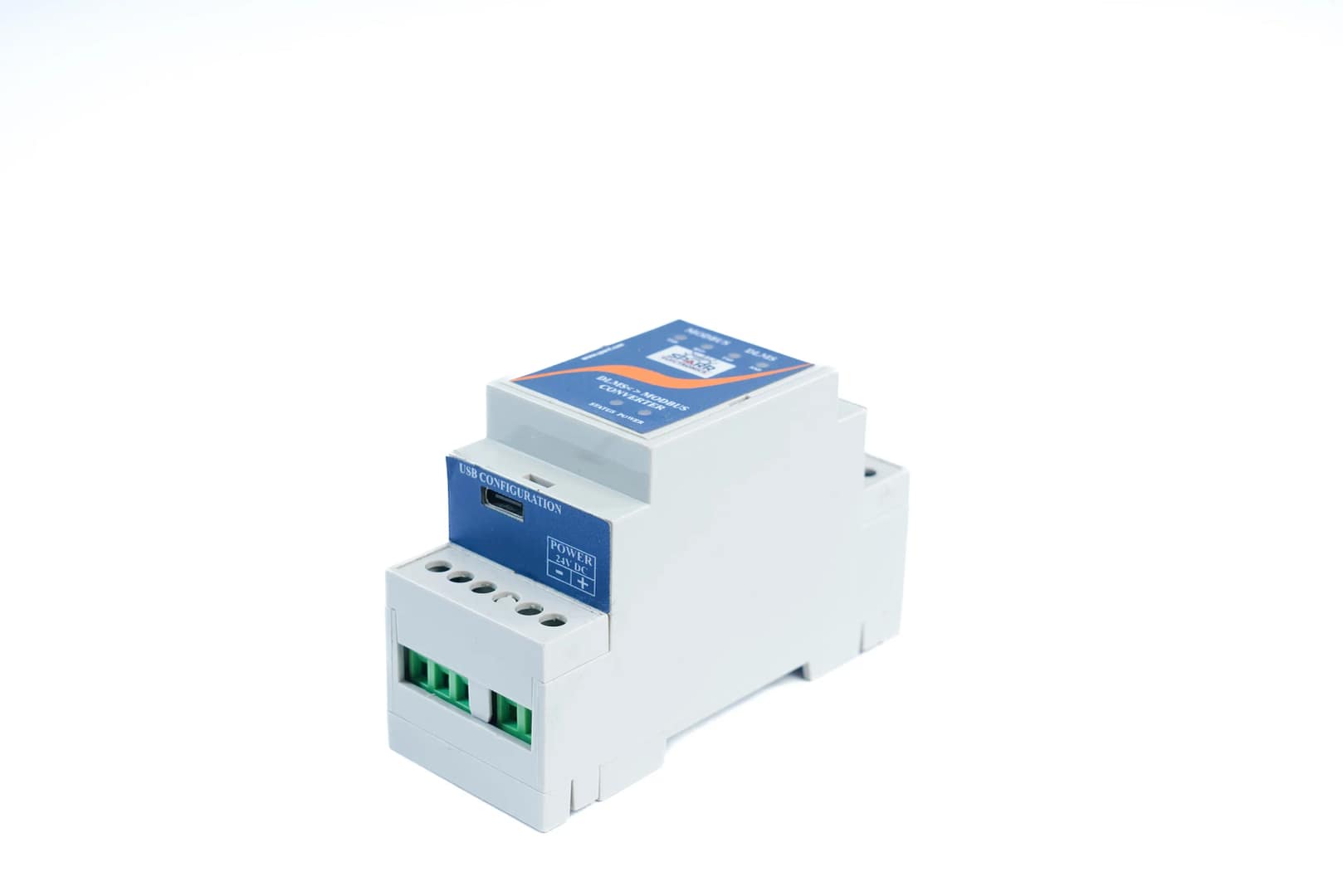

DLMS to Modbus RTU / TCP Converter

Features

The DLMS to Modbus Converter is a smart communication device that provides seamless integration between DLMS energy meters and Modbus-based devices such as PLCs and SCADA. It simplifies data exchange by converting DLMS parameters into Modbus registers for real-time monitoring and control.
It reads electrical parameters from DLMS meters through RS232 and converts them into Modbus RTU/TCP registers that can be directly accessed by industrial controllers.
The converter automatically maps selected OBIS codes (from the DLMS meter) to Modbus holding registers, allowing real-time monitoring of voltage, current, frequency, power, and energy data.
It simplifies communication between utility-grade DLMS meters and industrial automation systems.

Specifications

Interface	USB 2.0, RS 485
Baud Rate	9600 to 115200 bps
Parity	None

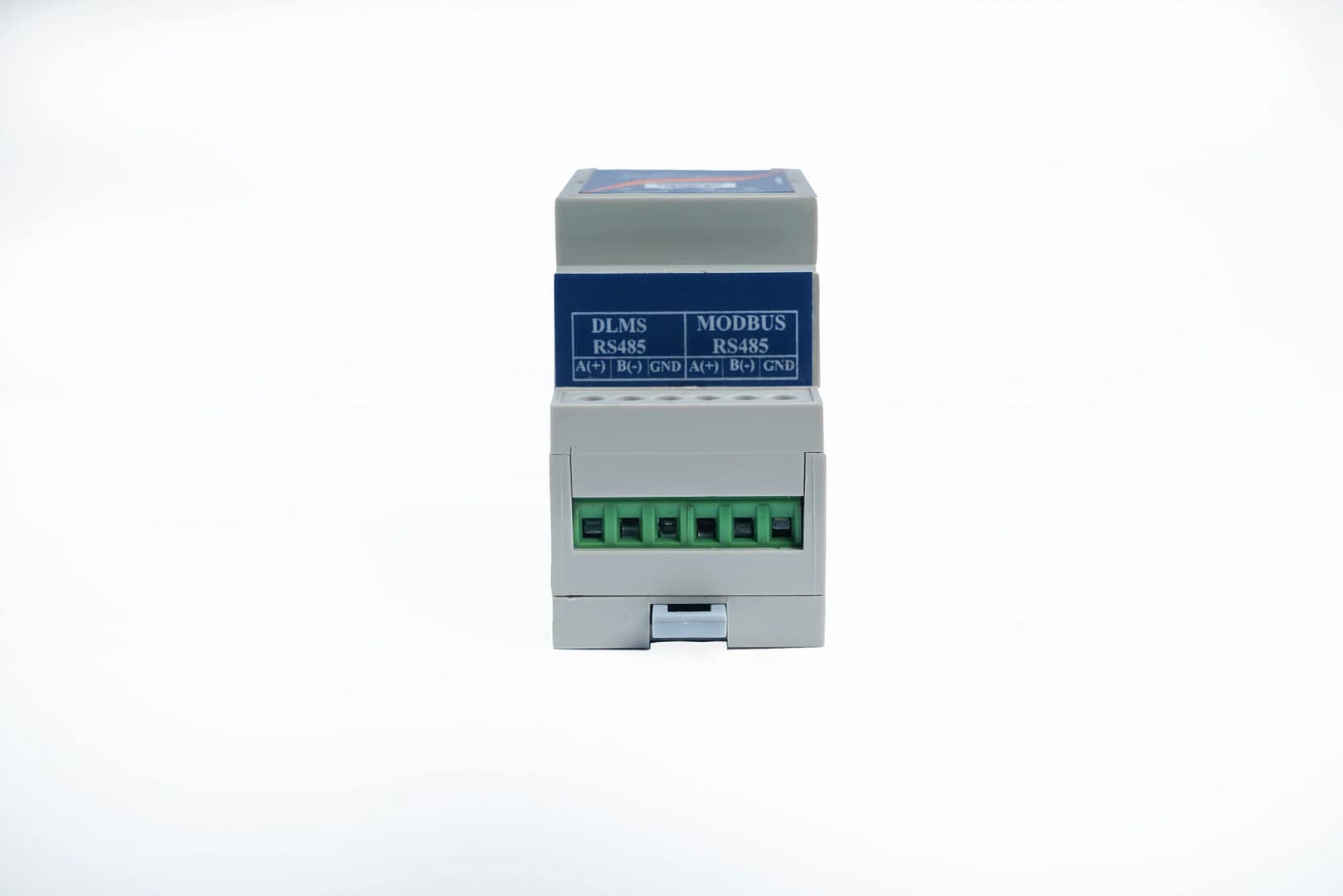

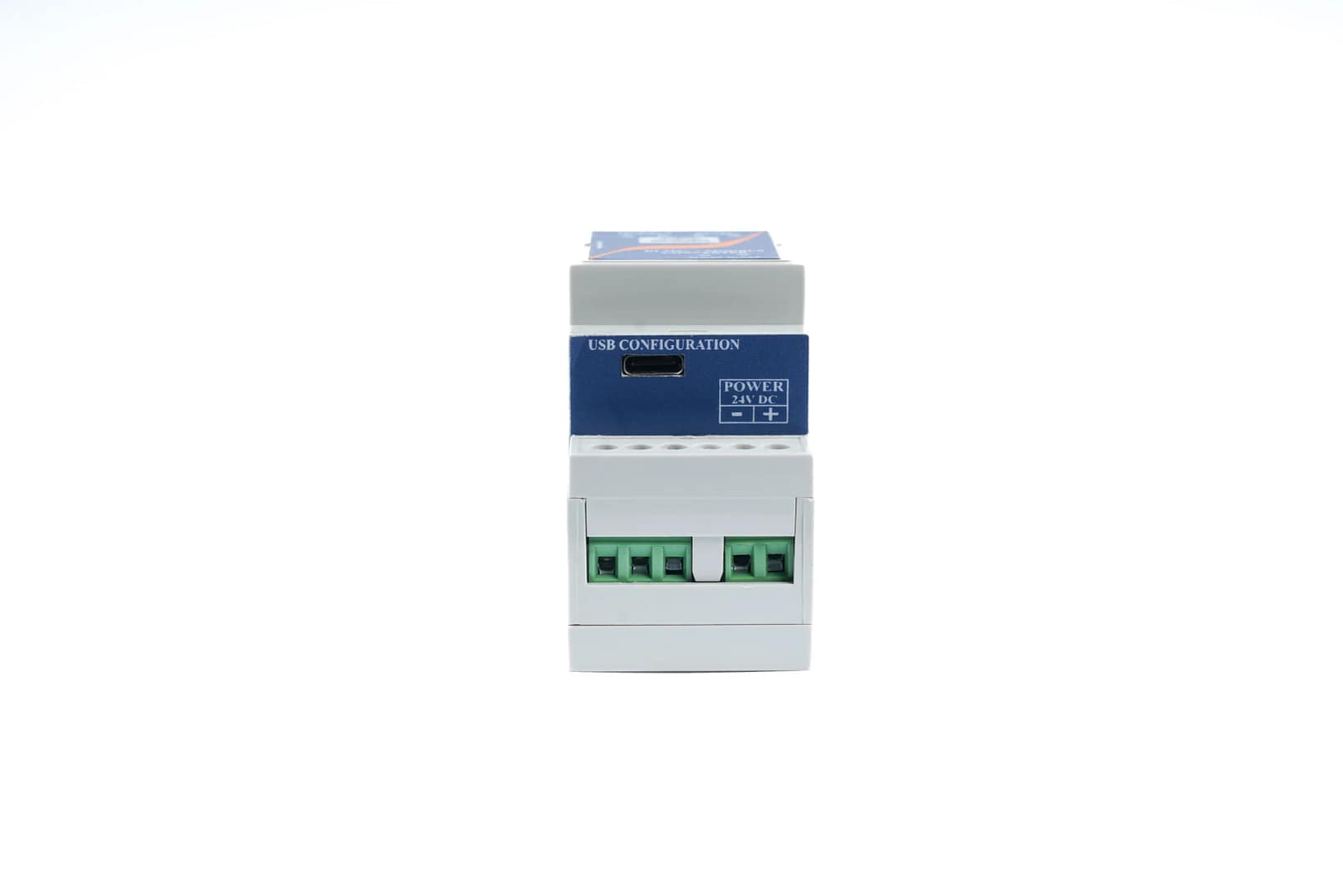

Connector	3 way screw terminal for RS485, DLMS (RS485), Type C for USB & 2 way screw terminal for power
Nodes	up to 32 on MODBUS
Cable length	1200 meters maximum for RS 485
Isolation	2500 Vrms between RS485 & AC Power
Protocols	Modbus, DLMS

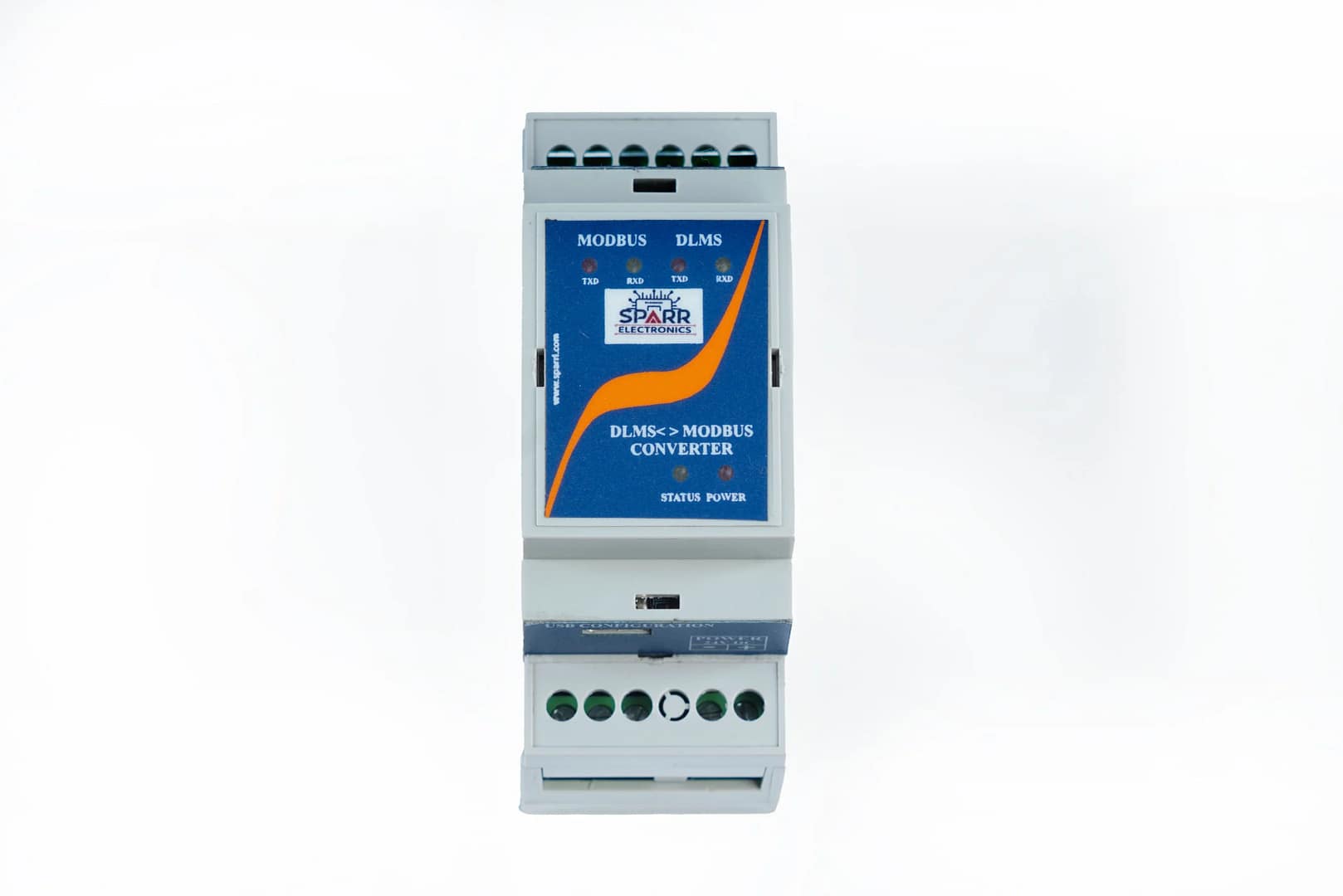

Red	Power
Yellow	Status
Red	Transmit Data (TDX)
Yellow	Receive Data (RDX)
Input Voltage	90-265 Vac
Current	15 mA at 230 Vac
Operating	0 °C to 65 °C
Storage	0 °C to 75 °C
Dimensions	90 mm (L) x 36 mm (W) x 57 mm (H)
Weight	75 g
Warranty	12 Months
Mounting	35 mm DIN Rail, Table top

Resources

Part Numbers

Part Number	Part Name	Part Description	Contact
2770015734	DLMS <> MODBUS CONVERTER	Converter	Know More

DLMS to Modbus Converter
