- The Modbus to BACnet MS/TP converter enables seamless integration of Modbus devices with BACnet MS/TP networks.
- Both protocols are widely used in industrial and building automation systems.
- Allows the integration of Modbus-based devices — such as energy meters, sensors, and controllers — into BACnet-based systems.
- Compact and operates over a wide input voltage range.
- Supports high-speed baud rates up to 115200 bps and can be easily configured via a USB serial interface.
- Enclosed in a 35mm DIN rail-mountable enclosure, making it small and space-efficient.

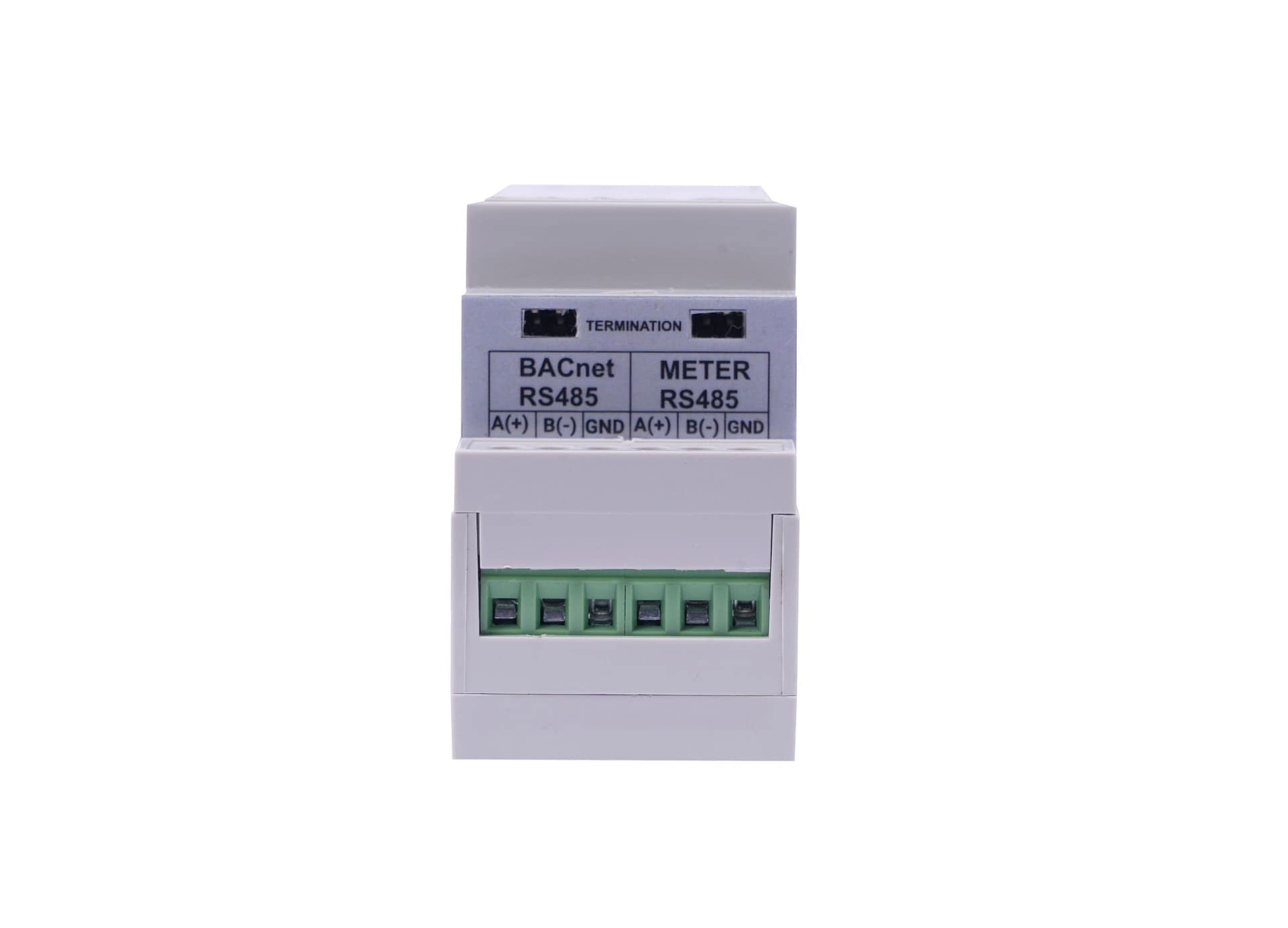

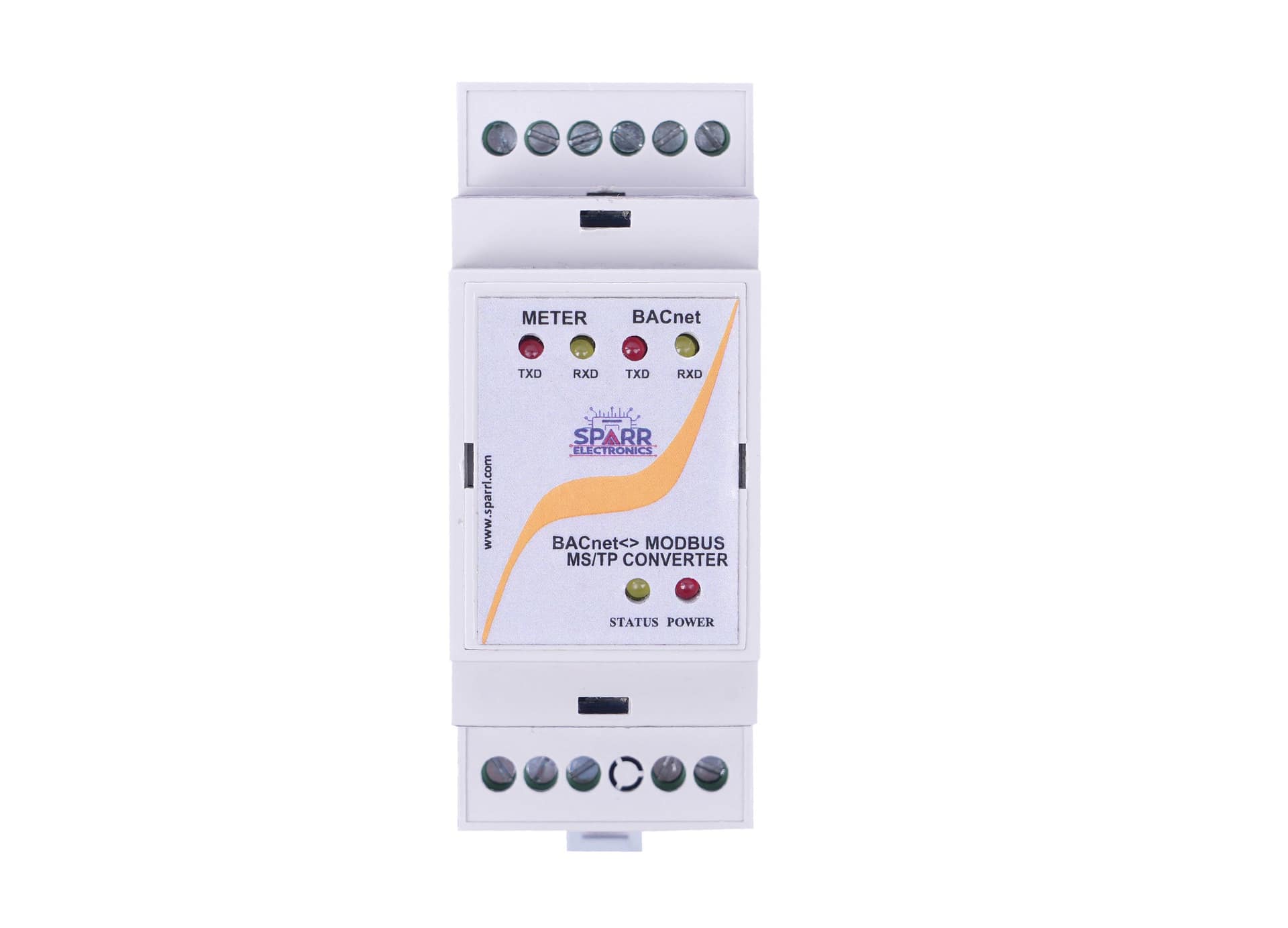

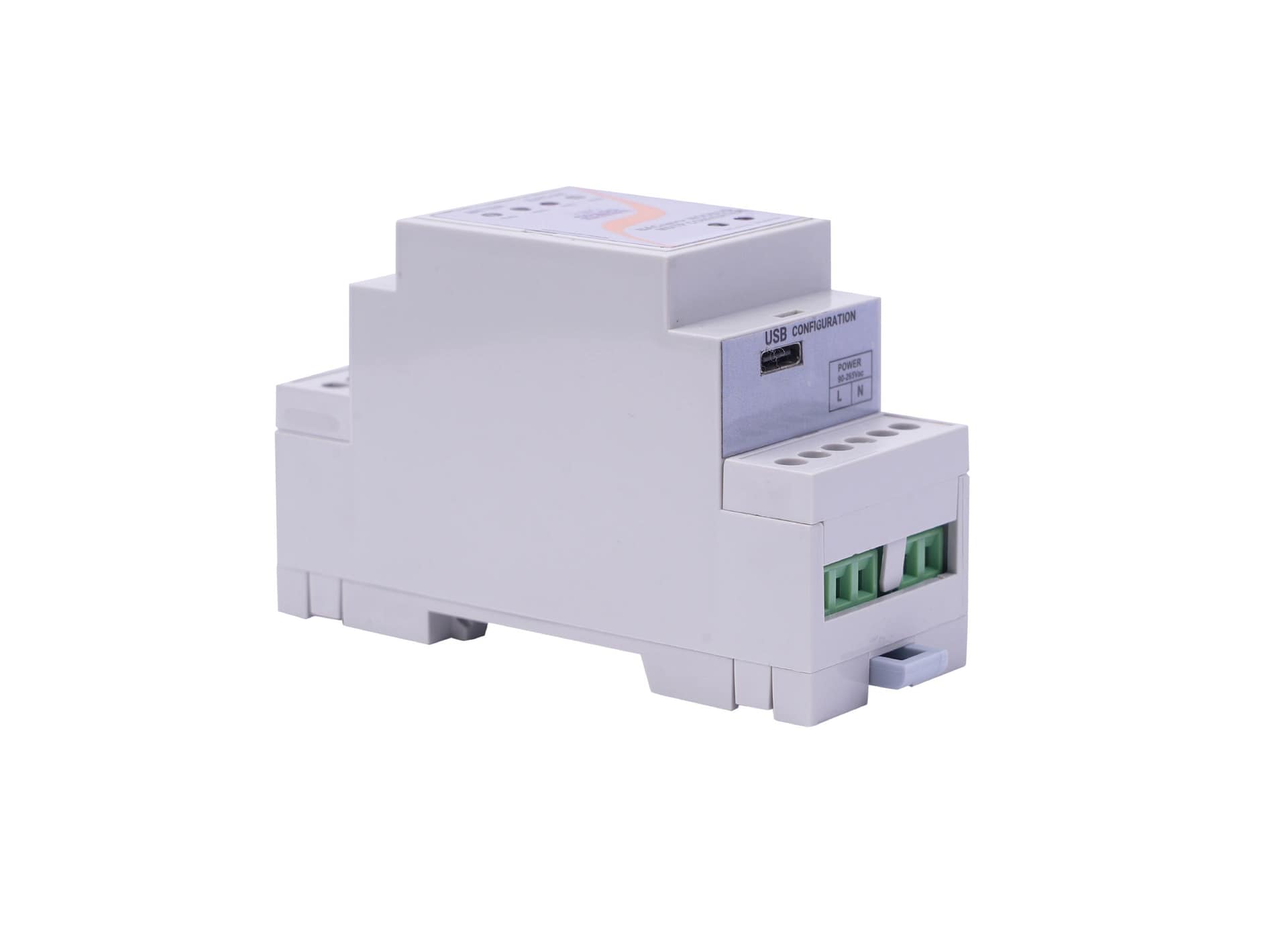

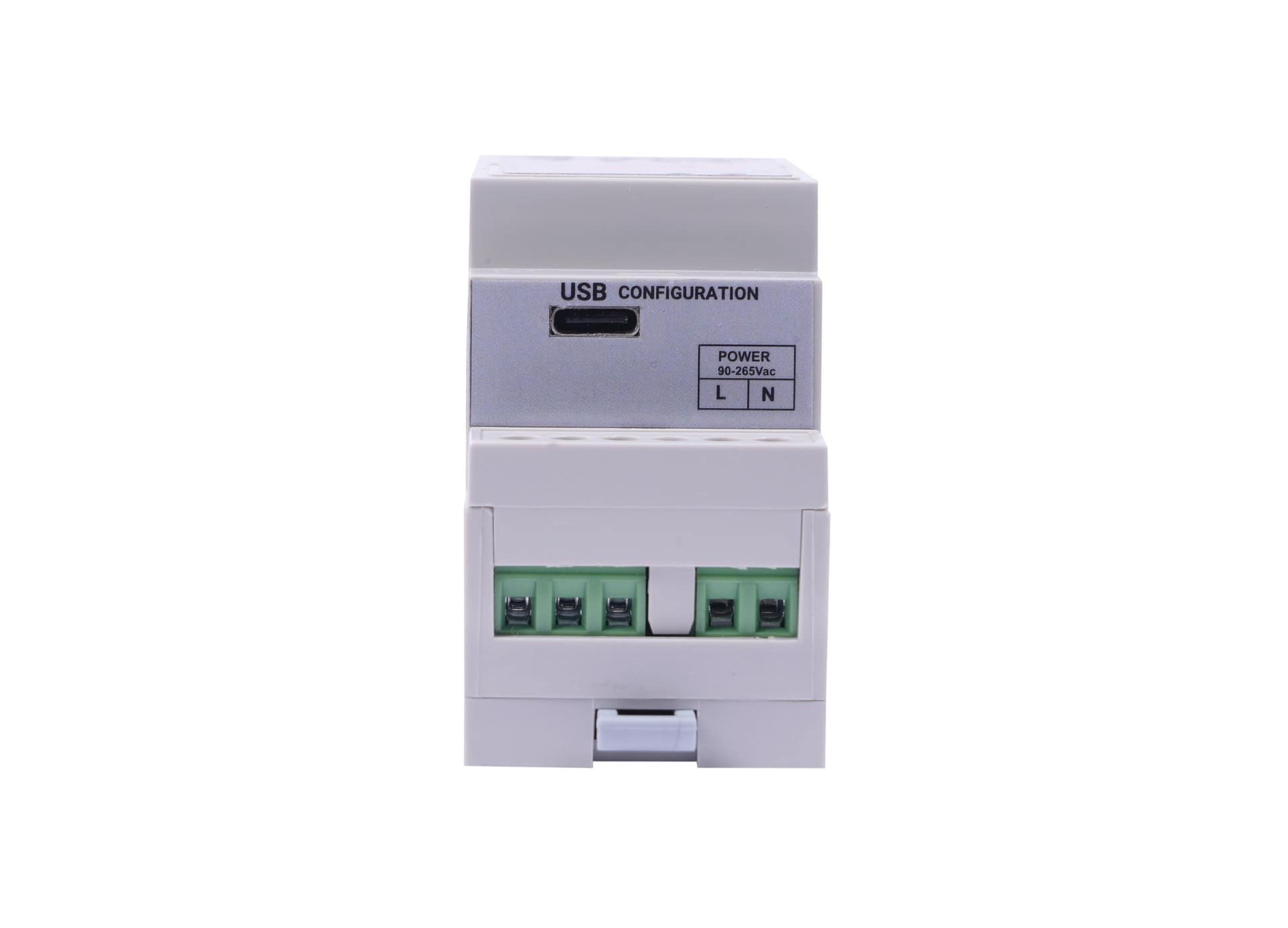

Modbus<> BACnet MS/TP converter
Features
Specifications
| Interface | Type C for USB 2.0, RS 485 |
| Baud Rate | 9600 to 115200 bps |
| Parity | None |
| Nodes | up to 32 |
| Cable length | 1200 meters maximum for RS 485 |
| Maximum Master | 0 to 127 |
| Connector | 3 way screw terminal |
| Protocols | Modbus, BACnet |
| Management | USB |
| Red | Power |
| Yellow | Status |
| Red | Transmit Data (TDX) |
| Yellow | Receive Data (RDX) |
| Input Voltage | 230 V AC |
| Operating | 0 °C to 65 °C |
| Storage | 0 °C to 75 °C |
| Dimensions | 90 mm (L) x 36 mm (W) x 57 mm (H) |
| Weight | 75 g |
| Warranty | 12 Months |
