- Smart RS232 to RS 485 Converter. Users can easily get RS232 Serial data in their MODBUS RS485 network.
- Isolated RS485 port gives protection to the unit and the connected RS232 device from the RS485 network.
- Enables reliable long-distance communication.
- Baud Rate and other RS232 / RS485 port parameters are set by writing into Modbus Registers.

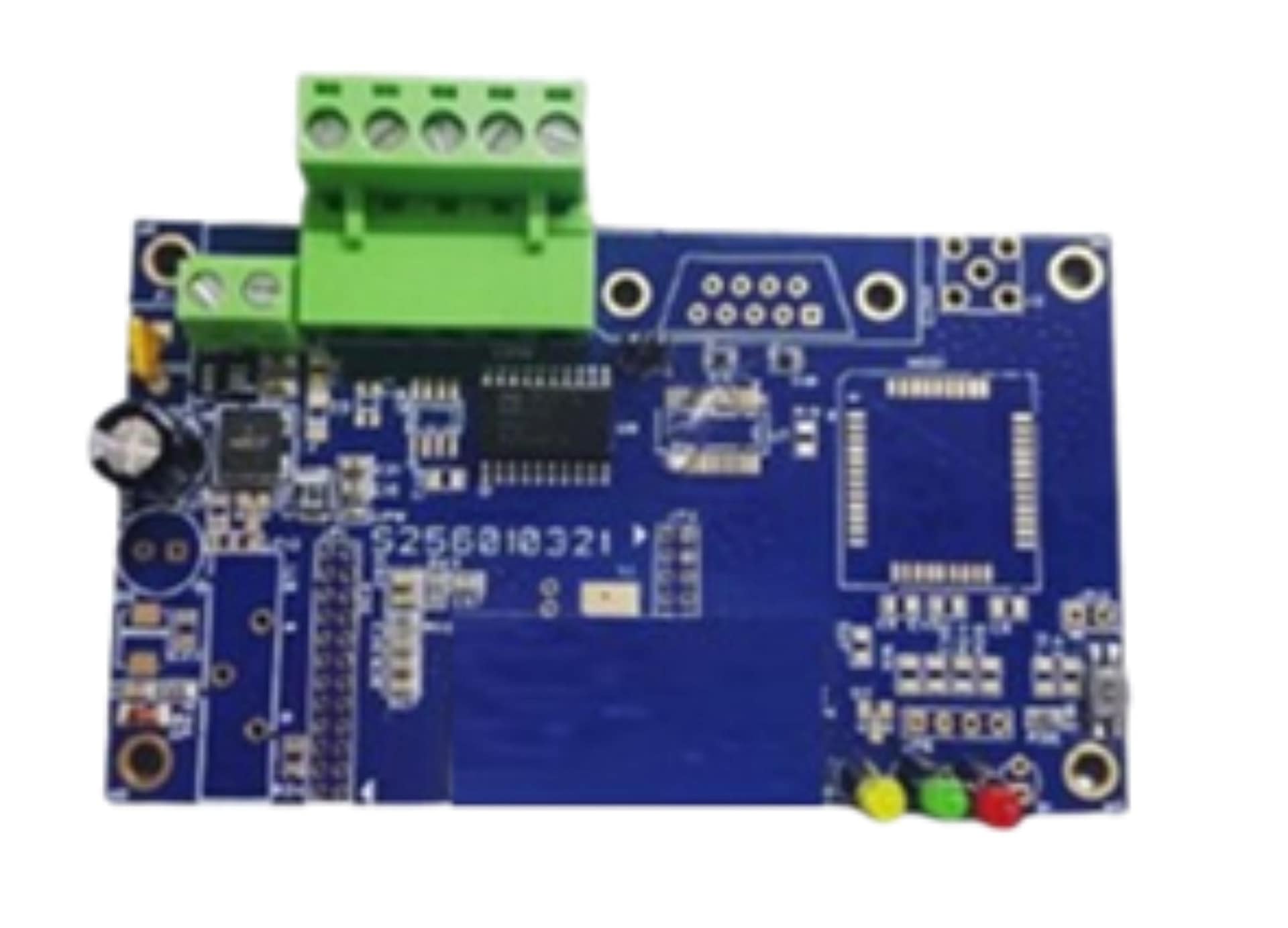

Smart RS232 To RS 485 Converter
Features
Specifications
| Interface | RS232 TTL (UART) |
| Connectors | Screw Type Plug in Connector for RS485 |
| Data Rates | 1200 to 115200 bps |
| Data Bits | 7 or 8 |
| Parity | Odd, Even & No Parity |
| Stop Bits | 1 or 2 |
| LED - Yellow | Receive Data (RxD) |
| LED - Green | Transmit Data (TxD) |
| LED - Red | Power ON |
| Power Input | 8-24 VDC. 12V 1A External Adaptor Provided |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 66°C |
| Dimensions (LxWxH) | 95mm(L) x 66mm(W) x 18mm(H) |
| Weight | 32g |
| Warranty | 6 Months |
Part Numbers
| Part Number | Part Name | Part Description | Contact |
|---|---|---|---|
| 2765002940 | Smart RS232 to RS 485 Converter | Board level with 12V Adaptor | Know More |
