- Smart RS232 to Modbus TCP Converter — users can easily get RS232 serial data onto their Modbus TCP/IP network.
- The Modbus TCP interface ensures reliable communication and easy access to serial data over long distances.
- Enables reliable long-distance communication.
- All RS232 parameters, including baud rate, data bits, stop bits, and parity, can be configured through Modbus registers or via the web interface.

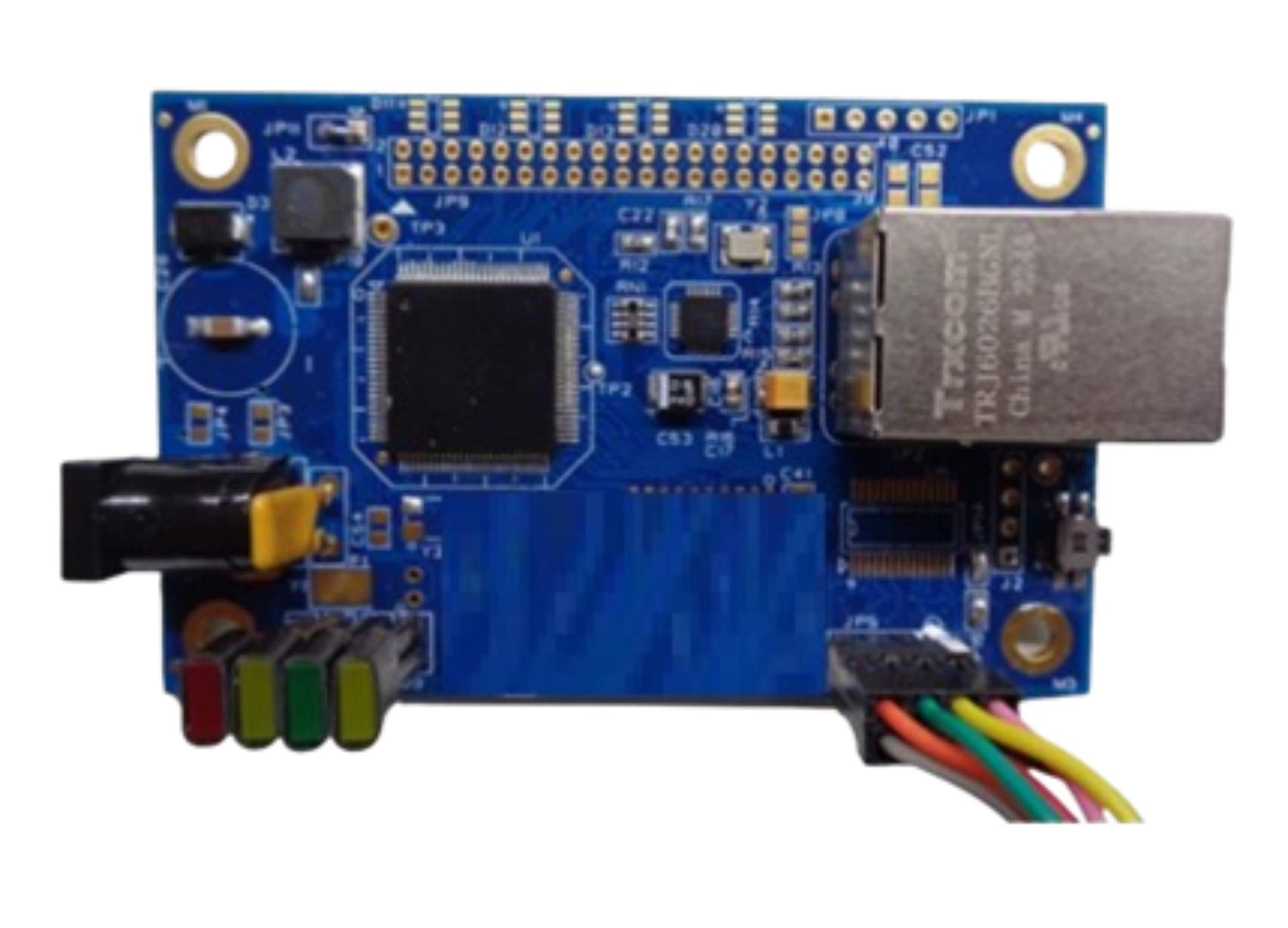

Smart RS232 To MODBUS TCP Converter-B TTL
Features
Specifications
| Interface | RS232 |
| Data Rates | 300 to 115200 bps |
| Data Bits | 7 or 8 |
| Parity | Odd, Even & No Parity |
| Stop Bits | 1 or 2 |
| Network Interface | Ethernet 10 Base-T or 100 Base-TX Connector |
| Connectors | RJ 45 Female |
| Protocols | Modbus TCP/IP, TCP/UDP, Telnet, DHCP, HTTP |
| Red | Power ON |
| Yellow | Connection Status |
| Green | Transmit Data |
| Yellow | Receive Data |
| Input | 8-24 V DC, 12 V |
| Operating | 0 °C to 55 °C |
| Storage | -40 °C to 66 °C |
| Dimensions | 79 mm (L) x 50 mm (W) x 18 mm (H) |
| Weight | 30 g |
| Warranty | 6 Months |
