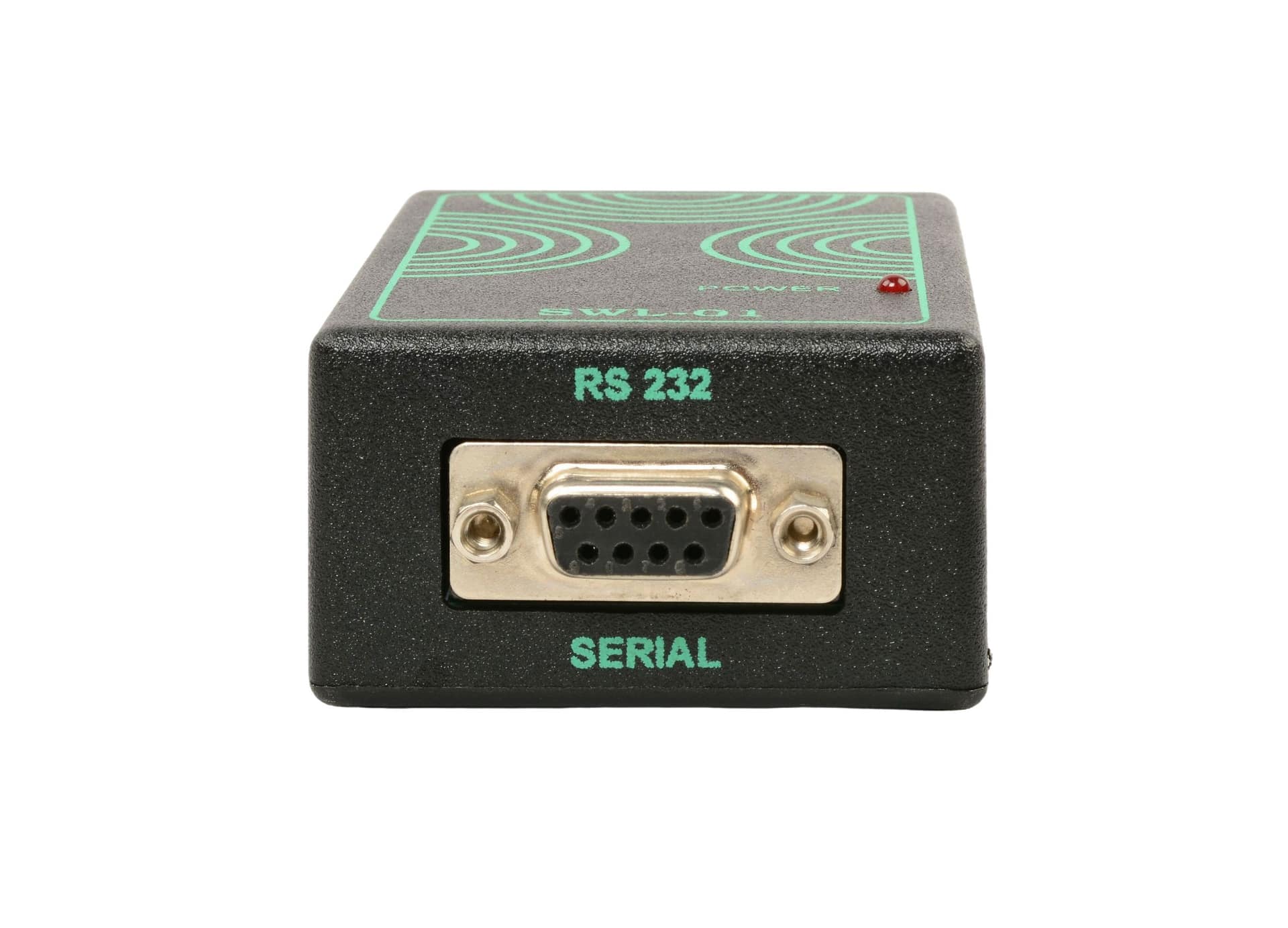

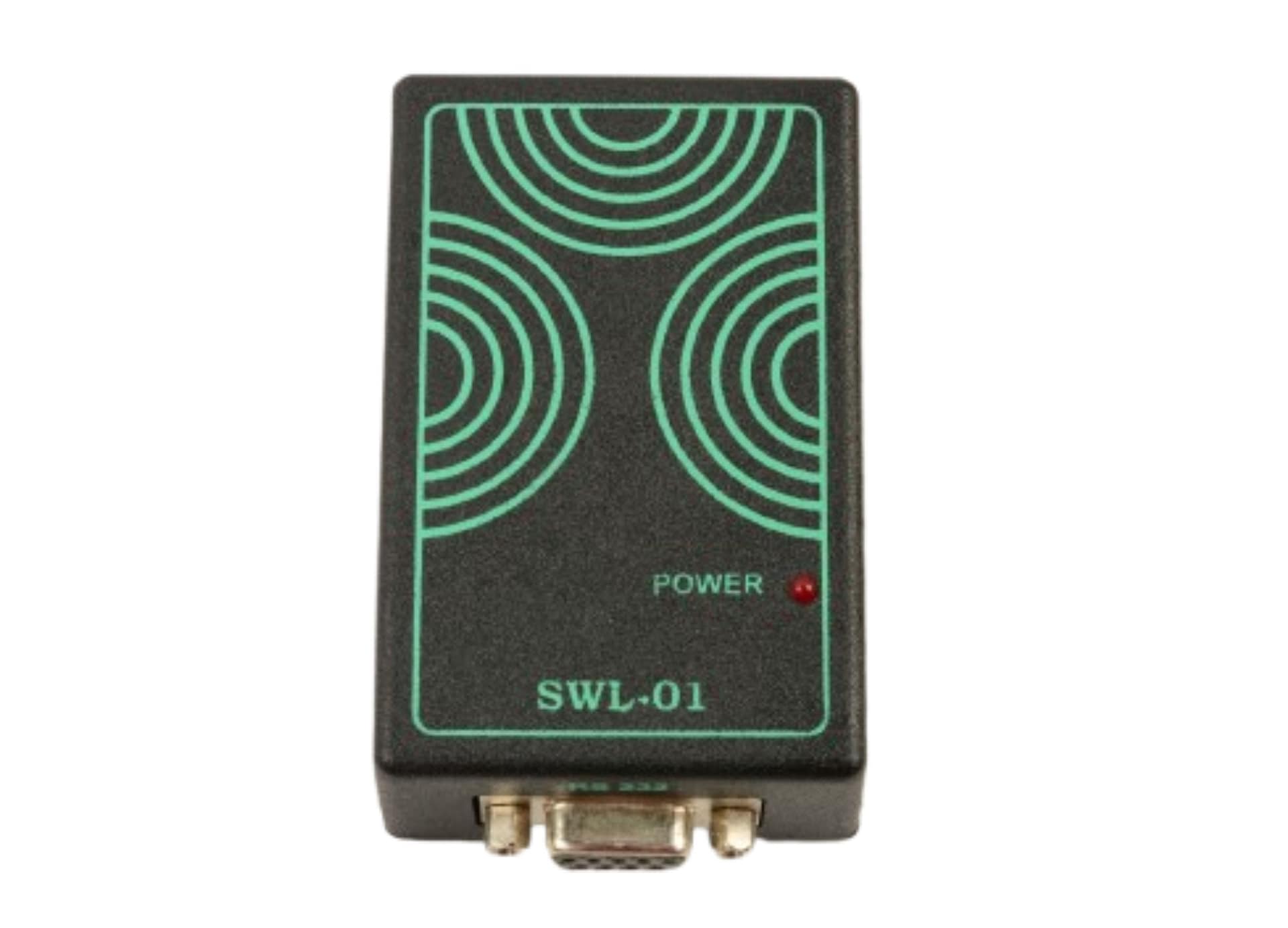

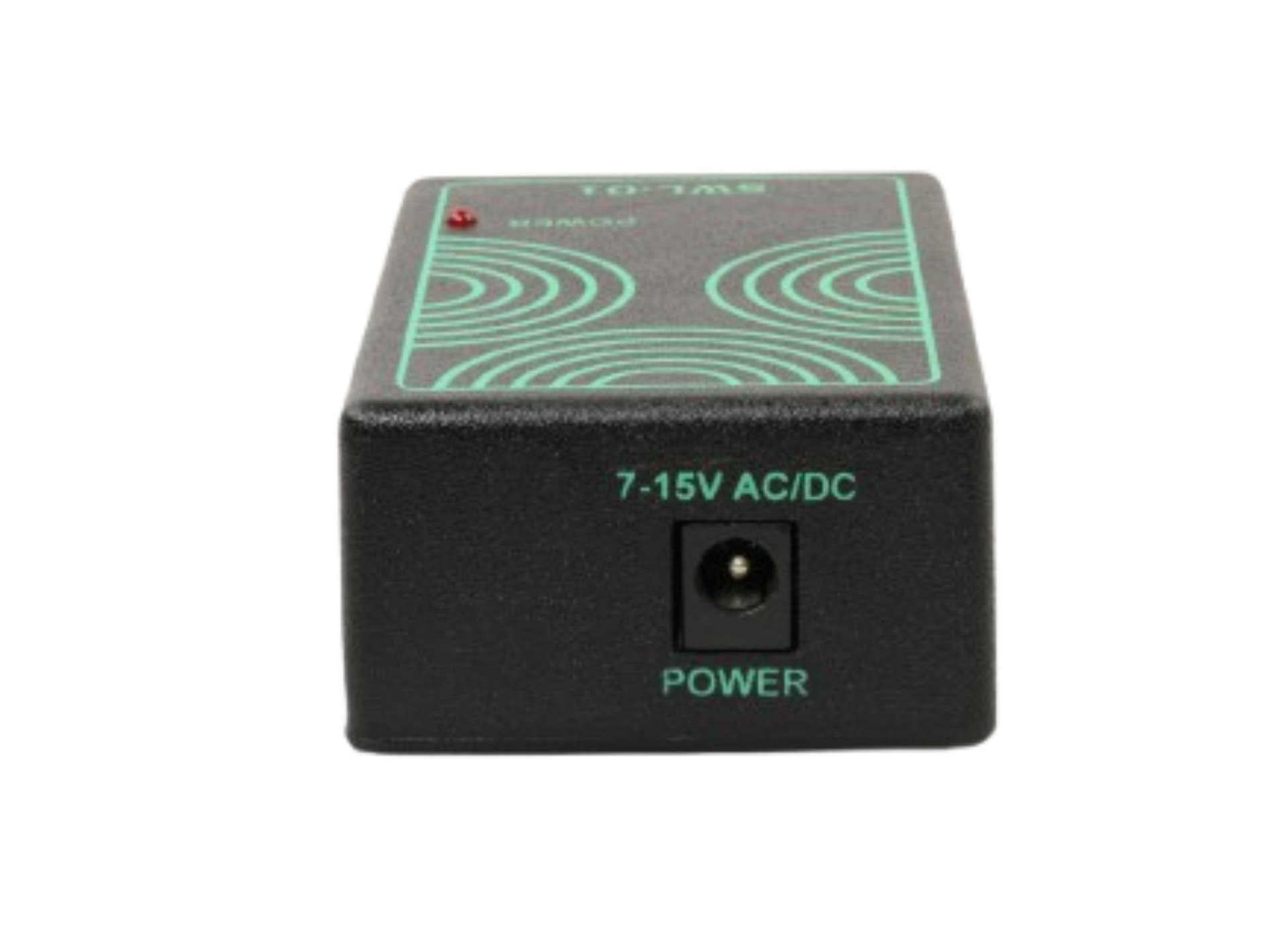

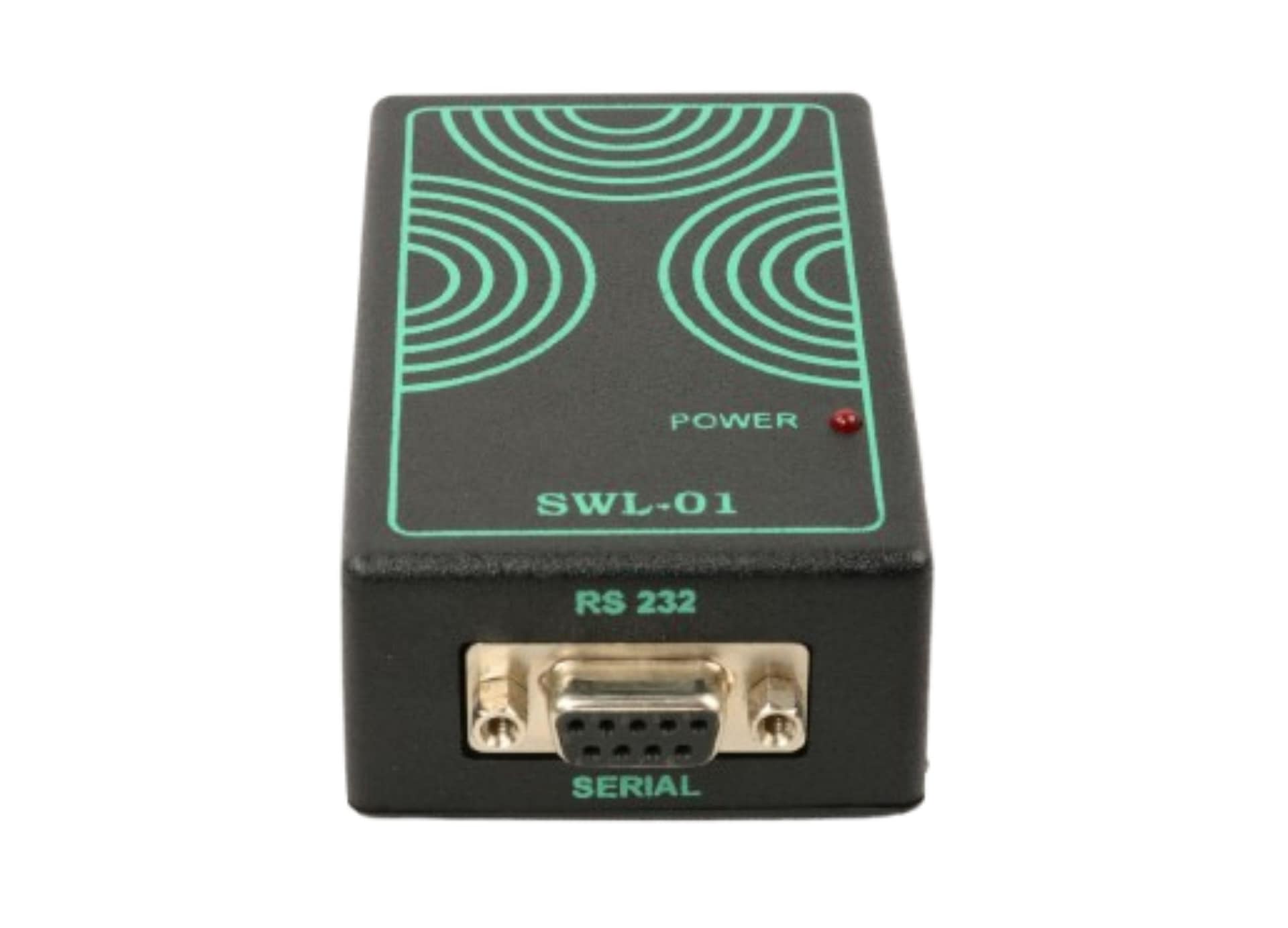

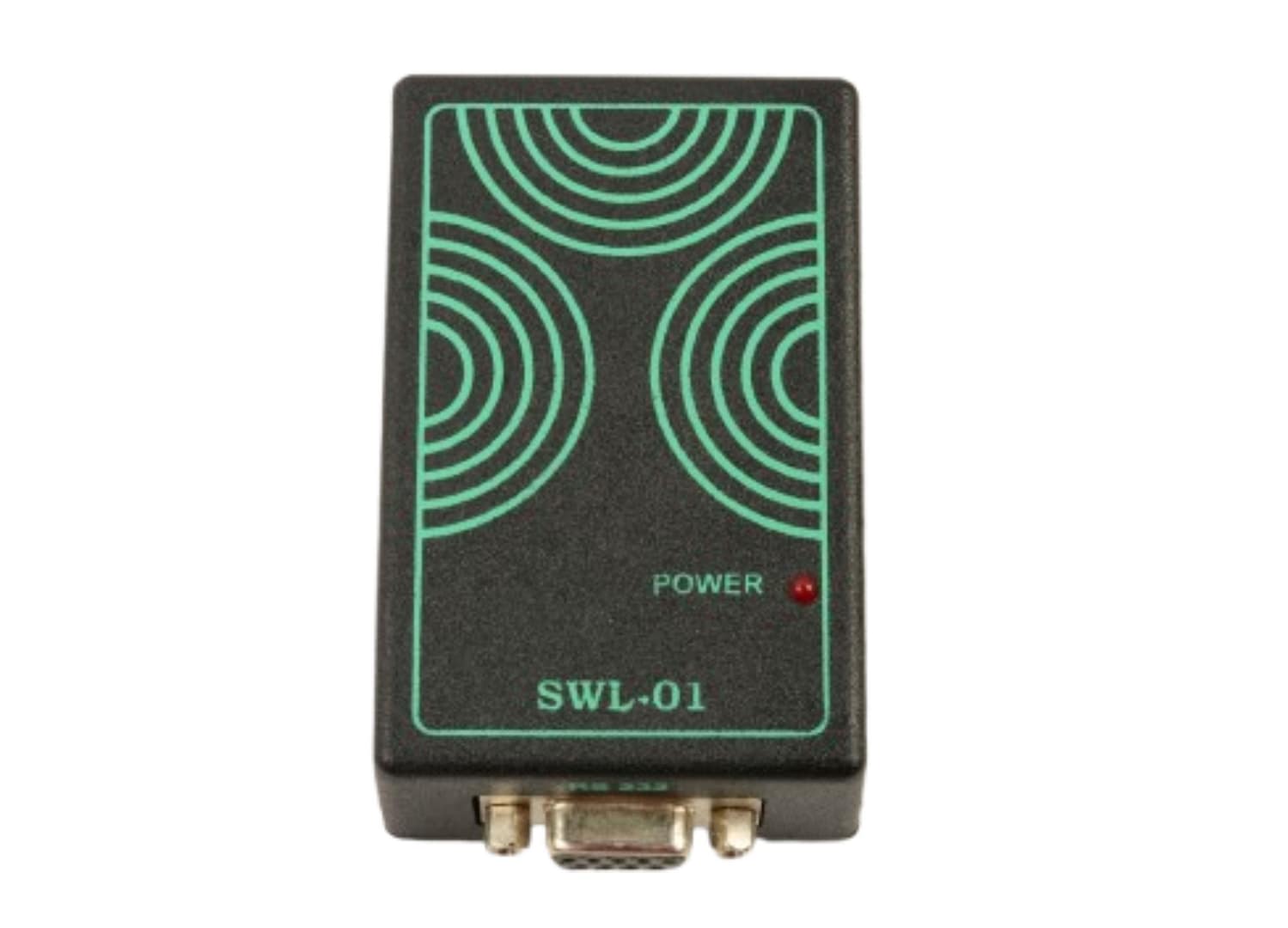

Serial to Wireless Converter SWL-01 - 2.4GHz

Features

The SWL-01 enables wireless transmission of RS-232 serial data over distances of up to 100 metres.
Can be configured as a serial cable replacement in a point-to-point setup, or in a master-slave configuration for networking multiple devices.
SWL-01 operates within the ISM 2.4GHz frequency band.
Ideal for integrating wireless functionality into devices with a serial data interface.
Operates with low power consumption while ensuring reliable data transmission between devices.

Specifications

Interface	RS 232
Connector	9 Pin Female D-Type
Baud Rate	1200 to 115200 bps
Data Bits	7 or 8
Parity	No Parity
Stop Bits	1
Flow Control	None & RTS/CTS
Protocols	Direct Sequence Spread Spectrum
Topology	Point to Point
Red	Power ON
Green	Status
Input	8 to 30 V AC or DC
Operating	0 °C to 55 °C
Storage	-4 °C to 66 °C
Dimensions	80 mm (L) x 50 mm (W) x 30 mm (H)
Weight	50 g
Warranty	12 Months

Resources

Part Numbers

Part Number	Part Name	Part Description	Contact
1491000364	SWL-01B-PB	Converter with 12V adaptor	Know More
